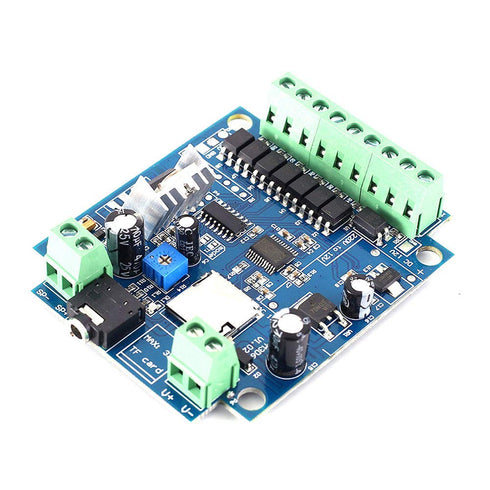

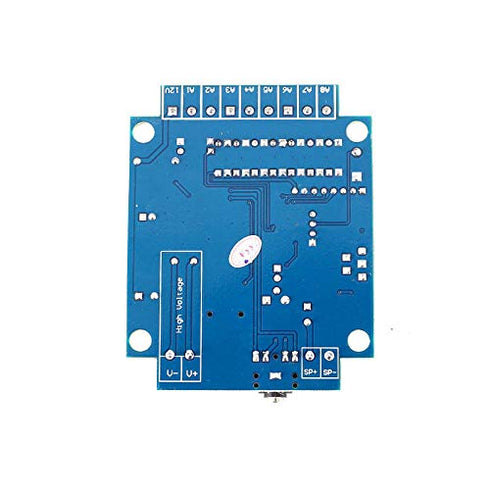

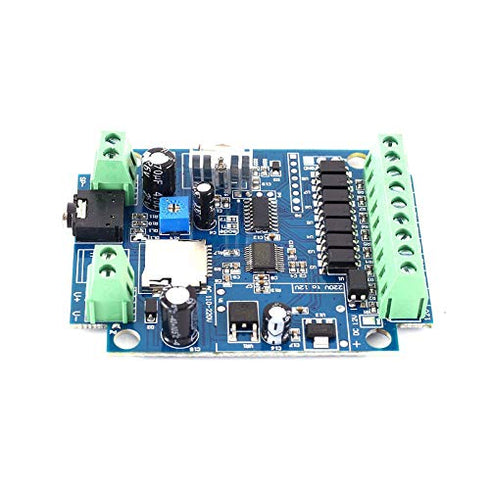

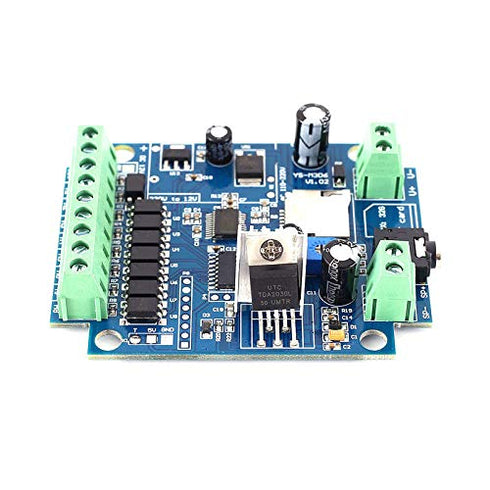

Lufasa MP3 12V 12W 4ohm 8ohm 8 Voice Player Module DC Power Amplifier Module Voice Module Music Alarm Prompter Trigger

MP3 Voice Player Module DC 12V 12W Power Amplifier Module 4ohm 8ohm Voice Module 8 Music Alarm Prompter Trigger Multi Mode

Lufasa MP3 12V 12W 4ohm 8ohm 8 Voice Player Module DC Power Amplifier Module Voice Module Music Alarm Prompter Trigger

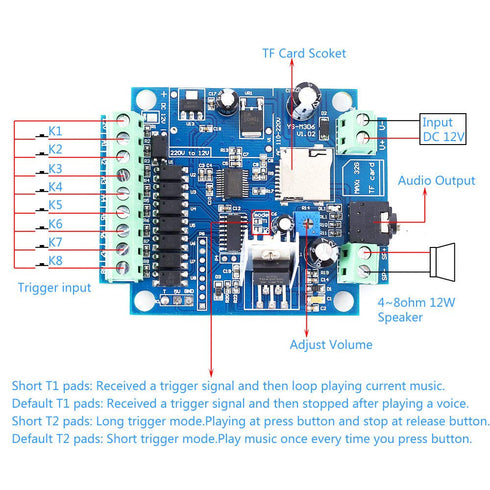

1. Descriptions: FY-M3D6 is a trigger control voice play module.It can play 8 musics by A1~A8 high level trigger input terminal.Built-in 12W power amplifier module, so it can directly connect 4ohm~8ohm speakers.It can be widely used in production workshops, intelligent control, etc. 2.Feature: 1>.Adjustable volume 2>.Built-in amplifier 3>.Support FAT16/FAT32 file system 4>.Support single music loop playback 5>.Support three play modes 6>.Strict file naming rules 7>.Support 8 different music 3.Parameters: 1>.Model: FY-M3D6 2>.Work voltage: DC 12V 3>.Work current: >500mA 4>.Trigger terminal: 8 5>.Trigger signal:DC 5V~12V(High level trigger) 6>.Speaker internal resistance:4ohm~8ohm 7>.Speaker power: 12W(Max) 8>.Audio output: 3.5mm headphone jack 9>.Operating Temperature:-20~85 10>.Operating Humidity:5%~95%RH 11>.Size:82*65*24mm 4.Work Mode: 1>.Set play mode and trigger mode by jump cap at T1 and T2. 2>.Short T1 pads: Received a trigger signal and then loop playing current music. 3>.Default T1 pads: Received a trigger signal and then stopped after playing a voice. 4>.Short T2 pads: Long trigger mode.Playing when press button and stop when release button. 5>.Default T2 pads: Short trigger mode.Play music once every time you press the button. 6>.Play when power ON:Not supported by default.It needs connect trigger terminal to VCC if need enable play when power ON. 7>.Test: The module plays normally if user can hear the sound when connect A1 terminal to 12V by wire after complete connection. 5.File naming rules: 1>.Create a new folder in the root directory of the TF card and name it '01'. 2>.The name of the MP

Brand: Lufasa

module 4ohm, multi mode, 12w power, music, module music, home, alarm, lufasa, prompter trigger, power amplifier, amplifier module, music alarm Electronics Home Audio Home Theater Receivers & Amplifiers Amplifiers

Key Features

• ✓ MP3 Voice Player Module DC 12V 12W Power Amplifier Module 4ohm 8ohm Voice Module 8 Music Alarm Prompter Trigger Multi Mode
