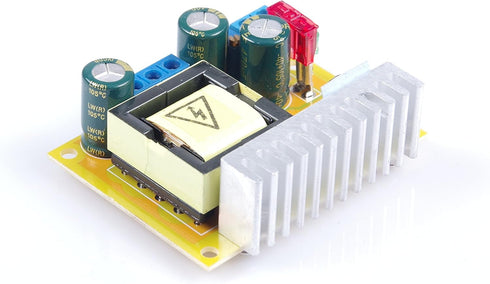

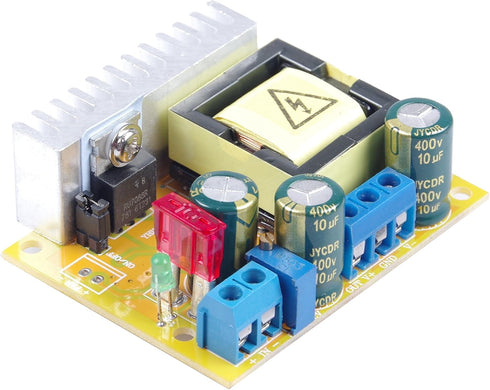

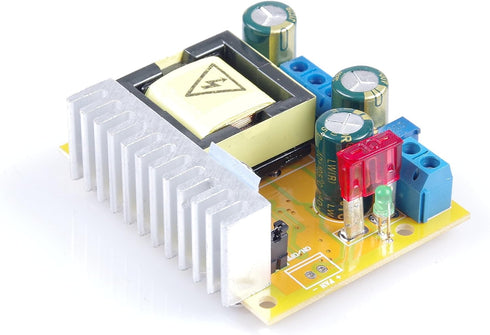

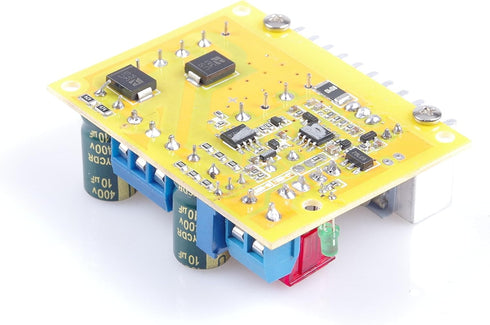

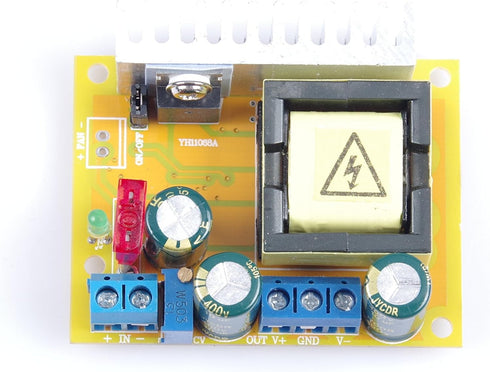

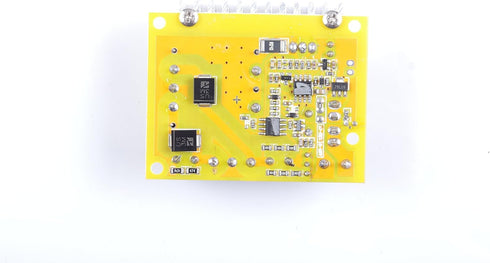

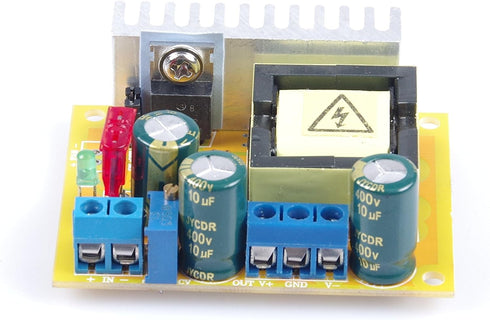

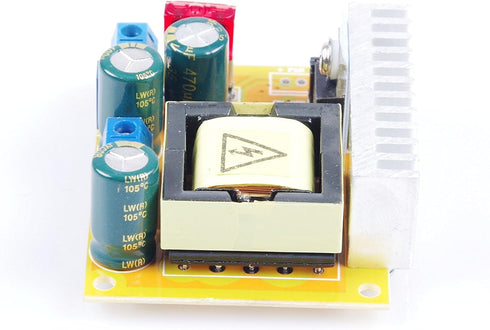

LM YN 45-390V High-Voltage Power Supply Module DC-DC Adjustable Step-Up ZVS Capacitor Charge Ultra High Voltage

High-Voltage Power Supply Module DC-DC 45-390V Adjustable Step-Up ZVS Capacitor Charge Ultra High Voltage Adjustable Output

LM YN 45-390V High-Voltage Power Supply Module DC-DC Adjustable Step-Up ZVS Capacitor Charge Ultra High Voltage

Module nature: Non-isolated boost module. Input voltage: DC10-32V. Input current: 5A (MAX). Static operating current: 15mA (12V to 50V, the higher the output voltage will increase the quiescent current). Output voltage: 45-390V 780V continuously adjustable. Output power: 40W (peak 70W). Operating temperature: -40 ~ +75 (If the ambient temperature is high, please strengthen the heat). Operating frequency: 75KHz. Conversion efficiency: up to 88% (efficiency and input, output voltage, current, pressure related). Short-circuit protection: Yes (input 10A fuse, please do not directly short-circuit the output arc! Direct short-circuit arc may damage the rectifier device). Overcurrent protection: Yes (input current exceeds 4.5A, lower output voltage). Overvoltage protection: Yes (output voltage exceeds 410V, lower output voltage). Input reverse protection: Yes (not self-recovery, then anti-burning fuse, do not reverse.) Installation: 4 * 3mm screws. Module size: 60 * 50 * 22mm (length * width * height). Capacitance charging time measured data: 470uF: Fully charged to 390V for 2 seconds, 1000uF: Fully charged to 390V time 4 seconds, 2200uF: Fully charged to 390V time 8 seconds, 4700uF: Fully charged to 390V for 18 seconds. Applications: 1, capacitor charging, electromagnetic gun power. 2, for your electronic equipment, power supply, you can set the output voltage with your system voltage. 3, pressure test power supply. If you for any reason are not happy with any product supplied , please do not hesitate to contact us and we will do our best to solve your problem .

Brand: LM YN

voltage adjustable, zvs capacitor, output electronics, ultra high, ultra, supply module, step zvs, capacitor, charge ultra, module, power accessories, voltage Electronics Power Accessories Power Converters

Key Features

• ✓ Warning: High voltage danger! Please use with caution in non-electrician's profession! If you are a professional electrician who also pay attention to safety, good security measures.
• ✓ Input voltage: DC10-32V. Input current: 5A (MAX).
• ✓ Static operating current: 15mA (12V to 50V, the higher the output voltage will increase the quiescent current).
• ✓ Output voltage: 45-390V 780V continuously adjustable. Output power: 40W (peak 70W).
• ✓ Operating temperature: -40 ~ +75 (If the ambient temperature is high, please strengthen the heat). Operating frequency: 75KHz.

Product Details

• ✓ Product Dimensions: 2.56 x 1.97 x 0.87 inches
• ✓ Item Weight: 1.23 ounces
