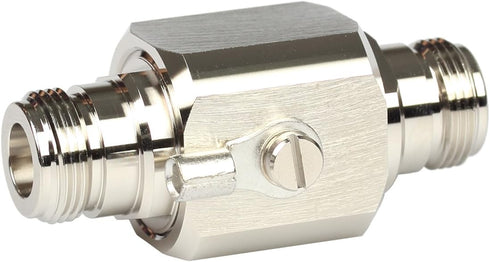

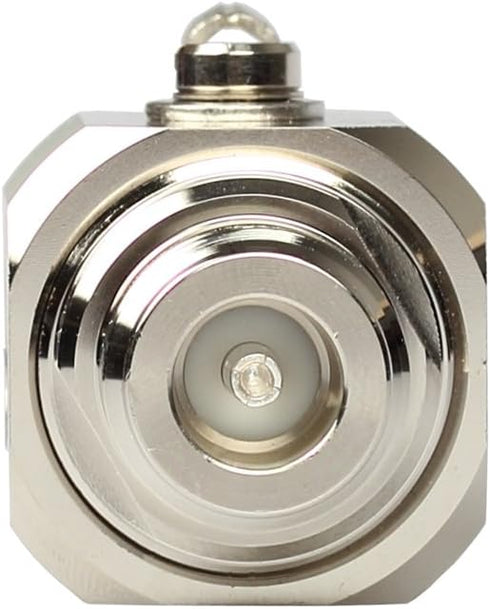

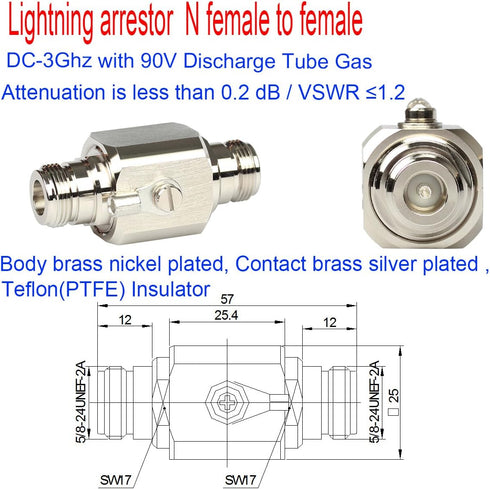

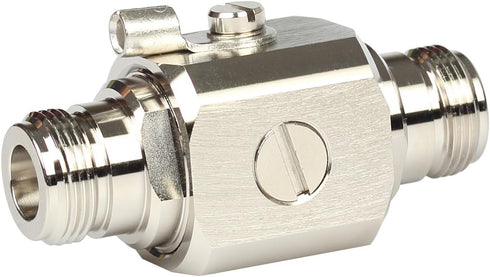

Lightning Arrestor N Female to Female 50 Ohm Lightning Surge Protector with 90 V Gas Tube DC-3GHz

Lightning arrestor N Female to Female 50 Ohm Lightning Surge Protector with 90 V Gas Tube DC-3GHz

Lightning Arrestor N Female to Female 50 Ohm Lightning Surge Protector with 90 V Gas Tube DC-3GHz

1.Materials & Plated: Body brass nickel plated, Contact brass silver plated ,Teflon(PTFE) Insulator for a reliable signal every time ,Salt spray test for 48 hours Connectors: N-Female to N-Female RoHS compliant 2.Electricail Characteristics: Impedance:50 ohm Dielectric Withstanding Voltage:2500V (RMS) Contact Resistance:Center conductor = 1m?, Outer conductor = 1m? Insulation Resistance := 5000M? Durability := 500 cycles Temperature range: -40°C to +85 °C Frequency Range up to 3 GHz Attenuation is less than 0.2 dB VSWR =1.2 3.Package include: 1 piece surge protector 4. Protects signal boosters from lightning strikes: Prevent a lightning strike from destroying your electrical system. The 50ohm Lightning Surge Protector with N-Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry. The Lightning Surge Protector safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside This lightning protector is specifically for 50 ohm systems. Lightning surge protector for Coaxial cable. The Lightning Arrester protectors offer HF/VHF/UHF other frequency equipment with extremely low loss. They boast an insertion loss of less than 0.2 dB. Arresters should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection.

Key Features

• ✅ 1.Protects signal boosters from lightning strikes, Requires additional ground cable
• ✅ 2.Body brass nickel plated, Contact brass silver plated ,Teflon(PTFE) Insulator for a reliable signal every time ,Salt spray test for 48 hours
• ✅ 3. Frequency Range up to 3 GHz / Attenuation is less than 0.2 dB / VSWR =1.2 ( DC-3Ghz)

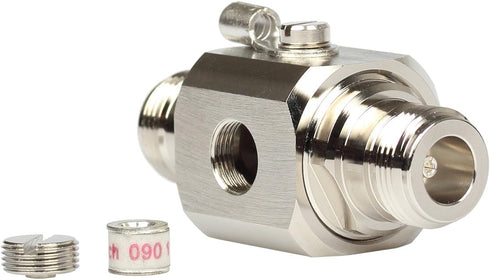

• ✅ 4. It has a replaceable gas discharge element with High Surge Power Capability ( 90V Gas tube)
• ✅ 5.Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection

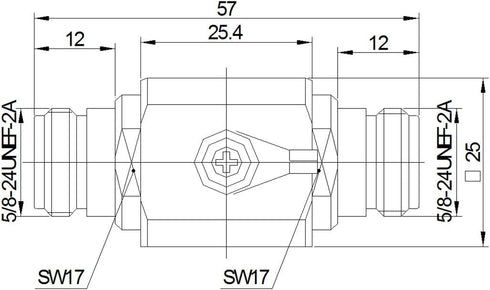

✅ Product Dimensions: 2.36 x 1.1 x 1.1 inches

✅ Color: 3G Lightning arrestor N Female to Female Square
