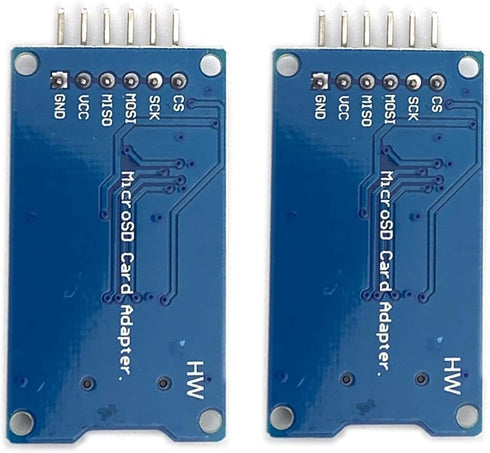

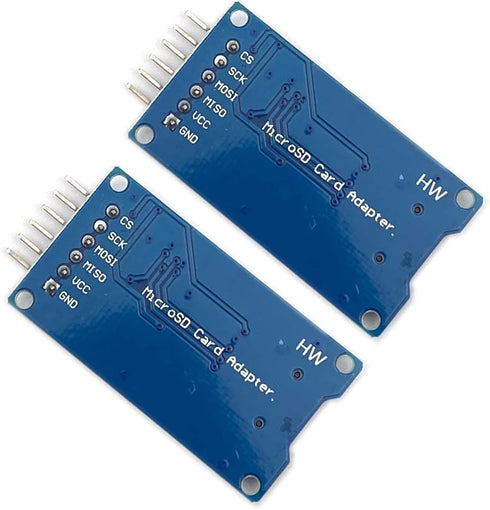

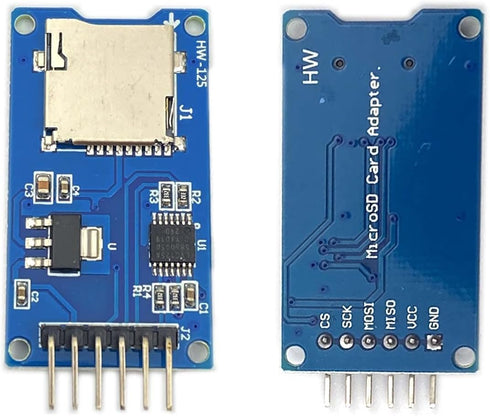

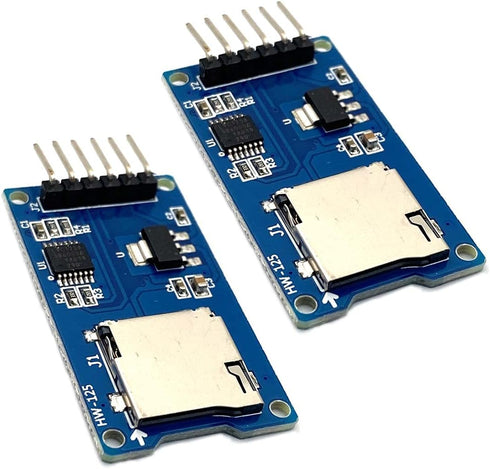

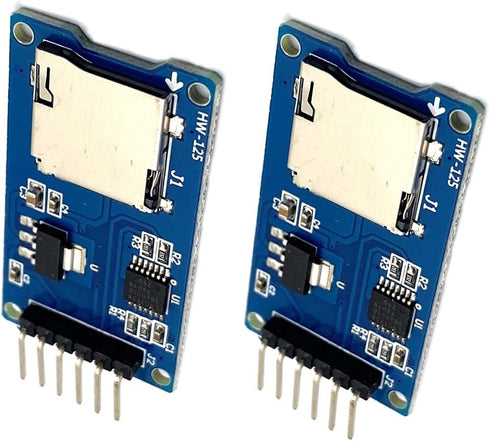

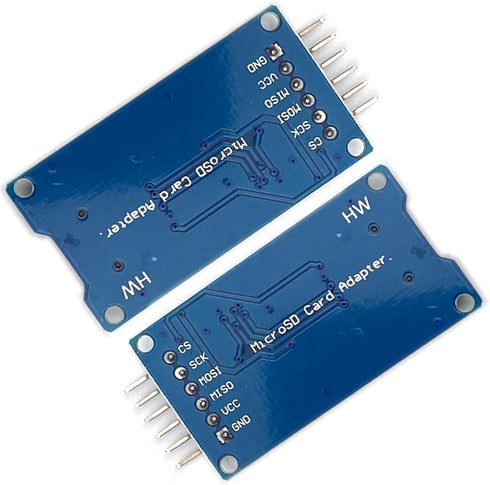

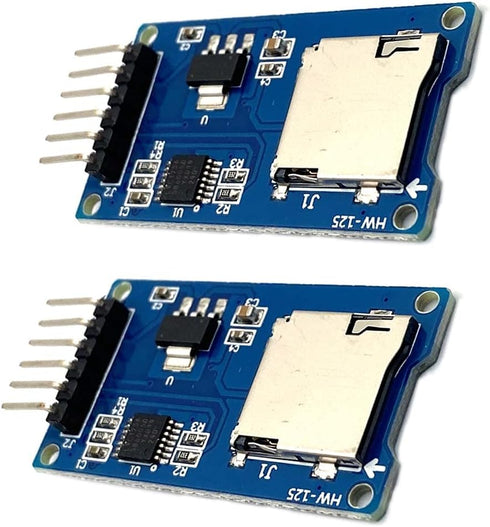

Kiro&Seeu 2pcs 6-pin Micro SD Card Module Storage Board TF Card Memory Adapter Reader Module SPI Interface Compatible

Kiro&Seeu 2pcs Micro SD Card Module Storage Board 6-pin TF Card Memory Adapter Reader Module SPI Interface Compatible with Ar-duino Raspberry Pi

Kiro&Seeu 2pcs 6-pin Micro SD Card Module Storage Board TF Card Memory Adapter Reader Module SPI Interface Compatible

Product Description: Support Micro SD card, micro SDHC card Interface level: 5V Powr supply: 5V , 5V voltage regulator circuit board Currency: 0.2-200mA Size:4.00*2.00*1.00 (About 1.3inch X 0.8inch X 0.4inch) Communication interface: SPI With 4 holes for M2 screw , it is easy to install The module (MicroSD Card Adapter) is a Micro SD card reading and writing module. Through the file system and SPI interface driver, the MCU system can complete the reading and writing of files in the MicroSD card. Arduino users can directly use the SD card library that comes with the Arduino IDE to initialize and read the card. Control interface: a total of 6 pins (GND, VCC, MISO, MOSI, SCK, CS), GND is ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin; 5V voltage regulator circuit: 5V of LDO regulated output is level conversion chip, Micro SD card power supply; Level shifting circuit: The signal to the direction of the Micro SD card is converted to 5V, and the MISO signal of the MicroSD card to the control interface is also converted to 5V. Generally, the AVR microcontroller system can read the signal; Micro SD card holder: It is a self elastic card holder for easy insertion and removal of cards. Cable Description: 40pcs in Row Female to Male Dupont Cable Line 20 cm 2.54mm 1pin 1p-1p jumper wire for Arduino Quantity: 40pcs Length: 20cm About 8 inch Package Included: 2pcs micro sd card module

Brand: Kiro&Seeu

seeu 2pcs, card memory, kiro&seeu, computers accessories, raspberry electronics, board, adapter, micro card, accessories computer, duino raspberry, module spi, storage Electronics Computers & Accessories Computer Accessories & Peripherals Memory Card Accessories Memory Card Readers

Key Features

• ✓ Support Micro SD card, Micro SDHC card (high speed card).
• ✓ Through the file system and SPI interface driver, the MCU system can completethe reading and writing of files in the MicroSD card.
• ✓ On-board level shifting circuit, interface level can be 5V. Power supply is 5V, onboard 5V regulator circuit. Communication interface is standard SPI interface.
• ✓ Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, so the module is easy to install positioning, to achieve inter-module combination
• ✓ Package Included: 2pcs micro sd card module

Product Details

• ✓ Model Number: DCardRD-MD-2pcs
• ✓ Color: Black, Blue
