Industrial 6-Channel WiFi Relay Module ESP32-S3, Supports WiFi/Bluetooth/RS485 Remote Control, Built-in Power

Industrial ESP32-S3 6-Channel WiFi Relay Module, Supports W-iF-i/Blue-Too-th / RS485 Remote Control/Pico HAT, Built-in Power Isolation and Optocoupler Isolation Protection, with Rail-Mount Case

Industrial 6-Channel WiFi Relay Module ESP32-S3, Supports WiFi/Bluetooth/RS485 Remote Control, Built-in Power

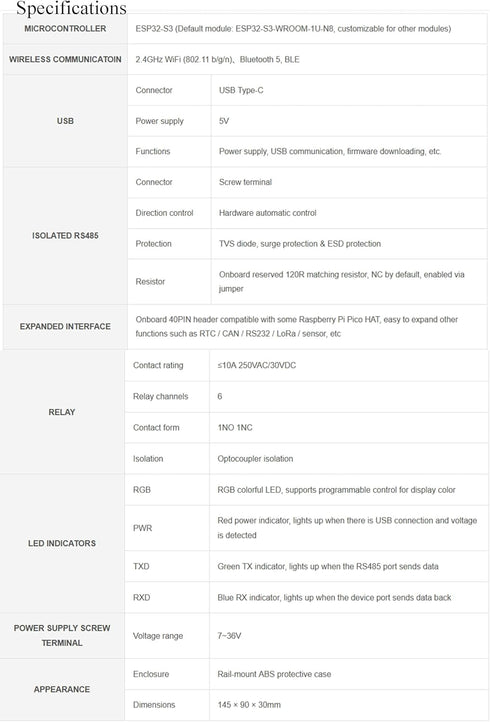

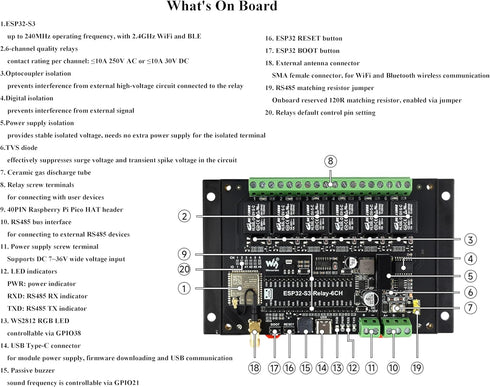

Waveshare 6-Ch ESP32-S3 W-i-F-i Relay Module Features Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc. Onboard USB Type-C port for power supply, firmware downloading and debugging Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay Onboard digital isolation to prevent interference from external signal Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal Specifications USB Connector--USB Type-C Power supply--5V Functions--Power supply, USB communication, firmware downloading, etc. ISOLATED RS485 Connector--Screw terminal Direction control--Hardware automatic control Protection--TVS diode, surge protection & ESD protection Resistor-- Onboard reserved 120R matching resistor, NC by default, enabled via jumper Relay Contact rating: =10A 250VAC/30VDC Relay channels--6 Contact form--1NO 1NC Isolation --Optocoupler isolation LED indicators RGB--RGB colorful LED, supports programmable control for display color PWR--Red power indicator, lights up when there is USB connection and voltage is detected TXD --Green TX indicator, lights up when the RS485 port sends data RXD --Blue RX indicator, lights up when the device port sends data back power supply Screw terminal: Voltage range 7~36V Appearance Enclosure : Rail-mount ABS protective case Dimensions : 145 x 90 x 30mm

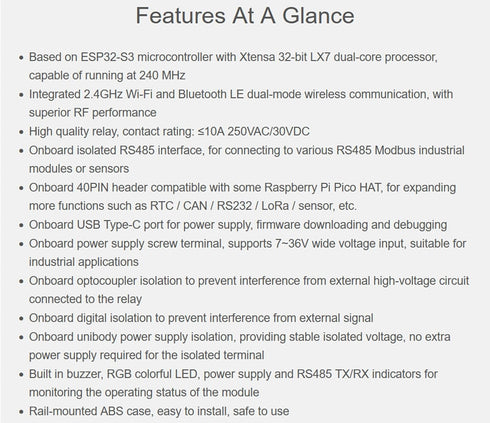

Key Features

• ✅ Industrial 6-Ch ESP32-S3 WiFi Relay Module, Based on ESP32-S3, Designed for AIoT market--Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism
• ✅ Integrated 2.4GHz W-i-F-i and Blue-too-th LE dual-mode wire-less communication, with superior RF performance. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications

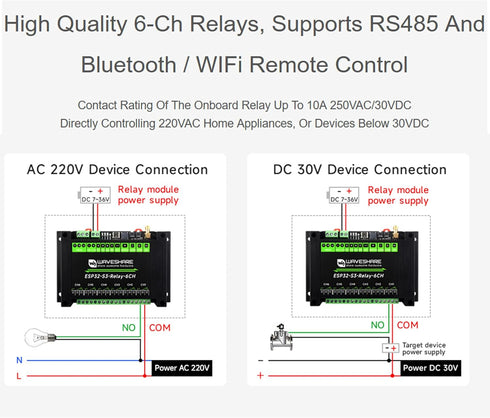

• ✅ High quality 6-Ch relays, supports RS485 and Bluetooth / WIFi remote control-- Contact rating of the onboard relay up to 10A 250VAC/30VDC. Directly controlling 220VAC home appliances, or devices below 30VDC

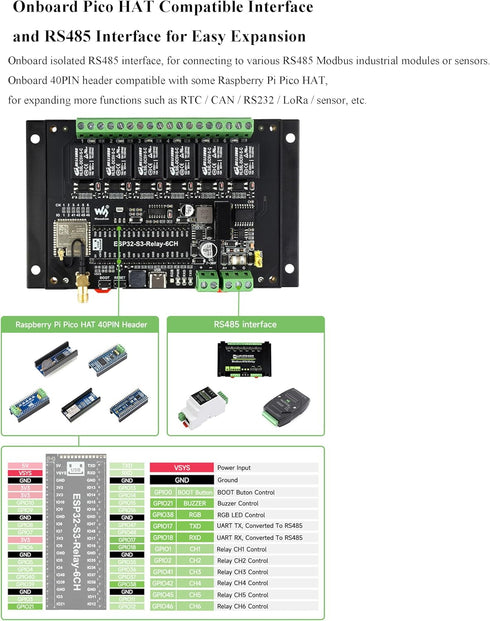

• ✅ Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard 40PIN header compatible with Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc. Onboard USB Type-C port for power supply, firmware downloading and debugging

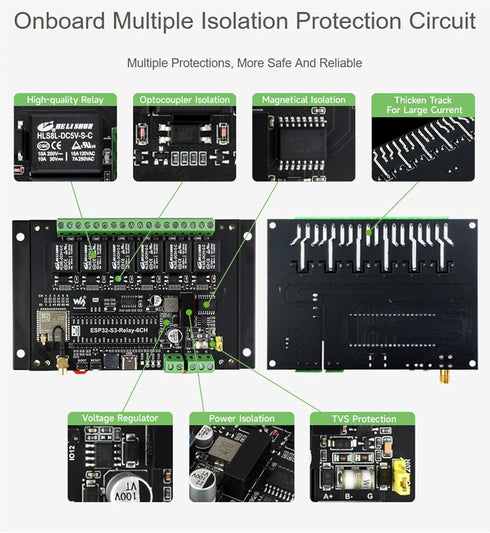

• ✅ Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay.
• ✅ Onboard digital isolation to prevent interference from external signal.
• ✅ Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
