ILQMEHV 1pc 3V 3.7V 45RPM-6400RPM 6mm 1200RPM_3V) Mini Tiny Planetary Gearbox Gear Reducer Motor Micro Coreless Geared

1pc 3V 3.7V 45RPM-6400RPM Mini Tiny 6mm Planetary Gearbox Gear Reducer Motor Micro Coreless Geared Motor DIY Toy Robot Lock(Model C 1200RPM_3V)

ILQMEHV 1pc 3V 3.7V 45RPM-6400RPM 6mm 1200RPM_3V) Mini Tiny Planetary Gearbox Gear Reducer Motor Micro Coreless Geared

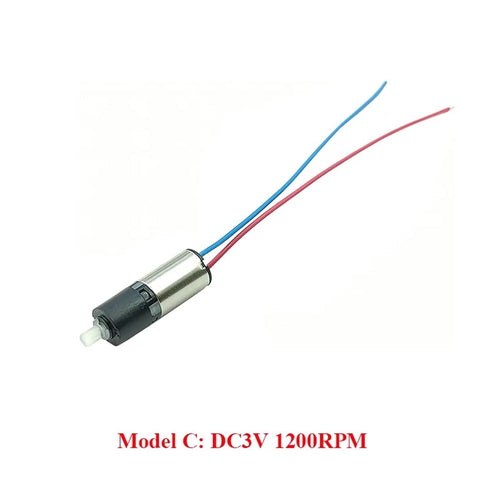

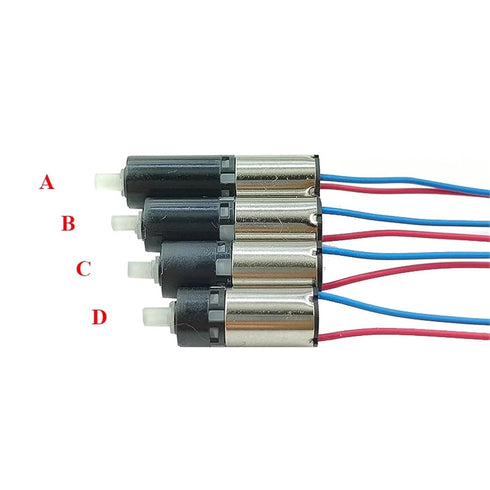

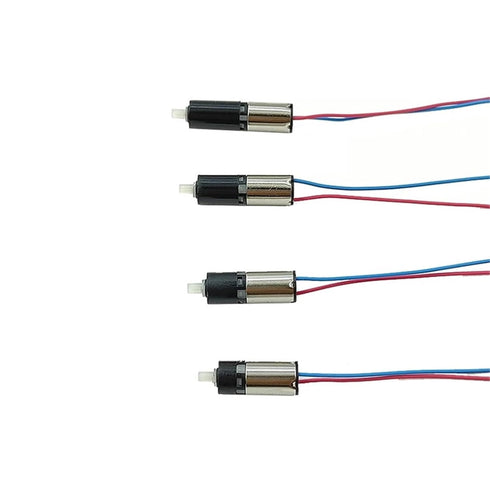

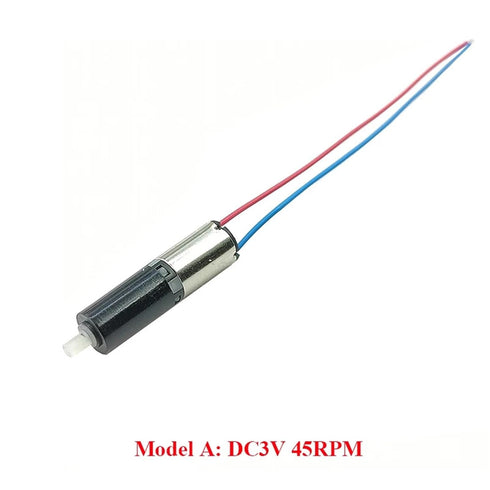

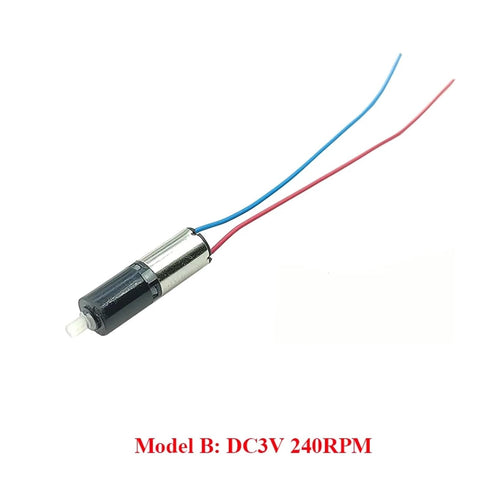

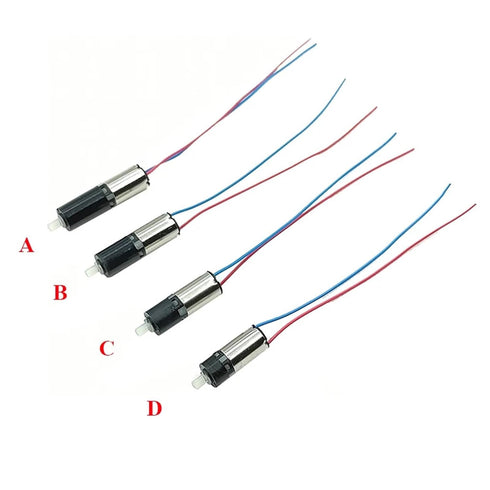

Motors Specification: Note: The rated voltage of the motor is 3V. The applicable voltage is 0.8V-6V, and the higher the voltage, the faster the speed, and the smaller the . Tips: If you need large quantity, we can provide wholesales for you. Model A: 3V 45RPM 1. Gearbox diameter: 6.0mm 2. Total height: 21.05mm (not include shaft) 3. Output shaft diameter: 2.0mm (D flat position 1.5mm) 4. Output shaft length: 2.5mm (not include step height) 5. Gearbox gear ratio: 699.55 : 1 ==================== Model B: 3V 240RPM 1. Gearbox diameter: 6.0mm 2. Total height: 18.7mm (not include shaft) 3. Output shaft diameter: 2.0mm (D flat position 1.5mm) 4. Output shaft length: 2.5mm (not include step height) 5. Gearbox gear ratio: 136.02 : 1 ==================== Model C: 3V 1200RPM 1. Gearbox diameter: 6.0mm 2. Total height: 16.35mm (not include shaft) 3. Output shaft diameter: 2.0mm (D flat position 1.5mm) 4. Output shaft length: 2.5mm (not include step height) 5. Gearbox gear ratio: 26.45 : 1 ===================== Model D: 3V 6400RPM 1. Gearbox diameter: 6.0mm 2. Total height: 14mm (not include shaft) 3. Output shaft diameter: 2.0mm (D flat position 1.5mm) 4. Output shaft length: 2.5mm (not include step height) 5. Gearbox gear ratio: 5.14 : 1 ========================= Package List: Gear Motor x 1PC ========== Hign-concerned Chemical : None Model Number : Mini 6mm Coreless Gear Motor Construction : Permanent Magnet Protect Feature : Explosion-proof Type : Gear Motor Commutation : Brush Efficiency : IE 1 Use : Home Appliance Rated voltage : 3V Suitable voltage : 3V-3.7V Motor model : 6mm*10mm coreless motor Gearbox diameter : 6mm Output shaft diameter : 2mm (D shaft 1.5mm)

Brand: ILQMEHV

power plant, gearbox gear, 6mm planetary, lock model, app, electric motors, motor diy, gearbox, motor, gear, diy, model Remote & App Controlled Vehicle Parts Power Plant & Driveline Systems Electric Motors & Parts Complete Motors

Key Features

• ✅ Motors
• ✅ 1pc 3V 3.7V 45RPM-6400RPM Mini Tiny 6mm Planetary Gearbox Gear Reducer Motor Micro Coreless Geared Motor DIY Toy Robot Lock
