ideaspark 0.96 inch 128x64 SSD1306 4 OLED Display Module with Protector Case Screen Board with Pins Soldered Work Great

0.96 inch OLED Display Module with Protector Case 128x64 SSD1306 Screen Board with 4 Pins Soldered Work Great with Arduino and Raspberry Pi (White)

ideaspark 0.96 inch 128x64 SSD1306 4 OLED Display Module with Protector Case Screen Board with Pins Soldered Work Great

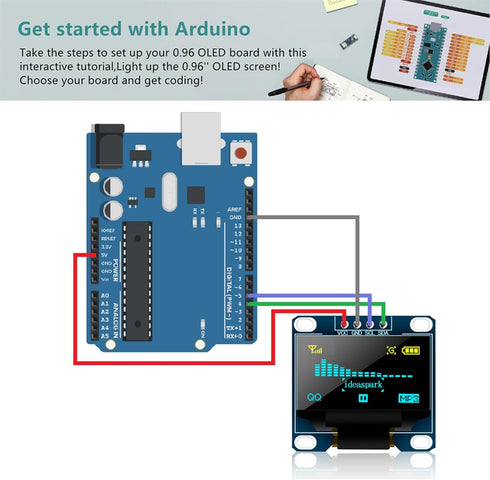

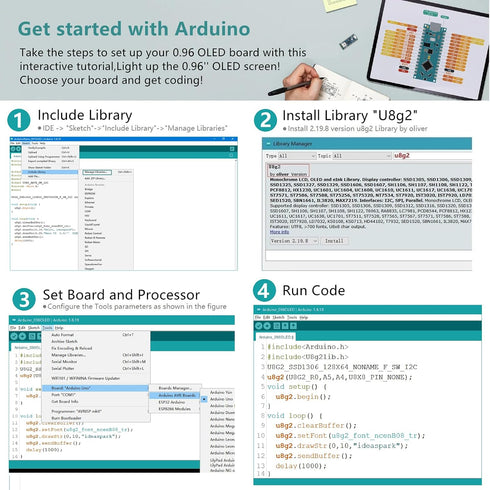

Arduino Uno -------------- 0.96'' OLED VCC(5V) -------------------- VCC GND ------------------------ GND A4 -------------------------- SDA A5 -------------------------- SCL #include < U8g2lib. h> U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,A5,A4,U8X8_PIN_NONE); void setup(void) { u8g2.begin(); } void loop(void) { u8g2.clearBuffer(); u8g2.setFont(u8g2_font_ncenB08_tr); u8g2.drawStr(0,10,"ideaspark 0.96'' OLED"); u8g2.sendBuffer(); delay(1000); }

Brand: ideaspark

case, work great, computers accessories, board, accessories computer, board pins, 128x64, screen board, inch oled, soldered work, ideaspark, computer Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

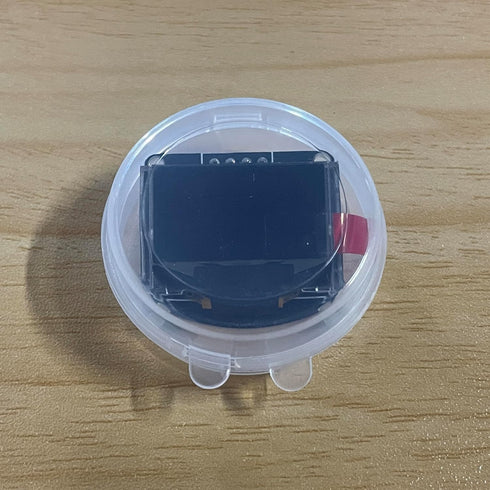

• ✓ Upgraded the 0.96 inch OLED module: Added a protective screen bracket to prevent it damage from bumps and impacts
• ✓ This i2c display module is 0.96 inch diagonal,Resolution: 128 x 64, View angle: > 160, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
• ✓ Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports
• ✓ 0.96 Inch OLED module for showing graphical & textual information directly on your micro-controller projects. It compatibles with Arduino Uno,Nano and Mega, Raspberry pi, 51 MCU, STIM 32, etc
• ✓ No backlight is required. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts
