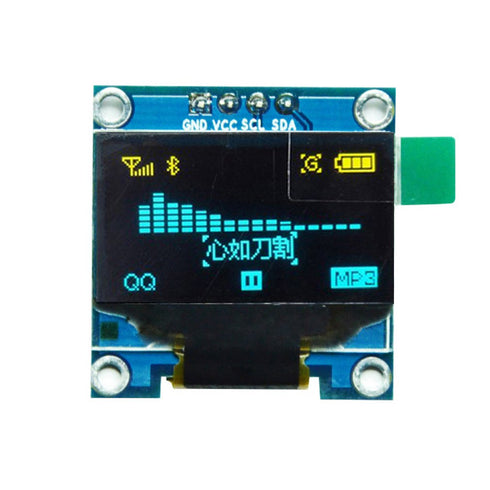

HiLetgo 0.96" SSD1306 I2C 128X64 4 IIC SPI Serial OLED LCD Display Pin Font Color Yellow Blue

HiLetgo 0.96" SSD1306 I2C IIC SPI Serial 128X64 OLED LCD Display 4 Pin Font Color Yellow Blue

HiLetgo 0.96" SSD1306 I2C 128X64 4 IIC SPI Serial OLED LCD Display Pin Font Color Yellow Blue

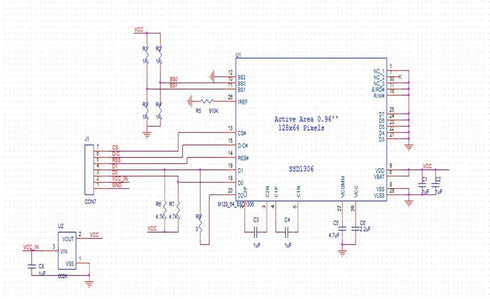

HiLetgo 0.96" SSD1306 I2C IIC SPI Serial 128X64 OLED LCD Display 4 Pin Font Color Blue Yellow Feature: Super High Brightness (Adjustable) Super High Contrast (Adjustable) Embedded Driver/Controller Colors: White/Blue/Blue Yellow Drive Duty: 1/64 Duty Pixels: 128x64 Panel Size: 26.70mm x 19.26mm x 1.85mm Active Area: 21.74mm x 11.2mm Pixel Size: 0.15mm x 0.15mm This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01 Needn't backlight, the display unit can self-luminous High resolution: 128 * 64 Viewing angle:> 160 Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08W Voltage: 3V ~ 5V DC Working Temperature: -30 ~ 70 Module Size: 27.0MM * 27.0MM * 4.1MM Driver IC: SSD1306 I2C/IIC Interface, need 2 IO only. Package included: 1* 0.96" I2C IIC 128X64 OLED LCD Display 4 Pin Font Color Blue Yellow Note: Please contact us if you need the Schematic/Program code/User Manual etc.

Brand: HiLetgo

i2c iic, display pin, computers accessories, blue, accessories computer, spi serial, i2c, 128x64, color, color yellow, font, computer Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ Works well SSD1306 library, a nice OLED for Arduino, Beaglebones, Raspberry Pi
• ✓ Simple 4-wire I/F makes it a snap to use, easy to get up and running
• ✓ Low-power, very legible and vibrant, a crisp screen, pixels stand out very well even in a brighter circumstances like full sunlight
• ✓ Interface: I2C IIC 4 Pin; Font Color: Yellow Blue
• ✓ There are other I2C IIC(4Pin) and SPI (7 Pin) interfaces and two different Font Colors for your option

Product Details

• ✓ Model Number: 3-01-1234-IIC-YB-AU-1PC
• ✓ Color: Yellow & Blue-IIC
