HiLetgo 0.91" I2C SSD1306 128x32 3.3V/5V STM32 IIC Serial OLED LCD Display AVR PIC for Arduino

HiLetgo 0.91" IIC I2C Serial OLED LCD Display SSD1306 128x32 3.3V/5V AVR PIC for Arduino STM32

HiLetgo 0.91" I2C SSD1306 128x32 3.3V/5V STM32 IIC Serial OLED LCD Display AVR PIC for Arduino

Driver IC: SSD1306, Font Color: white, Voltage: DC 3.3-5V, PIN Interface: IIC or SPI optional. IIC Pin definition:-- GND: Power Ground. VCC: Power + (DC 3.3 ~5v). SCL: Clock Line. SDA: Data Line. SPI Pin definition:--GND: Power ground. VCC: Power. CLK: Clock line. MOSI: Data cable. RES: Reset line. DC: Data/commands. CS: Chip select (when not use can be grounded directly).

Brand: HiLetgo

pic, computers accessories, accessories computer, i2c serial, i2c, stm32 electronics, computer, hiletgo iic, computer components, ssd1306, electronics, oled lcd Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

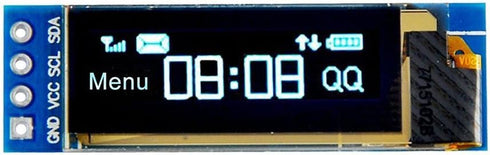

• ✓ OLED display, no need backlight, self-illumination, Display Color: White. Plz note: These I2C OLED Display Modules come without pin headers.
• ✓ The display performance is better than the traditional LCD display, it uses the very common I2C bus, and runs on the SSD1306 display driver.
• ✓ High resolution OLED for any of your micro controller projects, 128x32 pixels gives you a nice sharp, crisp text output.
• ✓ Use with Arduino, ESP8266, ESP32, STM32, etc. This is a really good way to add a very compact LCD to your project. No need to add some big bulky backlit LCD.
• ✓ The display can run on 3.3v. It is legible, even with 4 lines of text. Highly recommended for projects that require some form of user interface.

Product Details

• ✓ Model Number: 3-01-1259
