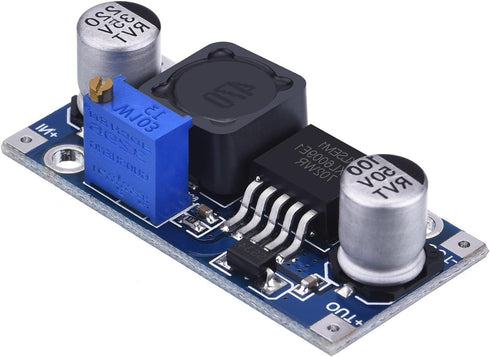

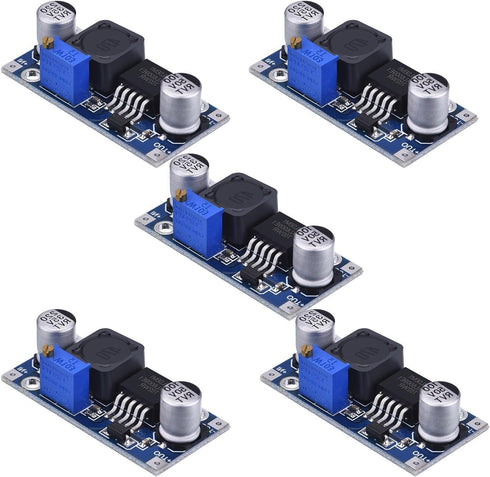

hiBCTR 5 Packs XL6009 3.0-32V 5-35V 400KHz Boost Converter DC to DC Step Up Voltage Regulator, to Adjustable Power

5 Packs XL6009 Boost Converter DC to DC Step Up Voltage Regulator, 3.0-32V to 5-35V Adjustable Power Supply Module, 400KHz High Frequency Transformer Board for DIY Projects

hiBCTR 5 Packs XL6009 3.0-32V 5-35V 400KHz Boost Converter DC to DC Step Up Voltage Regulator, to Adjustable Power

XL6009 is a high-performance 400KHz 4A boost module using 3rd-gen high-frequency switch technology, outperforming LM2577. Input voltage range: 3V32V (optimal 5V32V). Output voltage range: 5V35V. Features 4A high-efficiency MOSFET switches with 94% efficiency, surpassing LM2577's 3A limit. 400KHz ultra-high frequency ensures minimal ripple and efficient filtering with small capacitors. Includes 0.1uF bypass capacitor for effective high-frequency noise reduction. 3V Input: 12V/0.4A, 4.8W 5V Input: 12V/0.8A, 9.6W 7.4V Input: 12V/1.5A, 18W 12V Input: 15V/2A, 30W | 16V/2A, 32W | 18V/1.6A, 28.8W | 19V/1.5A, 28.5W | 24V/1A, 24W Efficiency formula: Vin Iin Efficiency = Vout Iout Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store

Brand: hiBCTR

board, high, transformer board, step, converters, converter, step voltage, 400khz high, power supply, hibctr, electronics, diy Electronics Power Accessories Power Converters

Key Features

• ✓ POWERFUL STEP-UP PERFORMANCE: Equipped with the 3rd generation XL6009 core chip and 4A high-efficiency MOSFET switches, this boost converter delivers up to 94% efficiency. It significantly outperforms older LM2577 models, providing a stable and robust power increase for your electronic designs.
• ✓ ULTRA-LOW OUTPUT RIPPLE: Featuring an ultra-high switching frequency of 400KHz, our module ensures minimal voltage fluctuation. Integrated with a 0.1uF high-frequency bypass capacitor, it effectively filters out noise, making it ideal for sensitive communication and audio equipment.

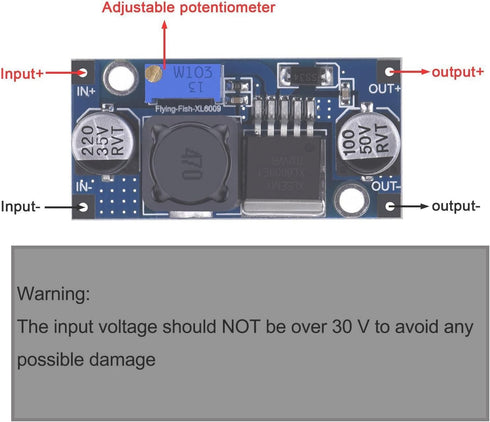

• ✓ WIDE ADJUSTABLE VOLTAGE RANGE: This module accepts a wide input from DC 3.0V to 32V and boosts it to an adjustable 5V to 35V output. Simply use the precision multi-turn potentiometer to set your target voltage. Note: For optimal stability, an input of 5V or higher is recommended.
• ✓ RELIABLE & COOL OPERATION: Designed with high-quality components and an optimized PCB layout to ensure durability. The high-frequency technology allows for smaller filtering capacitors while maintaining steady output and lower heat generation compared to low-frequency alternatives.
• ✓ VERSATILE DIY APPLICATIONS: A must-have for solar energy systems, DIY mobile power banks, and battery-driven devices. Perfect for hobbyists and engineers needing to boost voltage for high-power LEDs, portable monitors, or microcontrollers in space-constrained projects.

Product Details

• ✓ Model Number: XL6009
• ✓ Color: Blue
