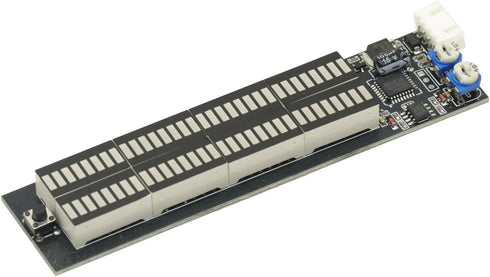

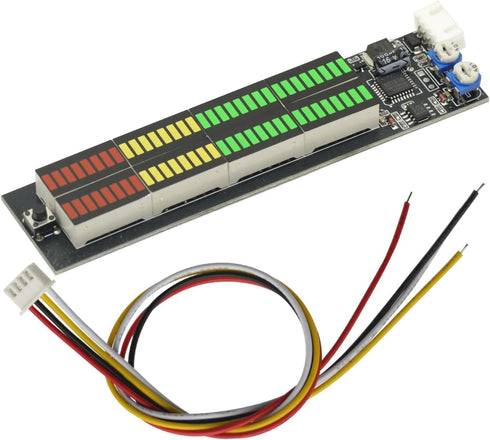

GODIYMODULES MP3 Audio Level Indicator Stereo Music Spectrum LED Light Amplifier VU Meter for Car Player Light

Audio Level Indicator Stereo Music Spectrum LED Light Amplifier VU Meter for Car MP3 Player Light Atmosphere Lamps

GODIYMODULES MP3 Audio Level Indicator Stereo Music Spectrum LED Light Amplifier VU Meter for Car Player Light

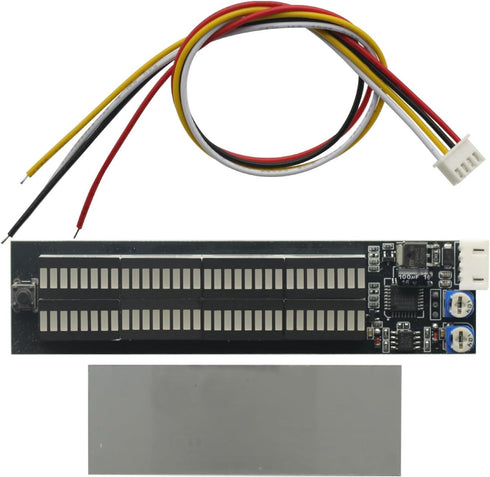

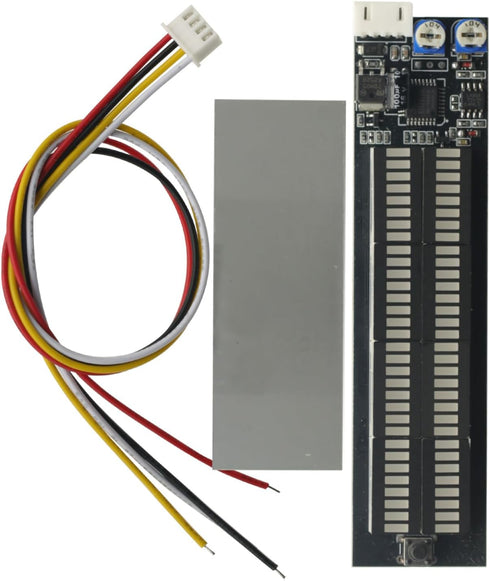

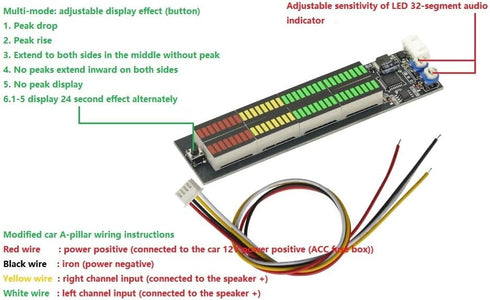

Yellow line: Right channel White line: left channel Red line: Power supply positive (between 6-16V) Black line: Negative power supply Multi-mode: Display effect adjustable (key) 1. Peak falling 2. Peak up 3. No peak expansion from the center to both sides 4. No peaks expanding inward on both sides 5. No peak display 6.1-5 display 24 seconds effect rotation switching Modified car A-pillar wiring instructions Red wire: power positive (connected to the car 12V power positive (ACC fuse box)) Black wire: iron (power negative) Yellow wire: right channel input (connected to the speaker +) White wire: left channel input (connected to the speaker +) Note: When you need two channels together flash side need to screw the yellow and white wires together to connect a speaker + can be. If you need two-channel flashing side need a yellow wire to connect a channel (crossover) speaker +, white wire side to connect another channel (crossover) speaker + Audio signal wiring before the level of priority (the front level is the computer or cell phone output signal), can also be connected to the amplifier speaker line (that is, the amplifier output to the speaker wiring) IN audio signal input (signal is recommended to be connected to the front level (amplifier volume front), connected to the back stage (output) connected to the back stage to take into account is the soprano, midrange, bass, the three sound effects are not the same as the left and right channels are not the same, such as connecting to the high sound on the (For example, if you connect it to the treble, you can't see the instrumental state of the bass, and if you connect it to the bass, you can't show the character's voice) Multi-mode: display adjustable (button) 1. peak down 2. peak up 3. center to sides with no peaks 4. no peak inward on both sides 5. no peaks 6.1-5 Alternating 24 second effects Voltage DC voltage 6-16V Current: 20 mA (standby) Connection Preamplifier or Speaker Positive LED 32-segment audio indicator Adjustable sensitivity Total size: 117X29MM Display size: 82X10MM Color: Green+Yellow+Red Note: When you need two channels to flash together, you need to twist the yellow and white wires together and connect them to the speaker +. If you need two channels flashing at the same time, you need to connect the yellow wire to the speaker + of one channel (crossover) and the white wire to the speaker + of the other channel (crossover). Audio signal wiring priority to connect to the front level (the front level is the signal output from the computer or cell phone), can also be connected to the amplifier speaker wire (the connection between the amplifier output and the speakers) IN Audio Signal Inputs (the signal is recommended to be connected to the front level (front of the amplifier volume), and after the back level (the output side), you have to consider the treble, mid-range, and bass. The effect of the three tones is different. The left and right channels are different. For example, you cannot see the sound of a bass instrument when connected to the treble (Status, the voice of the character cannot be displayed when connected to the bass).

Brand: GODIYMODULES

level, meter, light amplifier, light atmosphere, accessories, vehicle electronics, electronics accessories, player light, led light, mp3 player, car vehicle, godiymodules Electronics Car & Vehicle Electronics Vehicle Electronics Accessories Audio & Video Accessories

Key Features

• ✓ Voltage: DC voltage DC6-16V Current: 20mA (standby)
• ✓ Adjustable sensitivity of LED 32-segment audio indicator
• ✓ Overall size: 117X29MM Display size: 82X10MM
• ✓ Audio Level Indicator Stereo Music Spectrum LED light Amplifier VU Meter for Car MP3 player Light Atmosphere Lamps

Product Details

• ✓ Model Number: Audio Level Indicator
• ✓ Color: Green+Yellow+Red
• ✓ Power Source: Corded Electric
• ✓ Material Type: PCB
• ✓ Included Components: 1pcs
