GODIYMODULES LM2596 3.3V/5V/12V/ADJ Multi Channel Switching Power Supply Adjustable Voltage Output Power Supply Module

SKU: TGABL2550628

VENDOR: GODIYMODULES

$17.79$15.37

You Save: $2.42 (14%)

Hurry! Only 0 Left in Stock!

Free Shipping Across the United States

All orders within the United States qualify for 100% free shipping.

Fast Processing & Dispatch

All orders are shipped within 1 business day after purchase.

30-Day Free Returns

Not satisfied? You can return your order for free within 30 days after delivery.

PRODUCT INFORMATION
PRODUCT INFORMATION

LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module

GODIYMODULES LM2596 3.3V/5V/12V/ADJ Multi Channel Switching Power Supply Adjustable Voltage Output Power Supply Module

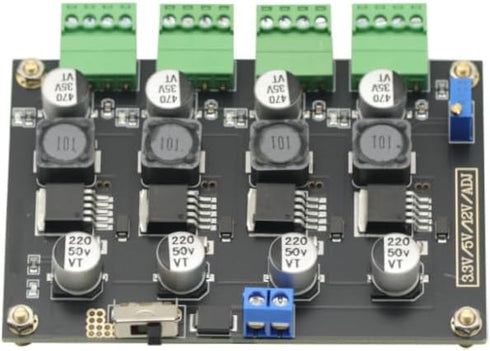

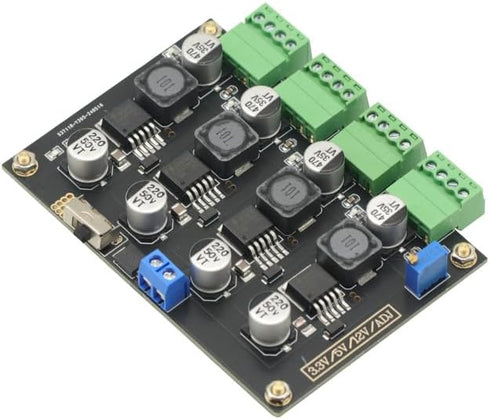

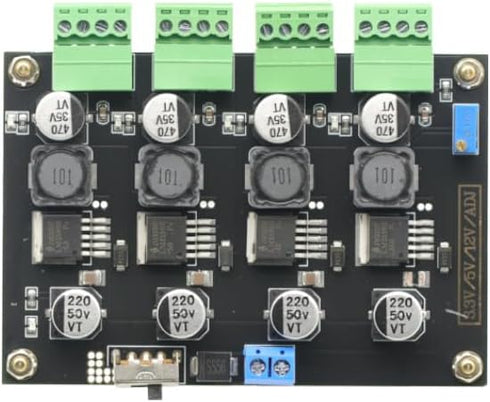

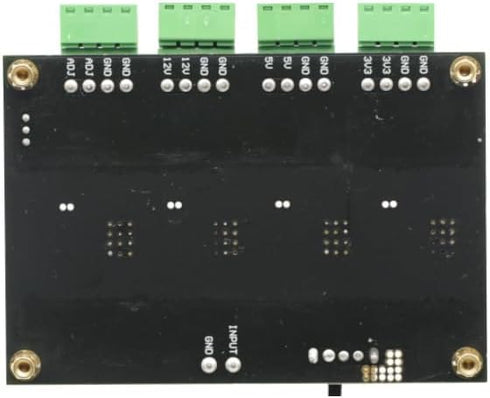

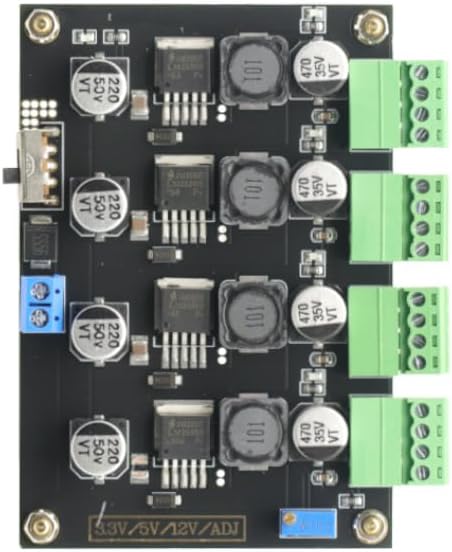

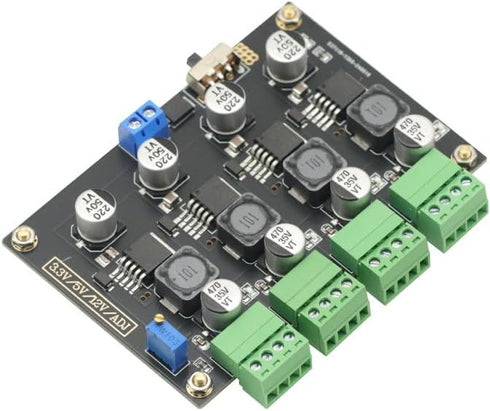

The LM2596 is a switching voltage regulator of a step-down power management monolithic integrated circuit, capable of outputting a drive current of 3A, with good linearity and load regulation characteristics. This module integrates 4 pieces of LM2596, which can output 3.3V, 5V, 12V, ADJ four sets of power at the same time The module is laid out and wired in strict accordance with the design specifications of the power circuit The material is generous, using SMD aluminum electrolytic capacitors, high-Q high-power inductors to ensure stable output voltage The window processing on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip Suitable for student learning competitions and power needs in corporate or personal project development.

Brand: GODIYMODULES

switching, voltage output, lm2596 multi, adjustable voltage, 12v, converters, channel switching, module electronics, lm2596, power supply, adj adjustable, adj Electronics Power Accessories Power Converters

Key Features

  • ✓ LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module
  • ✓ Input voltage: 5V-40V Input voltage: multiple 3.3V, 5V, 12V, ADJ

Product Details

  • ✓ Item Weight: 0.12 Kilograms
  • ✓ Wattage: 36 watts
