Generic 17mm 1.5V-3V 1300RPM 180 3mm DC Micro Planetary Gearbox Gear Motor Speed Reduction D Shaft DIY Smart Car Robot

17mm DC 1.5V-3V 1300RPM Micro 180 Planetary Gearbox Gear Motor Speed Reduction 3mm D Shaft DIY Smart Car Robot Toy Model

Generic 17mm 1.5V-3V 1300RPM 180 3mm DC Micro Planetary Gearbox Gear Motor Speed Reduction D Shaft DIY Smart Car Robot

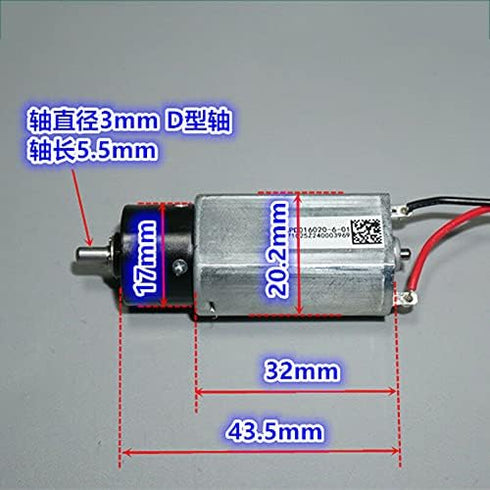

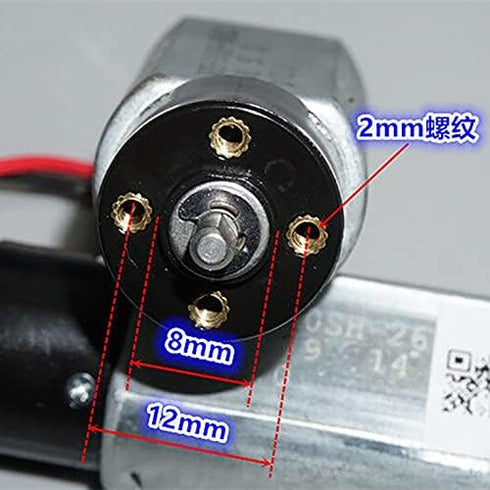

Specifications: The rated voltage is 3V,can work with 1.5V-3V,tested stall torque is 300g.cm at 1.5V,stall torque is 700g.cm at 3V. The gearbox is a planetary first-class deceleration, with a deceleration ratio of 6:1, high speed output and good deceleration sound. 1.Test data: Voltage:1.5V No-load current:0.16A No-load speed:630RPM Voltage:3.0V No-load current:0.21A No-load speed:1300RPM 2.Motor size: 20.2mm*32mm 3.Total length: 43.5mm 4.Gearbox diameter: 17mm 5.Output shaft diameter: 3mm(D shaft) 6.Output shaft length: 5.5mm 7.Screw hole diameter: 2mm 8.Screw hole distance: 12mm 9.Weight: 38g Package includes: Motor x 1pcs Item specifics: Torque: No clear Usage: Home Appliance,Other Model number: Micro gear motor Output power: Not clear Continuous current(a): Not clear Protect feature: Explosion-proof Commutation: Brush Construction: Permanent Magnet Efficiency: Other Type: Gear Motor Certification: CCC,ce Origin: Mainland China Output shaft diameter: 3mm(D shaft) Shaft length: 5.5mm Working voltage: DC 1.5V-3V Condition: Used

Brand: Generic

plant driveline, systems, micro 180, systems electric, controlled vehicle, electric motors, reduction, motors, vehicle parts, 17mm 1300rpm, diy, 1300rpm micro Remote & App Controlled Vehicle Parts Power Plant & Driveline Systems Electric Motors & Parts Complete Motors

Key Features

• ✅ Package Includes: Motor x 1pcs
• ✅ Torque: No clear
• ✅ Usage: Home Appliance,Other
• ✅ Model number: Micro gear motor
• ✅ Output power: Not clear
