Generic 12864 0.96 Inch I2c 128 64 51 Msp420 Stim32 DEVMO IIC Serial OLED LCD LED Display Screen Serial Module X
SKU: TGABL2536560
VENDOR: Generic
You Save: $2.86 (15%)
Hurry! Only 0 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
DEVMO 12864 0.96 Inch I2c IIC Serial OLED LCD LED Display Screen Serial Module 128 X 64 Compatible with Ar-duino Display Raspberry PI 51 Msp420 Stim32
Generic 12864 0.96 Inch I2c 128 64 51 Msp420 Stim32 DEVMO IIC Serial OLED LCD LED Display Screen Serial Module X

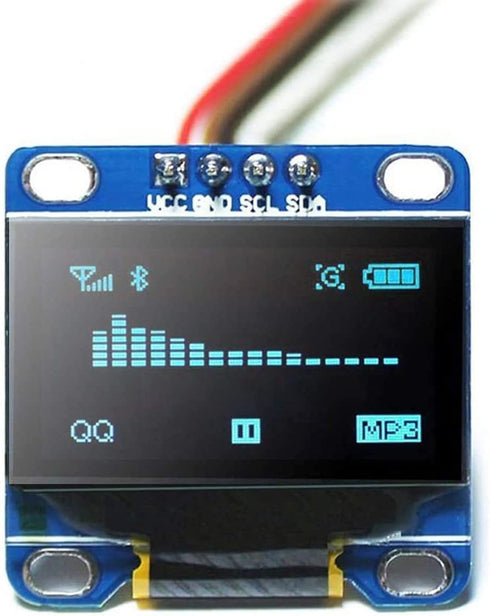

Product description 128*64 LED display module for Ar-duino, supports many control chip. Fully compatible with for Ar-duino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08W Super high brightness and contrast are adjustable With embedded driver/controller Interface type is IIC I2C/IIC Interface, need 2 IO only. Resolution: 128X64 Drive Duty: 1/64 Duty Viewing angle: greater than 160 degrees Pins: 4 pins Pin Definition: GND, VCC ,SCL, SDA 1:GND(OLED power supply) 2:VCC (OLED 3.3~5V) 3:SCL(OLED IIC Clock line) 4:SDA(OLED IIC Cable) Voltage: 3V ~ 5V DC Working Temperature: -30 ~ 70 Drive Duty: 1/64 Duty High resolution: 128 * 64 Driver IC: SSD1306 Package Included: 1 X 128x64 LED display module for Ar-duino
Brand: Generic
screen serial, i2c iic, module 128, inch i2c, computers accessories, raspberry msp420, accessories computer, 128 compatible, i2c, computer, led display, stim32 Electronics Computers & Accessories Computer Components Single Board Computers
Key Features
- ✓ The IIC address can be changed, it is convenient to use with different machines.
- ✓ High resolution: 128 * 64. Viewing angle:> 160 .
- ✓ Supports many control chip: Fully compatible with Ar-duino, 51 Series.
- ✓ Ultra-low power consumption: full screen lit 0.08W.
- ✓ Voltage: 3V ~ 5V DC. Working Temperature: -30 ~ 70 .
Product Details
- ✓ Package Dimensions: 6.3 x 3.19 x 0.39 inches
- ✓ Item Weight: 0.176 ounces
