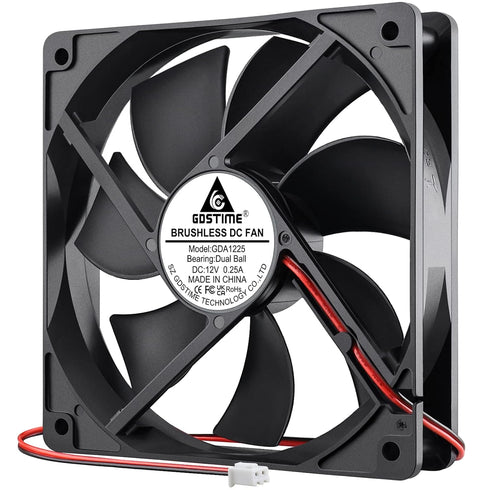

GDSTIME Dual Ball Bearings Cooling Exhaust Fan, 120mm x 120mm x 25mm, 5 inch 12v Brushless

GDSTIME Dual Ball Bearings 120mm x 120mm x 25mm 5 inch 12v Brushless DC Cooling Exhaust Fan, For Desktop

GDSTIME Dual Ball Bearings Cooling Exhaust Fan, 120mm x 120mm x 25mm, 5 inch 12v Brushless

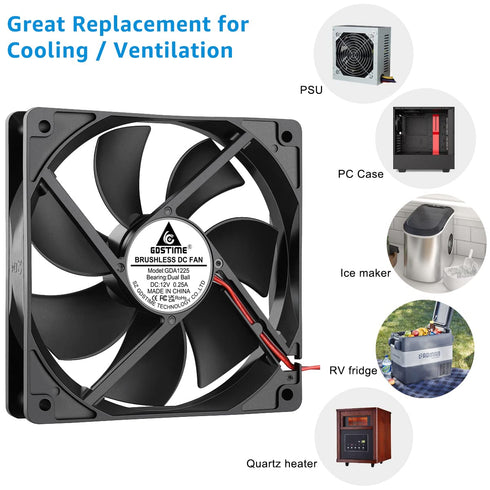

About us As a professional manufacturer of cooling fans, such as DC fan, AC fan, EC fan, and other cooling products. We're devoted to offer quality and reliable cooling fans at a affordable value to help you keep electronics cool. We work hard to ensure our customers are satisfied with dependable service and excellent cooling performance! Visit the Store Visit the Store Visit the Store GDSTIME is a professional manufacturer & supplier which have our own factory. This allow us to control product quality at every stage of manufacturing. We strive to offer quality and reliable cooling fans at a affordable value to help you keep your electronic systems cool. We aim to offer you the best shopping experience possible by improving everything we do, from quality control and customer support. Visit the Store Popular in various cooling & ventilation applications, ranging from computer case to electronics components to audio-video equipment. This is brushless dc cooling fan, containing long life dual ball bearings and pure copper coil, the fans can be run continuously for 50,000 hours and be mounted in any direction. The fan's frame and blades are constructed of PBT plastic which have a high resistance to flammability. Operating Temperature: 14? to 167 ? The operating voltage is 7 to 13.5V DC, 2-Pin Connector with 300mm (11.81 inch) leadwire. Includes a 120mm metal fan guard and mounting screw set. All GDSTIME fans are certified by CE and RoHS. Axial Series This 120mm ball bearing fan is designed for various projects that requires cooling or ventilation; or as a replacement fan for many products on the market. Such as ice makers, PSU power supply , inverter/charger, rv fridge, quartz heater, LED grow light, solar panel and so on. Total Dimensions: 4.72 x 4.72 x 0.98 in. (120 x 120 x 25 mm) Hole to Hole Distance: 4.13 x 4.13 in. (105 x 105 mm) Screw Hole Size: Ø 0.17 in. (Ø 4.3 mm) Airflow: 83.2 CFM | Noise: 35.7 dBA | Speed: 2500 RPM Voltage: 12V | Power: 3.5 W | Current: 0.25 A Static Pressure: 0.18 In H2O Fan Bearings: Dual Ball Life Expectency: 50,000 Hours Enhanced frame structure, reducing turbulent flow noise increase efficiency. PBT plastic impeller meets UL 94 flammability standards. Dual-ball bearings rated at up to 50,000 hours allows the fans to be mounted flat or upright. Impedance protected motors have a high resistance to heat. Make sure positive"+"(red wire) and negative "-" (black wire) poles are in the right places; exchange the red and black wires in the connector if their position is different from your old fan. Metal fan guard on the fan can protect your fingers from injury, and prevent the fan wire from getting involved in the fan blades.

Key Features

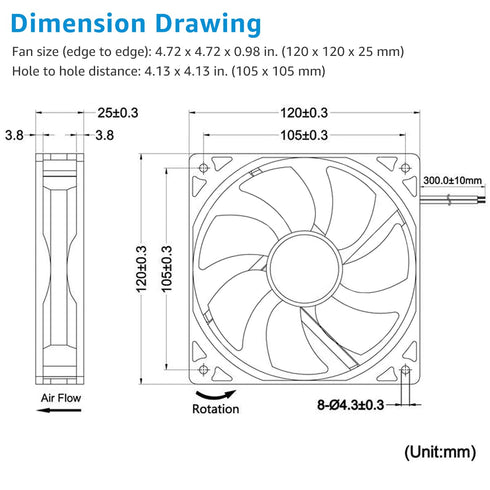

• ✅ Dimension of outer the frame is 120mm(L) x 120mm(W) x 25mm(H) / The size of fan in inch is 4.72in(L) x 4.72in(W) x 1in(H); The center to center distance beween the mountiong holes is 105mm/4.13in.
• ✅ Operating Voltage Range:5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.) The started Voltage is 3.6V.

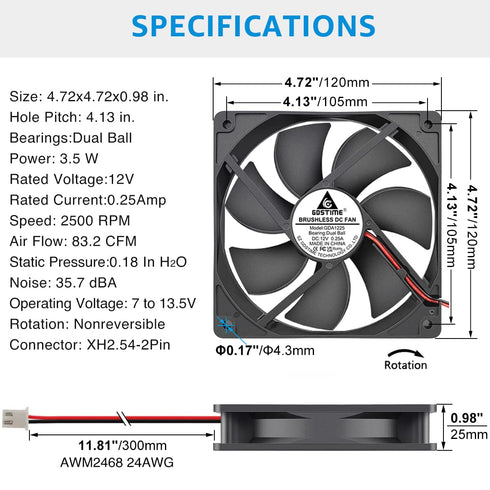

• ✅ Rated Voltage: DC 12V; Rated Current: 0.25Amp; Rated Speed: 2500 RPM; Air flow: 83.2 CFM; Noise: 35.7 dBA; Power: 3.5 Watt

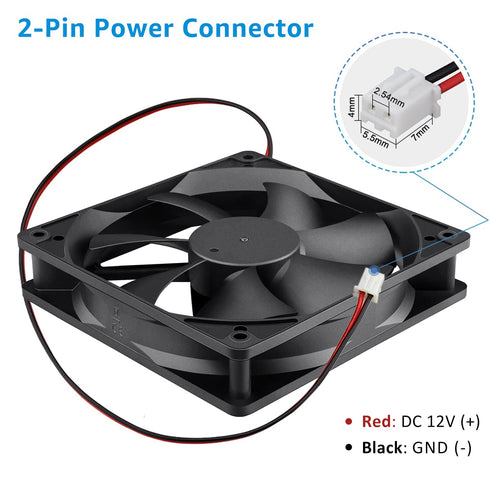

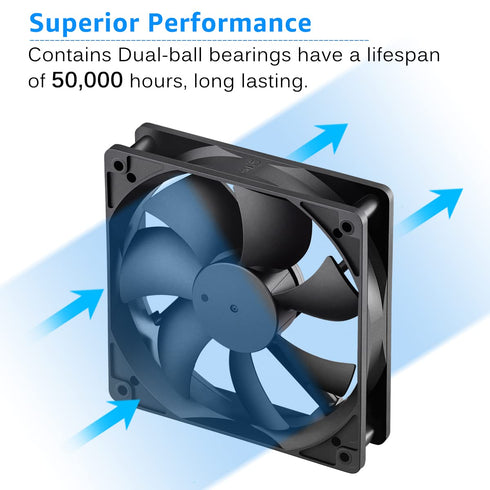

• ✅ Connector: XH2.54-2Pin; Lead wire: UL Type (Positive): Red wire ; (Negative): Black wire. This is a two wire cooling fan; Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees
• ✅ Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase

✅ Product Dimensions: 4.72 x 4.72 x 0.98 inches; 2.4 ounces
