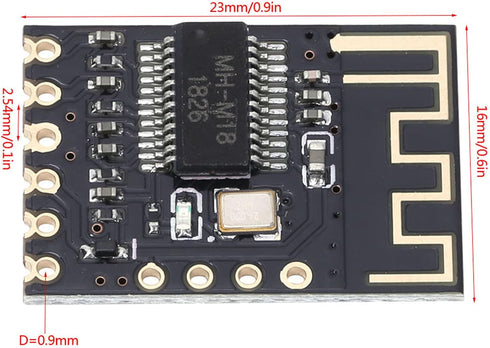

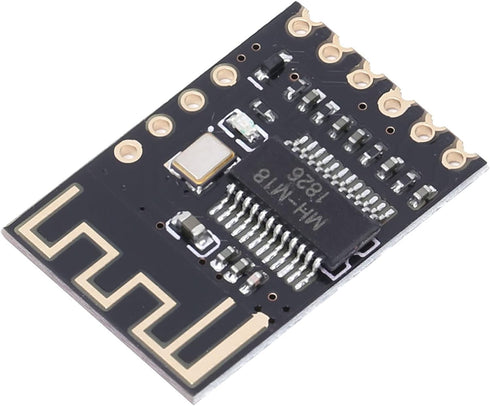

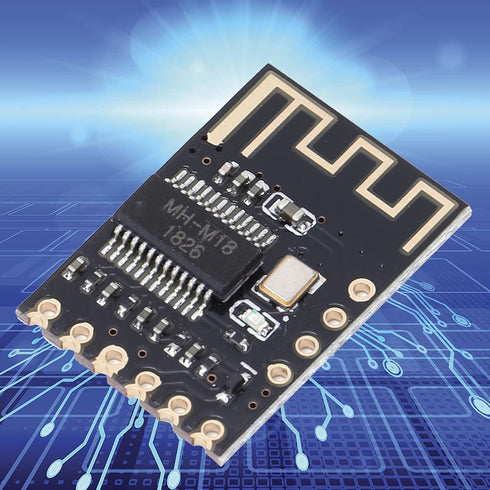

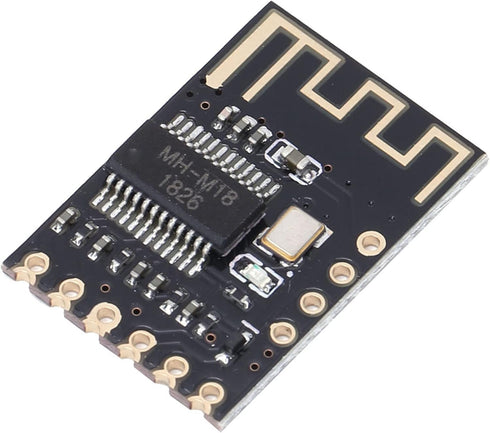

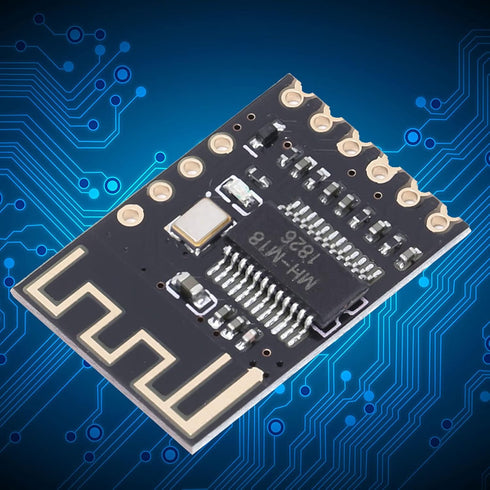

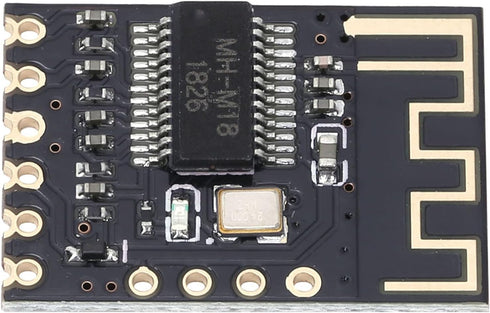

Garosa Bluetooth Board MH-MX8 Audio Receiver Module, Wireless Electronics for Speaker Sound System DIY Conversion

Garosa Bluetooth Board MH-MX8 Audio Receiver Bluetooth Module Wireless Electronics for Speaker Sound System DIY Conversion of Various Sounds Electronic Component(M18)

Garosa Bluetooth Board MH-MX8 - Audio Receiver Bluetooth Module for Speaker Sound System DIY Conversion

Specification: Item Type: M18, M28, M38 for Bluetooth versionFor Bluetooch V4.2 Support for Bluetooth protocolHFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2 Format supportSupport WAV/WMA/FLAC/APE/MP3 un-decoded, stereo two-channel output Operating Voltage5V/3.7V-4.2V Not connected Broadcast state 5.5MA Connection work state20MA Deep sleeping3UA Transmission distance20 meters (empty or low interference environment) Operating temperature-40C to +85°C Sensitivity-87dbm Widely used in various for Bluetooth audio receivers, DIY conversion of various sounds, etc. Package List: PackageList 1: 1 x ModulePackage List 2: 1 x Module PackageList 3: 1 x Module 2 x Female Connector 2 x Male Connector

Key Features

• ✅ For Bluetooth V4.2 version of for Bluetooth automatic technology, supports WAV / WMA / FLAC / APE / MP3 lossless decoding, stereo two-channel output
• ✅ After powering on the module, the phone searches for the for Bluetooth name MH-M18 / MH-M28 / MH-M38, and can play music when connected to for Bluetooth.

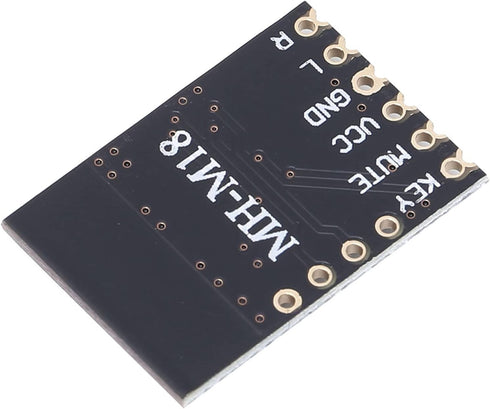

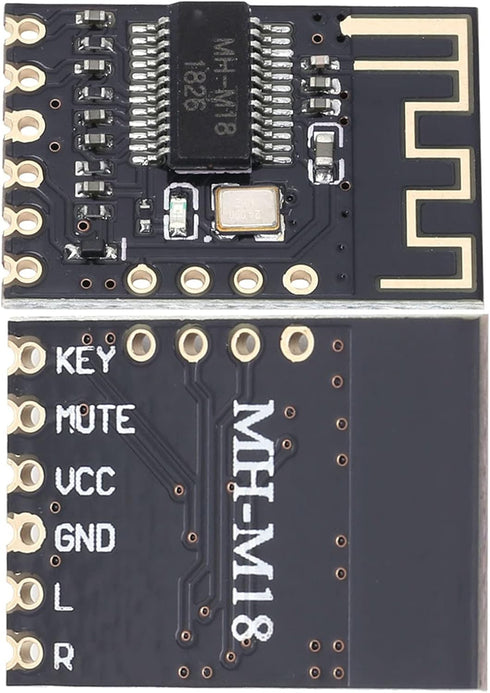

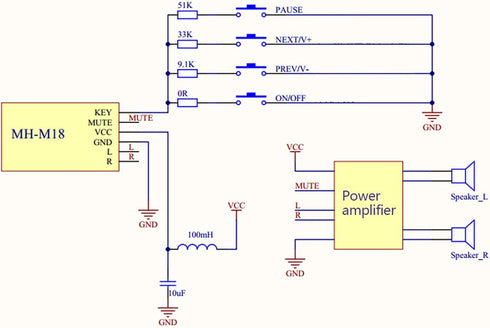

• ✅ M18: MUTE mute control terminal: used to control the power amplifier board. When muting, MUTE outputs a high level of 3.3V, and outputs a low level during playback. Volume power off function: The default output is 100% volume. Press the button to control the volume increase and decrease. If the control volume is less than 15%, the volume output will be 15% after power-on; if the control volume is greater than 15%, the original volume will remain unchanged after power-on.
• ✅ M28: Power supply: It can be directly powered by the MICRO USB for Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board.
• ✅ M38 Power supply: It can be directly powered by the MICRO USB for Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. The maximum working current is 5V2A. It is recommended to use 5V2A regulated power supply for better sound quality. Support USB sound card, free drive (plug and play) Connect the module to the computer with the USB cable, and the computer can play music through the module amplifier output.
