FLIPSKY V4 Wireless Bluetooth Module 2.4G for Electric Skateboard, Based on nrf51_esc Project

FLIPSKY V4 Version Wireless Bluetooth Module 2.4G for Electric Skateboard Based Upon The nrf51_esc Project Wireless DC 2V-12V 115200 baudrate for ESC Project

FLIPSKY V4 Wireless Bluetooth Module 2.4G for Electric Skateboard, Based on nrf51_esc Project

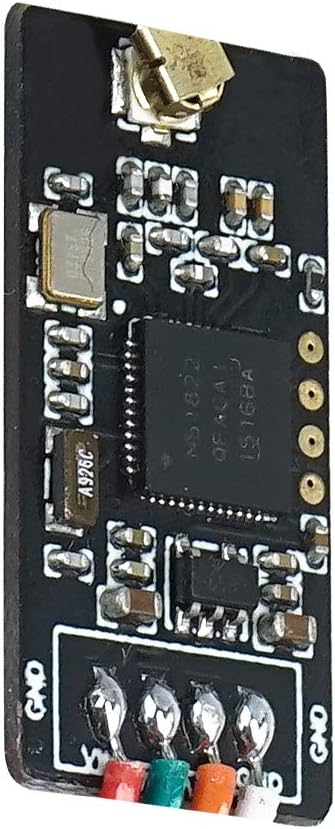

Kindly Reminder: This bluetooth module support Android /IOS mobile device. Used to communicating between the VESC and VESC Tool (mobile) over BLE. Note that the UART port on the VESC must be enabled with a baud rate of 115200 for this to work. The UART port on VESC can work only under 115200 baud Operating voltage: 2.0V ~ 12V Onboard Chip: NRF51822 Actual use distance: The distance to communicate with VESC is about 15 meters Frequency range: 2.4GHz 2.4 GHz multiprotololl RF receiver ARM Cortex-M0 32 bit processor 256kB flash & 16kB RAM PCB size:27mm*13mm 2.0mm seven-pin four-wire connector length:90mm Antenna length:145mm,Net weight:3.5g

Key Features

• ✅ FSBLMO1 Bluetooth Module is developed tocommunicate between FSESC and FSESC tools(Linux and mobile devices) via BLE.
• ✅ It's available to display many real time parameters, including motor current, motor power,duty cycle, battery voltage, battery current, MOStemperature, motor temperature, charging current,charging power, ERPM ( ERPM=rpm x pole pair)and so on.
• ✅ It supports mobile phones to adjust parametersin motor settings, including the General, BLDC, DC,FOC, PID Controllers, Additional info and other parameters.
• ✅ It supports mobile phone to adjust parameters in App settings , including the General, PPM, ADC,UART, Nunchuk Nrf and other parameters.
• ✅ It's available to upgrade firmware by mobilephones.It also supports FSESC terminal input.
• ✅ Kindly Reminder: This bluetooth module support Android /IOS mobile device.
