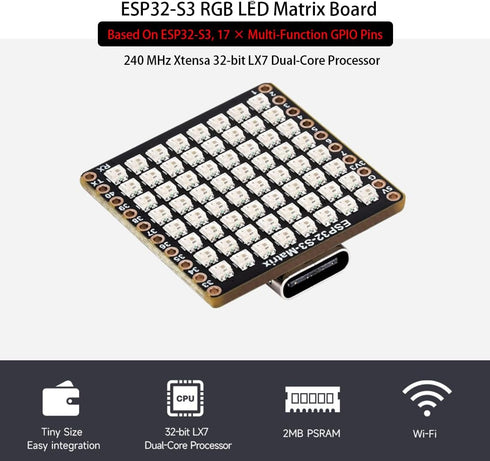

ESP32-S3 Matrix Development Board with 8×8 RGB LED Matrix, QMI8658C Attitude Sensor, 17 Multi-Function GPIO Pins,

ESP32-S3 Matrix ESP32 S3 Development Board with 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, 17 x Multi-Function GPIO Pins, Supports Wi-Fi and Bluetooth LE, Xtensa 32-bit LX7 Dual-Core Processor

ESP32-S3 Matrix Development Board with 8×8 RGB LED Matrix, QMI8658C Attitude Sensor, 17 Multi-Function GPIO Pins,

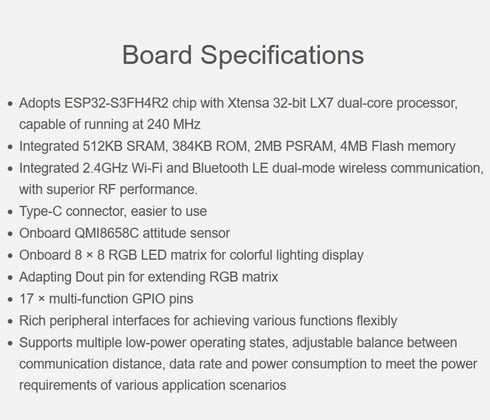

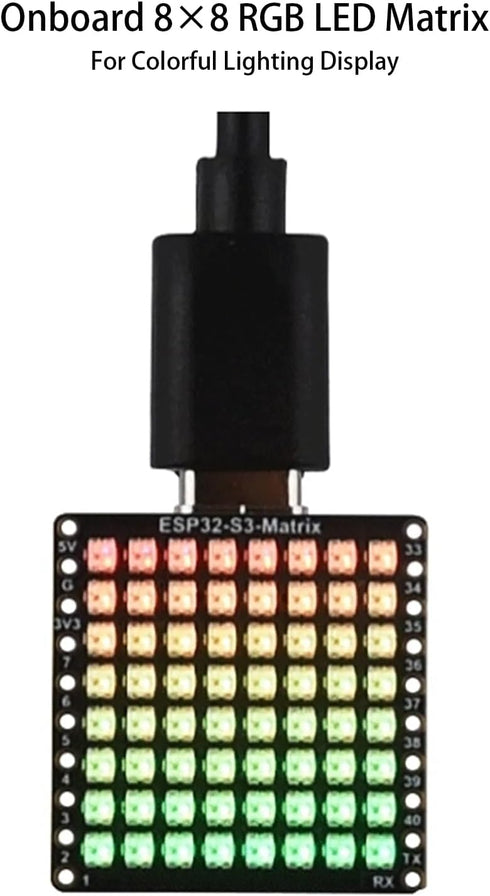

Overview ESP32-S3-Matrix is a compact microcontroller development board with multiple digital interfaces, such as 20x GPIO pin headers, and onboard 8*8 RGB LED matrix, which can be used for displaying cool RGB LED effects or simple images. In terms of hardware, it adopts ESP32-S3 as the main chip, integrates high-performance Xtensa 32-bit LX7 dual-core processor, low-power co-processor, WiFi, Bluetooth, RF module, and other peripheral interfaces, enabling it to be compatible with other devices, and is easy to use. In terms of software, you can choose the ESP-IDF development environment or develop on the Arduino IDE, and you can easily get started with it and apply it to your projects. Specifications Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory WIFI and BLE 5 support: ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support. Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh Type-C connector, easier to use Onboard QMI8658C attitude sensor Onboard 8 × 8 RGB LED matrix for colorful lighting display Adapting Dout pin for extending RGB matrix 17 × multi-function GPIO pins, configurable pin function, allows flexible development and integration Rich peripheral interfaces for achieving various functions flexibly Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios Designed for AIoT applications Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz Powerful AI Computing Capability & Reliable security features Provide Online Development Resources /User Manual: bit.ly/3UwEqEw Package Content ESP32-S3-Matrix x1

Key Features

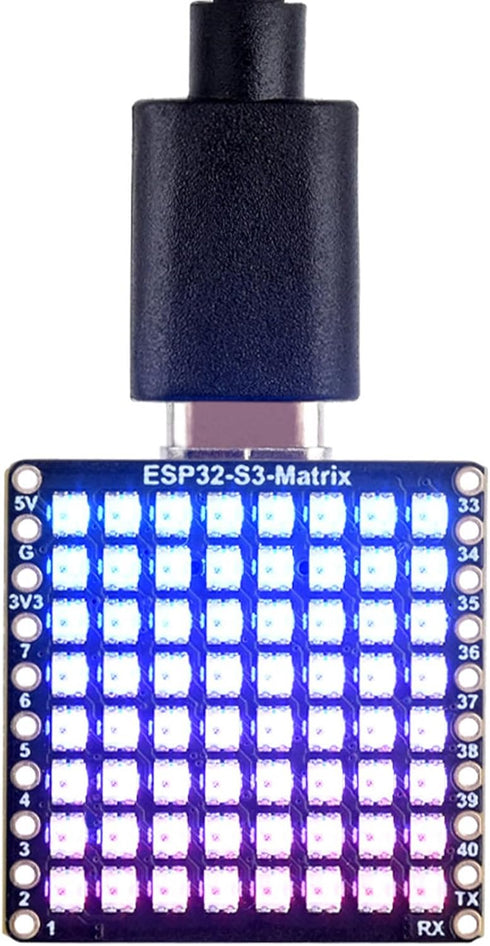

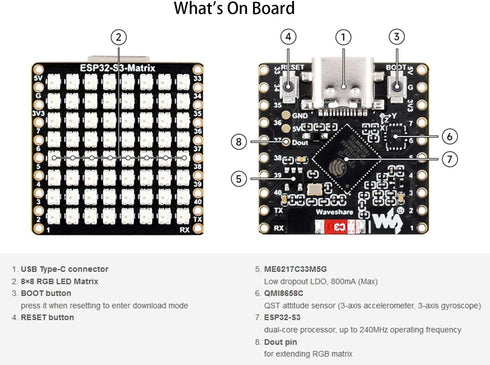

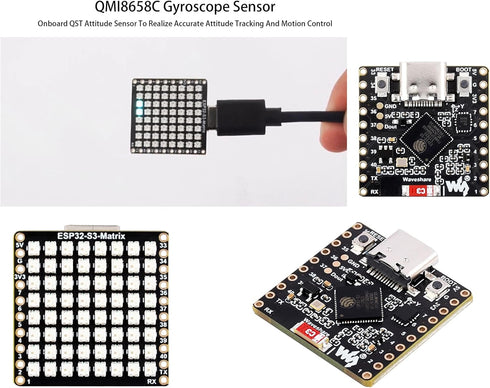

• ✅ ESP32-S3-Matrix Development Board, Based on ESP32-S3, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor. Onboard QST attitude sensor to realize accurate attitude tracking and motion control.

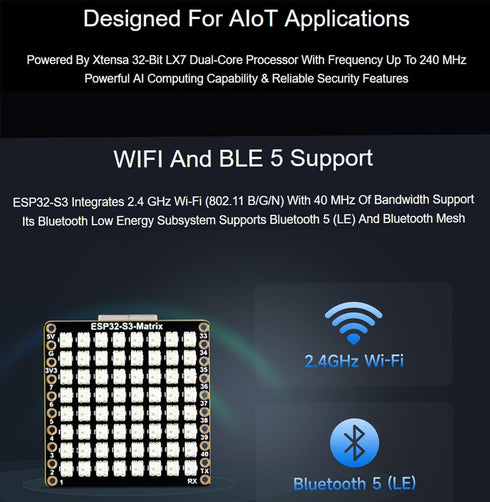

• ✅ Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Designed for AIoT applications, powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz. Powerful AI Computing Capability & Reliable security features
• ✅ Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory.
• ✅ Integrated 2.4GHz W--Fi and BLE dual-mode communication, with superior RF performance.

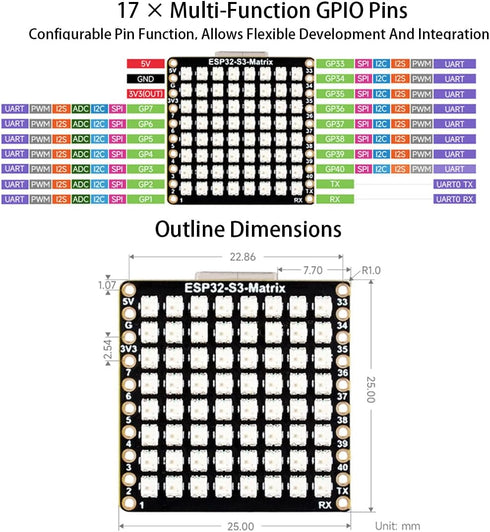

• ✅ 17 × multi-function GPIO pins, configurable pin function, allows flexible development and integration. Type-C connector, easier to use. Rich peripheral interfaces for achieving various functions flexibly.
• ✅ Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
