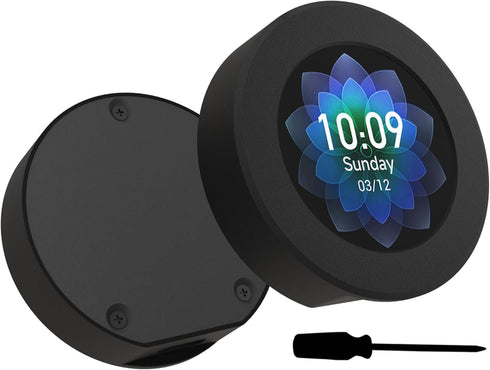

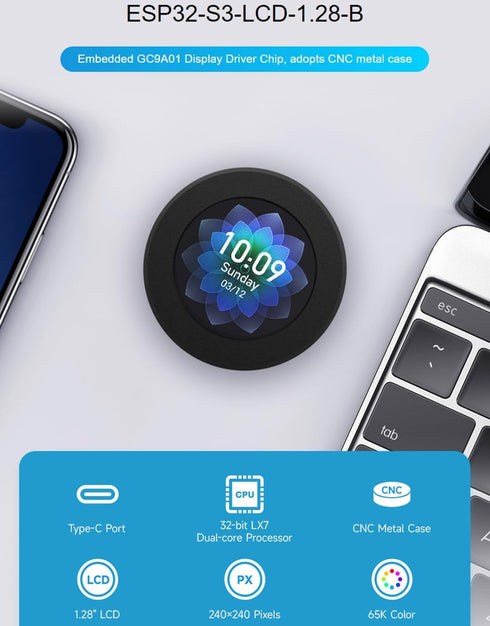

ESP32-S3 Development Board with CNC Metal Case, 1.28inch Round IPS LCD 240x240, 32-bit LX7 Dual-Core, GC9A01, W-i-F-i &

ESP32-S3 Development Board with 1.28inch Round LCD IPS 240x240 Resolution,32-bit LX7 Dual-Core Processor, GC9A01 Display Driver Chip,Supports 2.4GHz W-i-F-i and Blue-too-th 5 (BLE) With CNC Metal Case

ESP32-S3 Development Board with CNC Metal Case, 1.28inch Round IPS LCD 240x240, 32-bit LX7 Dual-Core, GC9A01, W-i-F-i &

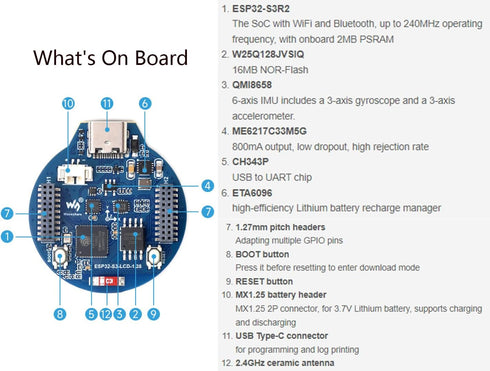

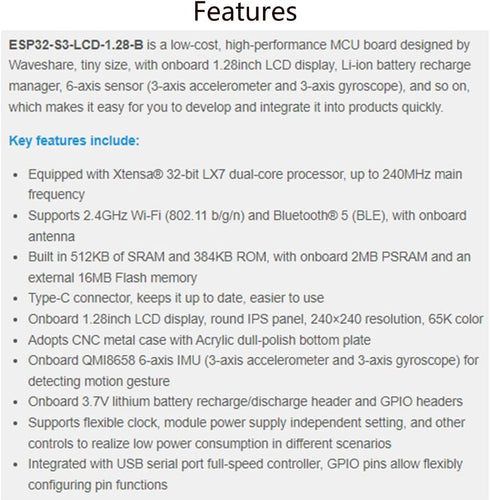

Overview ESP32-S3-LCD-1.28-B is high-performance MCU board designed by Waveshare, with onboard 1.28inch LCD display, batter recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly. The SoC includes hardware encryption accelerators, RNG (Random Number Generator), HMAC (Hash-based Message Authentication Code), and a Digital Signature module, meeting the security requirements of the Internet of Things (IoT). Its various low-power operating modes cater to power consumption needs in IoT, mobile devices, wearable electronics, smart homes, and other application scenarios. Key features 1. Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency 2. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too th 5 (BLE), with onboard antenna 3. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory 4. Type-C connector, keeps it up to date, easier to use 5. Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color 6. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture 7. Onboard 3.7V batter recharge/discharge header and GPIO headers 8. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios 9. Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions 10. Adopts CNC metal case with Acrylic dull-polish bottom plate Provide Online Development Resources /Document/Datasheet/User Manual : bit.ly/3vAodp4 Package Content ESP32-S3-LCD-1.28-B x1 Screwdriver x1

Key Features

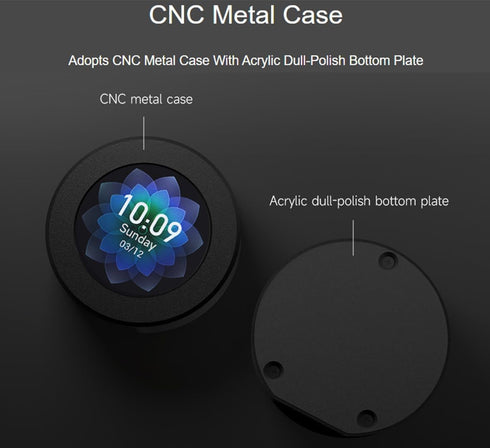

• ✅ ESP32-S3-LCD-1.28-B is high-performance MCU board designed by Waveshare, with Onboard 1.28inch LCD display, round IPS panel, 240 x 240 resolution, 65K color, Embedded GC9A01 Display Driver Chip. With CNC Metal Case
• ✅ Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
• ✅ Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V batter recharge/discharge header and GPIO headers
• ✅ Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

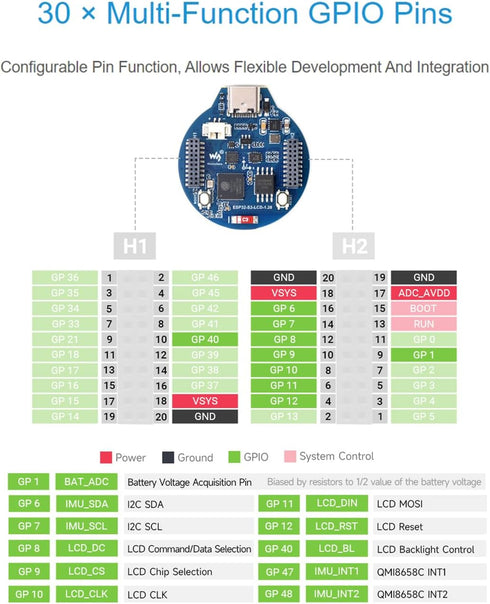

• ✅ Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions. Type-C connector, keeps it up to date, easier to use

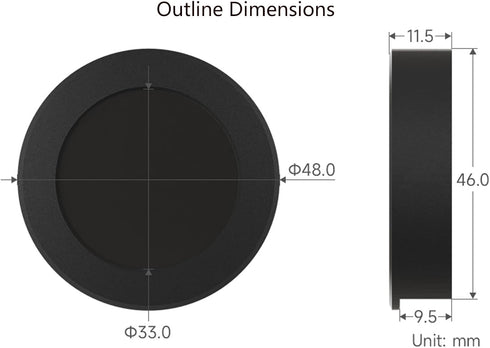

✅ Product Dimensions: 0.35 x 1.88 x 1.2 inches

✅ Color: with 1.28inch LCD without Touch
