ESP32-S3 4.3inch Touch Screen Development Board, Capacitive IPS Display 800x480, Support 2.4GHz Wi-Fi and Bluetooth 5

ESP32-S3 4.3inch Touch Screen Development Board Capacitive IPS Display 800x480, 32-Bit LX7 Dual-Core Processor Support 2.4GHz W-i-F-i and Blue-Tooth 5 (LE), Onboard CAN, RS485, I2C Interface,etc.

ESP32-S3 4.3inch Touch Screen Development Board, Capacitive IPS Display 800x480, Support 2.4GHz Wi-Fi and Bluetooth 5

ESP32-S3-Touch-LCD-4.3B is a microcontroller development board with 2.4GHz W-i-F-i and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

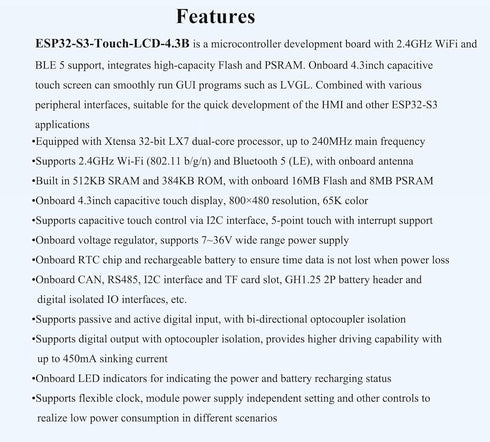

Key Features

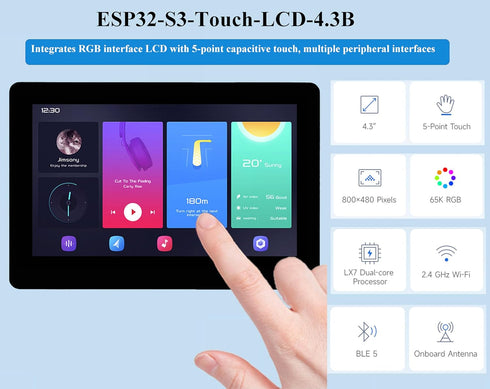

• ✅ ESP32-S3-Touch-LCD-4.3B is a Microcontroller Development Board, Onboard 4.3inch Capacitive Touch Display, 800×480 resolution, 65K color. Can smoothly run GUI programs such as LVGL.

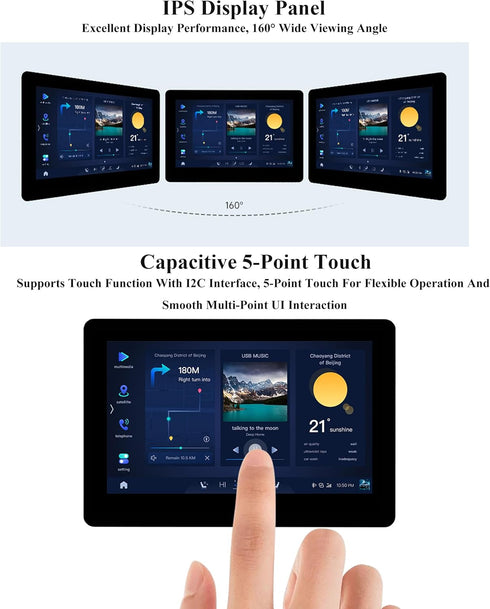

• ✅ IPS Display Panel--Excellent display performance, 160° wide viewing angle.
• ✅ Capacitive 5-point Touch--Supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction.
• ✅ 32-Bit LX7 Dual-Core Processor--Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna.

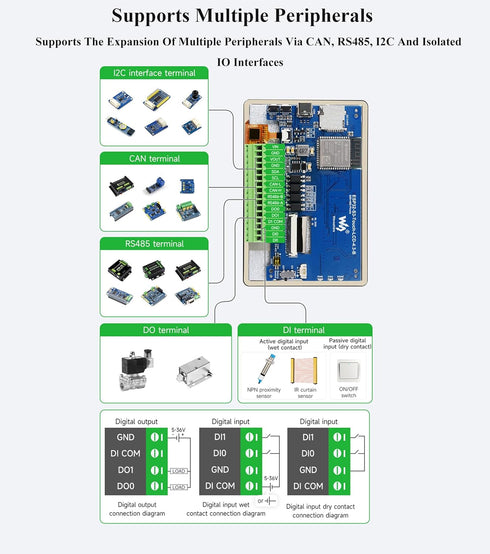

• ✅ Supports Multiple Peripherals--Supports the expansion of multiple peripherals via CAN, RS485, I2C and isolated IO interfaces.

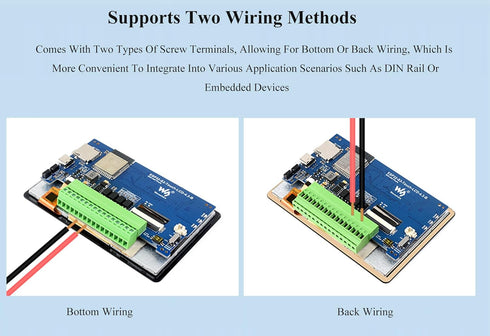

• ✅ Supports Two Wiring Methods--Comes with two types of screw terminals, allowing for bottom or back wiring, which is more convenient to integrate into various application scenarios such as DIN rail or embedded devices.
• ✅ Supports passive and active digital input, with bi-directional optocoupler isolation. Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current.
• ✅ Provide Online Development Resources /User Manual: bit.ly/3LgYUNh
