Elenco AM/FM Radio Kit |Switch Between ICs & Transistors | Solder | Great STEM Project | Superheterodyne Designed to AM

Elenco AM/FM Radio Kit |Switch Between ICs & Transistors | Solder | Great STEM Project | Superheterodyne Designed to AM and FM Broadcasts | SOLDERING REQUIRED

Elenco AM/FM Radio Kit |Switch Between ICs & Transistors | Solder | Great STEM Project | Superheterodyne Designed to AM

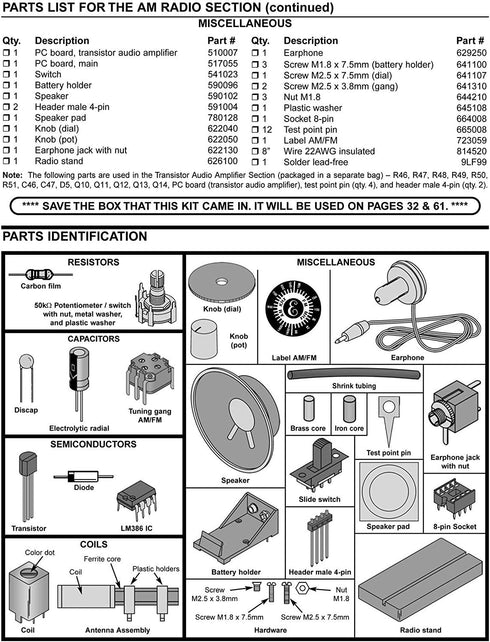

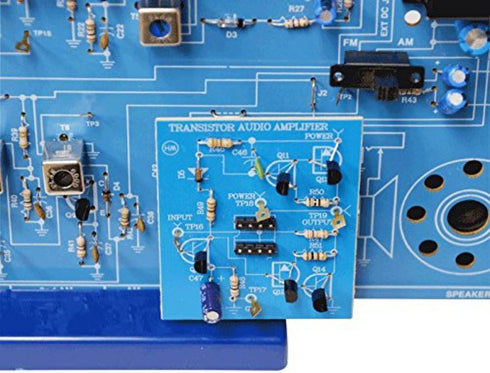

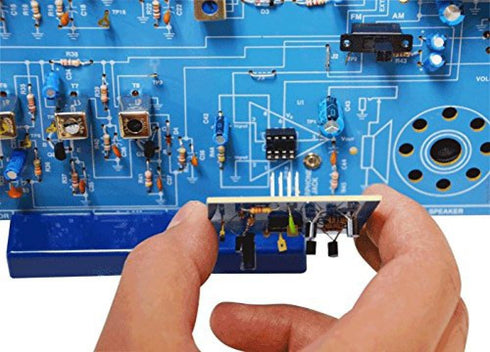

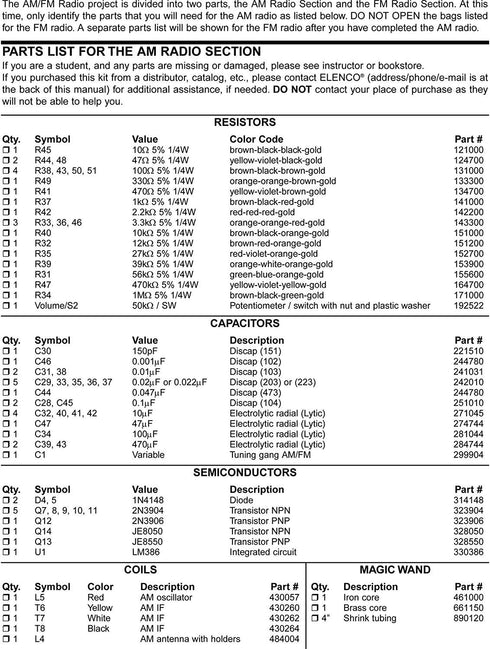

Learn about AM and FM radio technology and the the functional components used in creating AM-FM receivers and amplifiers. 56 page training course is divided into 9 lessons; Audio Amplifier, AM Detector, AM IF, AM Amplifier, AM Mixer & Oscillator, FM Detector, 1st FM IF, 2nd FM IF, FM RF Stages. Superheterodyne designed to receive standard AM and FM broadcast frequencies. New transistor module allows you to switch between the modern integrated circuit (IC) technology and the original transistor technology. Includes radio mounting stand. PLEASE NOTE: The AM/FM Radio project is divided into two parts, the AM Radio Section and the FM Radio Section. Initially, only identify the parts that you will need for the AM radio as listed in the manual. DO NOT OPEN the bags listed for the FM radio. A separate parts list will be shown for the FM radio after you have completed the AM radio. 9 volt battery needed but not included. Model AM/FM-108TK - 4 Transistors, 1 Diode and 1 IC - Training course of 64 pages is divided into 9 lessons: Audio Amplifier, AM Detector, AM IF, AM Amplifier, AM Mixer and Oscillator, FM Detector, 1st FM IF, 2nd FM IF, FM RF Stages. Includes radio mounting stand. Requires one 9V battery. This is an unassembled kit and requires assembly. The most important factor in assembling this Superhet 108 AM/FM Transistor and IC Radio Kit is good soldering techniques. The included Detailed Manual provides easy to follow instructions to learn these techniques and complete this kit.

Brand: Elenco

accessories computer, accessories, computers accessories, between, transistors, superheterodyne designed, designed, transistors solder, project, ics, great stem, project superheterodyne Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ Do & Learn - Soldering Required
• ✓ 56 page Training Course is divided into 9 lessons
• ✓ Audio Amp, AM Detector, AM IF, AM Amp, AM Mixer & Oscillator, FM Detector, 2 x FM IF, FM RF Stages
• ✓ Electronics training course appropriate for High School and University level curriculum

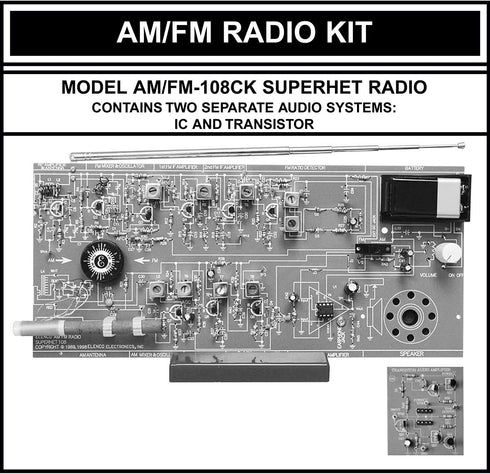

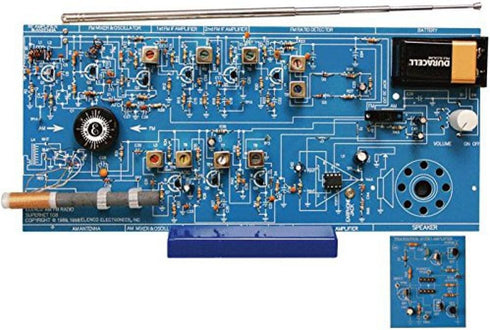

• ✓ Superheterodyne designed to receive standard AM and FM broadcast frequencies
• ✓ "Superheterodyne receiver of AM and FM broadcast frequencies
• ✓ Unique PCB design lets you place parts over corrosponding symbols on the printed circuit board

Product Details

• ✓ Item Weight: 12 Ounces
• ✓ Model Number: AMFM108CK
• ✓ Color: Blue
• ✓ Power Source: Battery Powered
