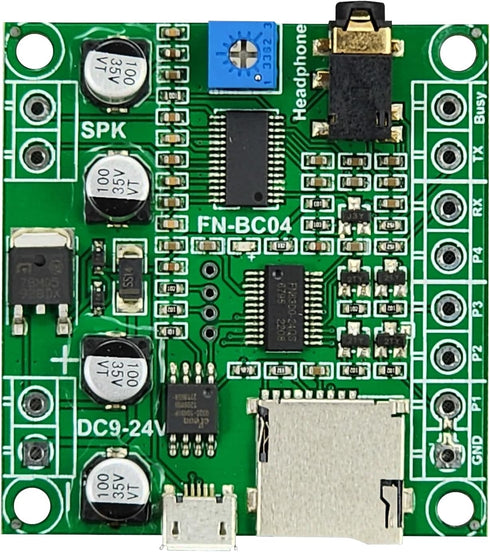

4 Buttons Triggered MP3 Player Board with 15W Amplifier and Solder Pads
Electronics123.com, Inc. 4 MP3 15W Buttons Triggered Player Board with Amplifier and Solder Pads

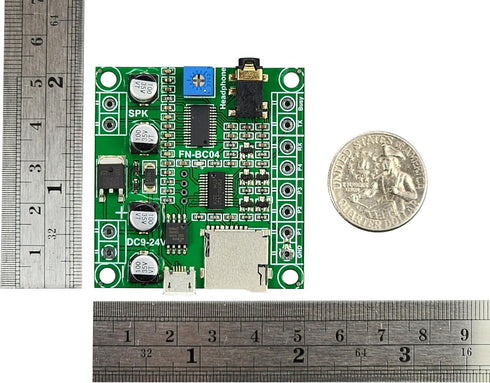

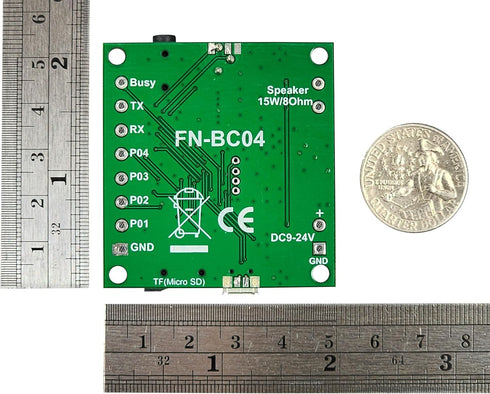

A high-quality audio decoder which, supports MP3 and WAV audio formats. Sampling rates supported: 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 (KHz). 24 bit DAC output and supports dynamic range 90dB and SNR 85dB. Supports one-on-one 4 button trigger control mode and RS232 serial port control mode. In button control mode, it plays back 4 sounds one-on-one by negative triggering. Uses a MicroSD card and the built-in SPI flash memory as storage. Built-in 4MB SPI flash memory by default. Supports max. 32GB micro SD card. Possible to load audio files to the flash memory directly via the micro USB port. Connecting to a computer is similar to using a USB flash drive with a PC. A built-in mono 15-watt amplifier that can drive a 15 watt (8-ohm) speaker directly. Or 5 watt (if using a 4-ohm speaker) Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or connect to an external amplifier. Adjustable sound volume with the onboard potentiometer. Busy Signal Output Port Wide range for power input (DC 8-24V). PCB size: 52mmx49mm This is the solderpad version
Brand: Electronics123.com, Inc.
15w, home, triggered, amplifier solder, electronics123.com, inc., solder, mp3, home theater, pads electronics, triggered mp3, amplifier, mp3 player Electronics Home Audio Home Theater Receivers & Amplifiers Amplifiers
Key Features
- ✓ With high quality audio decoder, supports MP3 and WAV audio formats. Sampling rates supported: 8/11.025/12/16/22.05/24/32/44.1/48(KHz). 24 bit DAC output and supports dynamic range 90dB and SNR 85dB.

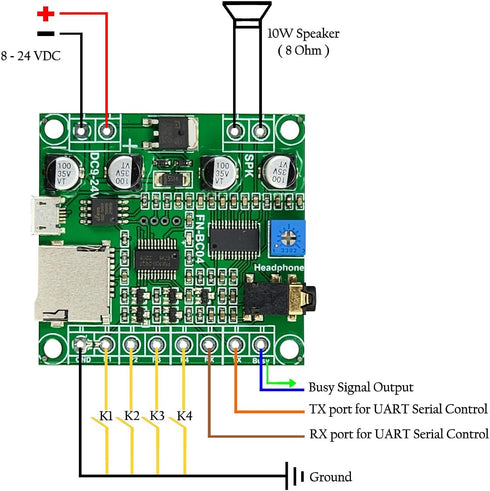

- ✓ Supports one-on-one button control mode and UART serial port control mode. In button control mode, it plays back 4 sounds one-on-one by negative triggering. Uses micro SD card and the built-in SPI flash memory for storage devices.
- ✓ Built-in 4MB SPI flash memory by default. Supports max. 32GB micro SD card. Possible to load sound files to the flash memory directly via the USB connecting with computer like using a USB flash drive.
- ✓ Check description below for links to instructions and datasheets!
- ✓ Skill Level : Assembled and Tested
Product Details
- ✓ Item Weight: 0.03 Pounds
- ✓ Color: Green
