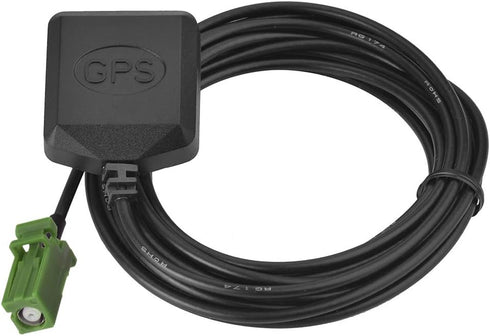

Eightwood 8100NEX 8200NEX 8201NEX Active GPS Antenna Green AVIC Connector for GPS Navigation Receiver AVIC Car Stereo

Eightwood Active GPS Antenna Green AVIC Connector for GPS Navigation Receiver AVIC 8100NEX 8200NEX 8201NEX Car Stereo Head Unit

Eightwood 8100NEX 8200NEX 8201NEX Active GPS Antenna Green AVIC Connector for GPS Navigation Receiver AVIC Car Stereo

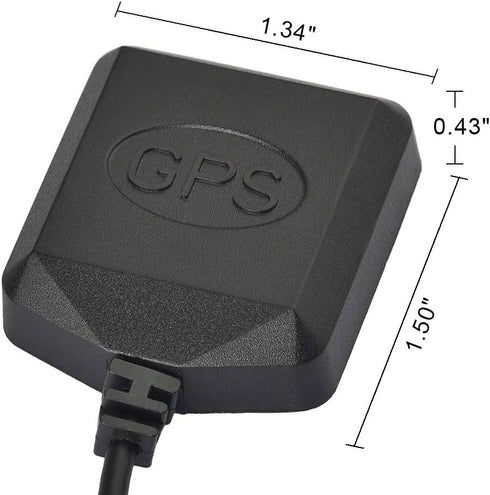

Founded in 2012, Eightwood specializes in developing and manufacturing RF antennas and connectivity accessories for a wide range of applications, including WiFi, 4G, ham radio, FM AM, automotive stereo, and more. Count on us for high-quality products, timely technical advice, and efficient after-sales service. Let us provide you with superior connectivity solutions. Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Dieletric Antenna Center Frequency:1575.42MHz+-3MHz V.S.W.R<1.5:1 Band Width:+-5 MHz Impendence:50 ohm Peak Gain >3dBic Based on 7x7cm ground plane Gain Coverage >-4dBic at -90<0<+90 celsius degree (over 75% Volume) Polarization:RHCP LNA/Filter LNA Gain (Without cable):28+/-3dB Noise Figure 1.5dB Typ. Filter Out Band Attenuation (f0 =1575.42MHz) 7dB Min f0+/-20MHZ ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ V.S.W.R <2.0 DC Current 5mA /11mA/15mA Max Mechanical Size:1.50"x1.34"x0.43"/3.8cm x3.4cm x1.1cm Extension Cable:RG174 3 meter/9.8 feet Connector: AVIC green Mounting:Magnetic base Housing:Black Environmental Working Temp:-40 to +85 Storage Temp:-45 to +100 Vibration Sine sweep 1g(0-p)10-50-10Hz each axis Relative Humidity:95% non-condensing Weatherproof:100% Waterproof

Brand: Eightwood

antenna, 8200nex 8201nex, stereo, receiver, head, gps system, 8100nex, 8100nex 8200nex, navigation, 8201nex car, head unit, avic Electronics GPS, Finders & Accessories GPS System Accessories Antennas

Key Features

• ✓ Antenna Frequency:1575.42MHz+-3 MHz; LNA Gain:28+-3db; DC Voltage: 3V to 5V; Polarization RHCP; Impendence:50 ohms

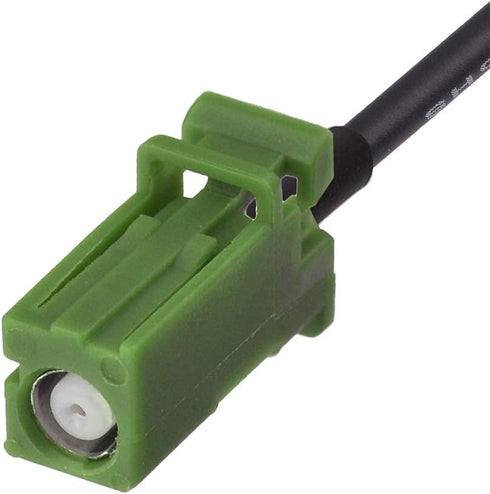

• ✓ Antenna Connector:AVIC green connector,Extension Cable :3 meter/ 9.8 feet, Coax RG174; Package Includes: 1pc Pioneer AVIC GPS antenna
• ✓ Compatible with Pioneer AVIC F7010BT,F900BT,F90BT,F700BT,X910BT,X710BT,Z110BT, Z120BT, Z130BT, X7115BT, F310, F70, X920, X930, X9110, X510; 5000NEX, 5100NEX, 5200NEX, 6000NEX, 6100NEX, 6200NEX, 6201NEX, 7000NEX, 7100NEX, 7201NE, 8000NEX, 8100NEX, 8200NEX, 8201NEX
• ✓ Compatible with Pioneer AVIC EVO1-DT2-C-GR,EVO1-DT2-C-OE,EVO1-G72-BBF,EVO1-G72-DMD,EVO1-G72-QYI,EVO1-OC2-MTB, EVO1-PL2-VAL,F88DAB,F980BT,F980DAB,Z610BT,Z620BT,Z710DAB,Z720DAB,Z810DAB,Z820DAB,Z910DAB,Z920DAB
• ✓ Features: Strong magnetic base mounting,Compact construction/ Low profile, Fully waterproof, Excellent temperature stability, Low noise figure

Product Details

• ✓ Model Number: EWUA0100
• ✓ Color: AVIC green antenna
