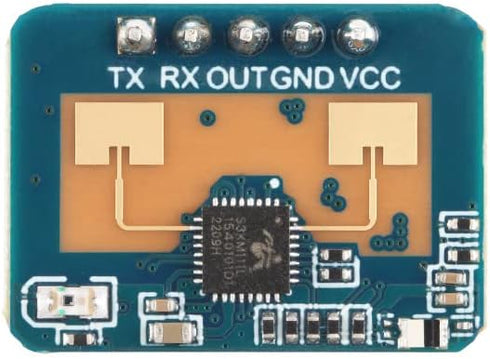

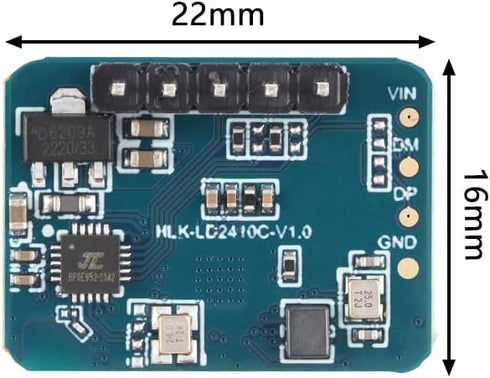

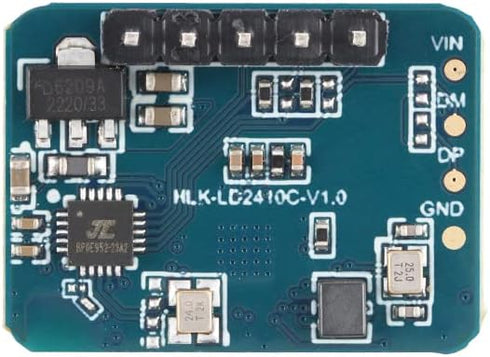

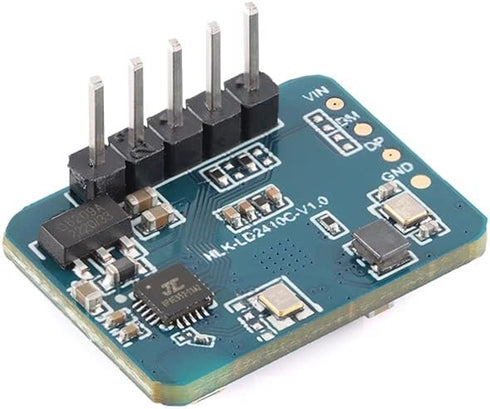

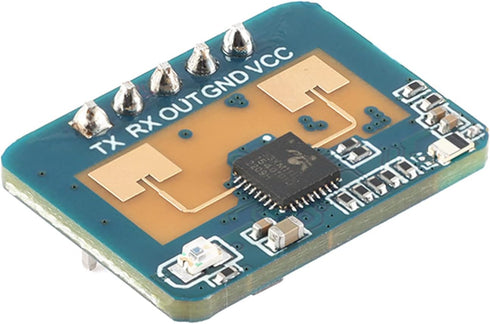

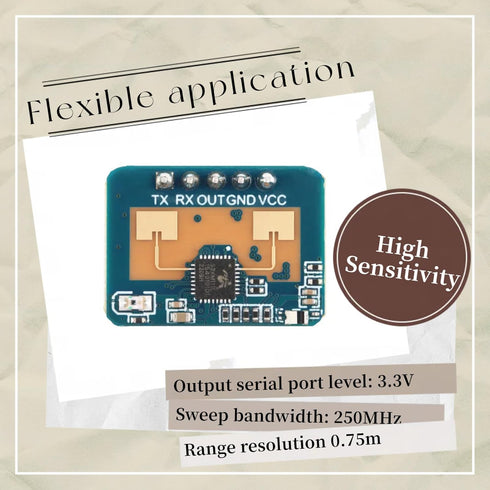

EC Buying LD2410C HLK-LD2410 LD2410 24GHz Sensor Module Human Presence Radar Sensor Module Millimeter Wave Radar Sensor

LD2410C Sensor Module HLK-LD2410 Human Presence Radar Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output

EC Buying LD2410C HLK-LD2410 LD2410 24GHz Sensor Module Human Presence Radar Sensor Module Millimeter Wave Radar Sensor

EC Buying, Your One-Stop Shop for Electronics! We have a wide range of product lines, covering various electronic components such as module, development board, resistors, capacitors, diodes, transistors, integrated circuits, etc., meeting the needs of different industries and fields. Visit the Store Visit the Store Visit the Store Visit the Store We are always committed to innovation and breakthroughs in the field of electronic components, providing electronic component products to global customers with a professional and focused attitude Sensor module, development board, resistors, capacitors, diodes, transistors, integrated circuits, etc., meeting the needs of different industries and fields We can also customization, such as component type and specification customization, material selection, appearance customization, and module function customization Product characteristics Frequency: 24GHz~24.25GHz Modulation mode: FMCW Detection distance: 0.75m~6m adjustable Detection angle: 60 Power supply: 5V Current: 79mA Output serial port level: 3.3V Sweep bandwidth: 250MHz Range resolution 0.75m Ambient temperature: - 40~+85 Data format: serial port ASCII output/high and low level 3.3V&0V Module size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin) The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mm RX, serial port receiving TX, serial transmission OUT, inductive output high level GND, power ground VCC, power supply input (5V voltage)

Brand: EC Buying

radar sensor, ism band, module ld2410, band serial, electronics accessories, output electronics, human presence, ld2410c, sensor, vehicle electronics, port level, human Electronics Car & Vehicle Electronics Vehicle Electronics Accessories Radar Detectors

Key Features

• ✓ LD2410C is a high sensitivity 24GHz human presence state sensing module. Its working principle is to use FMCW FM continuous wave to detect human targets in the set space
• ✓ The module combines radar signal processing and accurate human body sensing algorithm to realize high sensitivity human body presence state sensing, and can calculate the target distance and other auxiliary information
• ✓ In addition to being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme
• ✓ The product can output the detection results in real time and quickly, with the maximum sensing distance of 5 meters and the distance resolution of 0.75 m
• ✓ Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products

Product Details

• ✓ Power Source: [DC Power Supply]
