DTech USB to TTL Serial 5V Adapter Cable with FTDI FT232RL Chip, 6 Pin 0.1 inch Pitch Female Socket Header for Windows

DTech USB to TTL Serial 5V Adapter Cable with FTDI FT232RL Chip 6 Pin 0.1 inch Pitch Female Socket Header UART IC Windows 11 10 8 7 Linux MAC OS (6ft, Black)

DTech USB to TTL Serial 5V Adapter Cable with FTDI FT232RL Chip, 6 Pin 0.1 inch Pitch Female Socket Header for Windows

6-Foot FT232RL FTDI chip USB TTL serial adapter cable for 5V logic level serial communication It is built with FTDI FT232 chip, FTDI’s royalty-free VCP allow for communication as a standard COM port and D2XX ‘direct’ drivers provide DLL application programming interface; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc. NOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on FTDI official website The original FTDI chip is embedded in the USB-A end; 6 way 0.1” header connector with VCC (5V power) and GND (ground), as well as RXD, TXD, RTS and CTS at 5 V logic level. Applications: Upgrading Legacy Peripherals to USB Interface Microcontroller UART or I/O, FPGA / PLD to USB Replace MAX232 type level shifters allowing for direct connection of products to PC Industrial Control / USB Software / Hardware Encryption Dongles Features - The I/O pins of the FTDI wire are configured to operate at 5.0V logic level - Entire USB protocol handled by the electronics in the cable; - UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity; - Data transfer rates from 300 to 3M baud rate at TTL levels; - Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking; - Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required; - UHCI / OHCI / EHCI host controller compatible Specific Interfaces: USB 2.0 type A Male Port ; 6 pin Female Socket Header Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10,11 (32 and 64-bit); Mac OS 8/9 , OS-X; Linux 2.4 and greater What’s Included 1 x USB to Serial TTL Level Converter Cable 1 X User Manual

Key Features

• ✅ 6 ft FT232 chip USB to TTL serial adapter (with 6 pin 0.1” pitch female socket header) connects devices with 5V logic level UART signals interface to a laptop via USB port
• ✅ A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

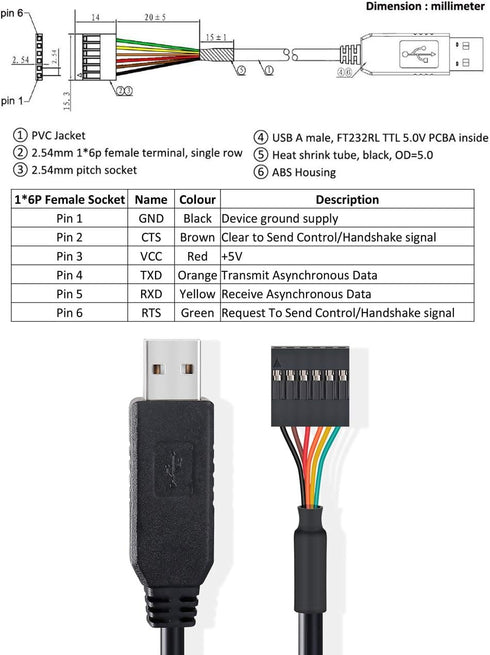

• ✅ 6 feet FTDI chip USB to TTL serial cable (6 way outputs, Single-In-Line ) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND
• ✅ FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM
• ✅ 6 pin header 5V TTL to USB converter cord is compatible with Windows 11,10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, Mac OS, Linux 2.4 and greater; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.

✅ Color: black
