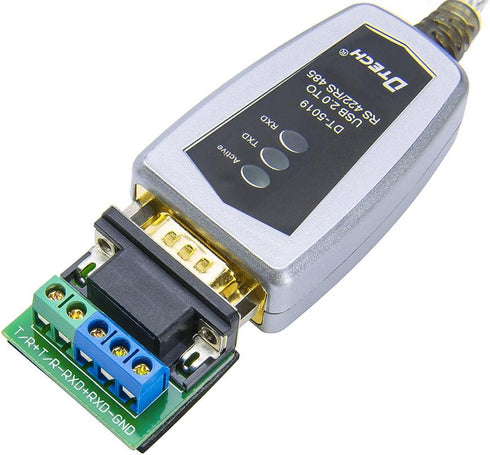

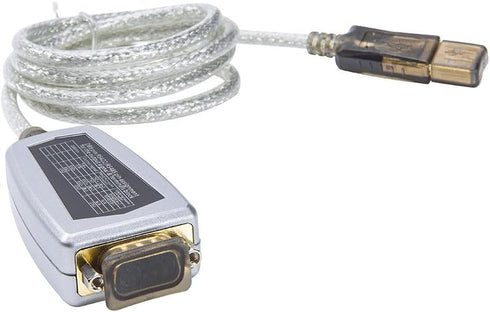

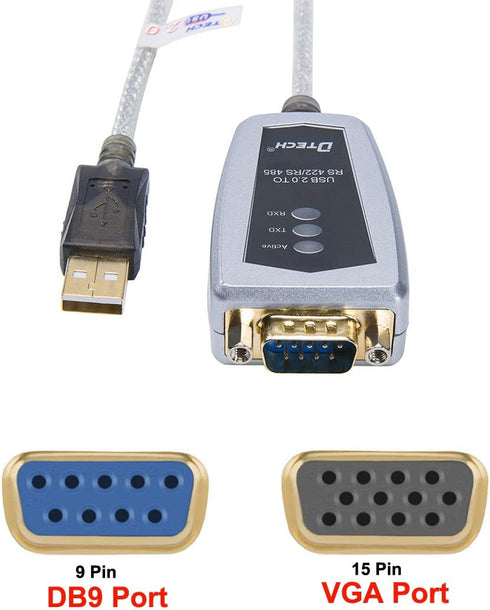

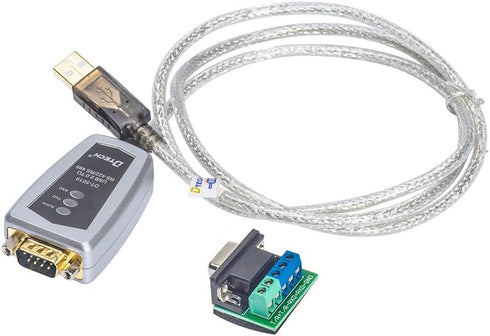

DTECH 6 Feet USB to RS422 RS485 Serial Port Converter Adapter Cable with FTDI Chip | Supports Windows and Mac

DTECH 6 Feet USB to RS422 RS485 Serial Port Converter Adapter Cable with FTDI Chip Supports Windows 11 10 8 7 XP Mac

DTECH 6 Feet USB to RS422 RS485 Serial Port Converter Adapter Cable with FTDI Chip | Supports Windows and Mac

DTECH serial to USB adapter allows you to connect RS422 or RS485 serial devices to computer via USB, without any troubles like computer freeze, IRQ, DMA or COM port conflict. With noise immunity and multiple drops capability (up to 32), the USB to RS485 converter with FTDI chip supports reliable signal conversion between serial devices and PC. With power, TX and RX indicators to help you check the connection and communication activity, which is very helpful when troubleshooting. High quality industrial USB serial dongle features baud rate auto-detected, zero delay automatic transmission, and automatic hand-shaking protocol, so you can get high speed data transfer over serial port. With 600W static surge and 15KV static protection to effectively protect a costly and sensitive control equipment against electrical damage. Note:Please do NOT connect the adapter to a serial device until the driver installed on computer. If need advice on driver installation, please email us any time. Specific TIA/EIA RS422/RS485 Standard; USB 2.0 Max Baud rate: 921600bps Max Distance (RS485/422 End): 984ft (300m) at 921600bps, 1968ft (600m) at 38400bps, 3937ft (1.2km) at 9600bps Working modes: asynchronous. Point to point or point to multi point; 2 line half duplex and 4 line full duplex. Application fields: Factory automation/Distributed control system, LED INFO display equipment , PLC control, SCADA, Measure instruments and monitoring system, CNC management, Medical automation, Building automation, Check on work attendance, laboratory testing and other devices where mission critical applications are required What’s Included 1 x USB to RS485 RS422 Serial Cable 6ft 1 x 9 Pin RS232 female to 5 position Terminal Board 1 x Mini CD

Key Features

• ✅ RS485 Serial to USB adapter enables you to make a stable connection for your PC and RS485 or RS422 device via USB port, no computer freeze, IRQ, DMA or COM port conflict
• ✅ USB to RS485 converter with FTDI chip supports you the widest possible OS compatibility ( Windows 11, 10, 8, 8.1, 7, Vista, XP, Linux and Mac )

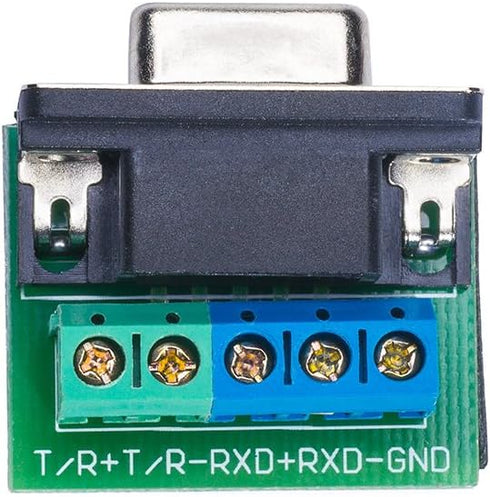

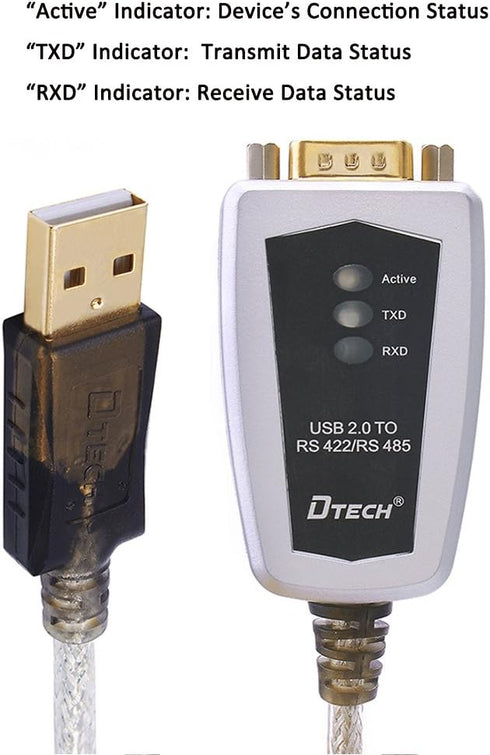

• ✅ With power, TX and RX LED indicators to check connection and communication activity; terminal block is well-labeled for you to easily wire it to your device correctly
• ✅ Shielded serial to USB adapter cord supports 600W static surge and 15KV ESD protection to protect devices and ensures safe, high speed data communication

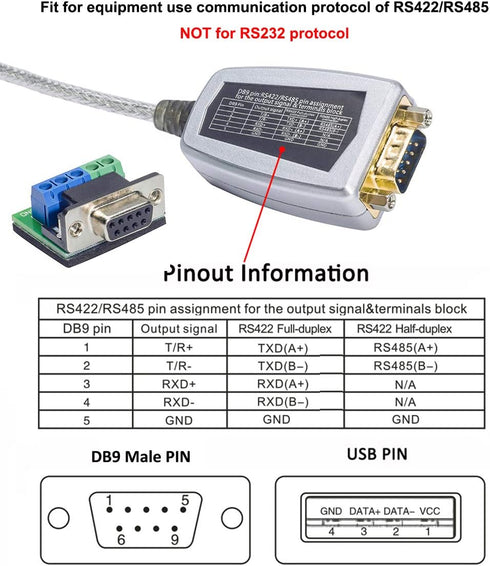

• ✅ Supports 4 wires RS 422 full duplex, 2 wires RS 485 half duplex; point to point, point to multi-point communication; transmission distance up to 1.2 km (the longer distance, the lower baud rate)

✅ Color: black
