DIYmalls BN-220 NMEA-0183 9600bps 1Hz GPS Module TTL Dual GPS Glonass w/Flash for Arduino RC FPV Drone Flight Control

BN-220 GPS Module TTL Dual GPS Glonass w/Flash NMEA-0183 9600bps 1Hz for Arduino RC FPV Drone Flight Control

DIYmalls BN-220 NMEA-0183 9600bps 1Hz GPS Module TTL Dual GPS Glonass w/Flash for Arduino RC FPV Drone Flight Control

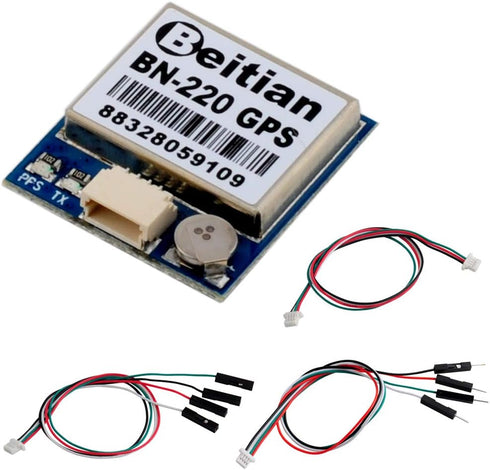

LoRa OLED TFT SPI LCD ESP32 with Display Nextion Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store BN-220 is a small gps receiver module, with 4M flash to save configuration, no compass. It is compatible with arduino, flight control and windows. When the blue light flash, it means there is data output. When the amount of output data is large, the blue light will always be on. Dimension :22mm*20mm*6mm Operation Voltage: 3.6V - 5.5V ( Typical 5V) Channels : 72 Searching Channel Support Rate : 4800bps to 921600bps,Default 9600bps Data Level : TTL or RS-232,Default TTL level Data Protocol : NMEA-0183 or UBX, Default NMEA-0183 Single GNSS : 1Hz-18Hz Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Brand: DIYmalls

9600bps 1hz, control electronics, gps system, module ttl, dual gps, accessories gps, finders accessories, finders, flash, flight control, 1hz, electronics Electronics GPS, Finders & Accessories GPS System Accessories

Key Features

• ✓ When you use it for pi, there is no driver installation needed but you need to install software
• ✓ When you power up bn 220 GPS module the first time in a new location, it always takes longer to find satillites. This is referred to as cold start. Once youve done it the first time, later when you restart bn220 GPS module, it will get a lock much faster.
• ✓ bn220 gps has flash to save configuration, so you do not need to reset data next time when you use it. But bn220 gps doesn't have compass. If you need gps with flash and compass, please check bn-880 gps via "Visit the DIYmalls Store"
• ✓ Data Level : TTL or RS-232,Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable
• ✓ If you have any problem, please do as follow: click "DIYmalls"(you can find "Sold by DIYmalls" under Buy Now button), in the new page, click "Ask a question".

Product Details

• ✓ Item Weight: 0.35 Ounces
