Dialog DA14531 BLE Ultra Low Power Consumption Bluetooth 5.1 Module

Dialog DA14531 BLE ultra low power consumption low energy bluetooth 5.1 module

Dialog DA14531 BLE Ultra Low Power Consumption Bluetooth 5.1 Module

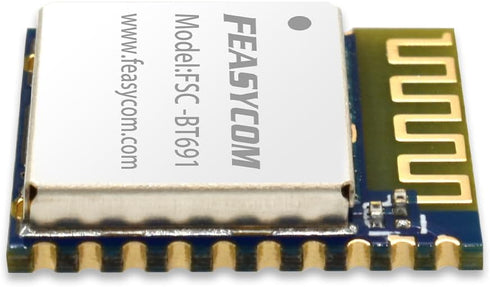

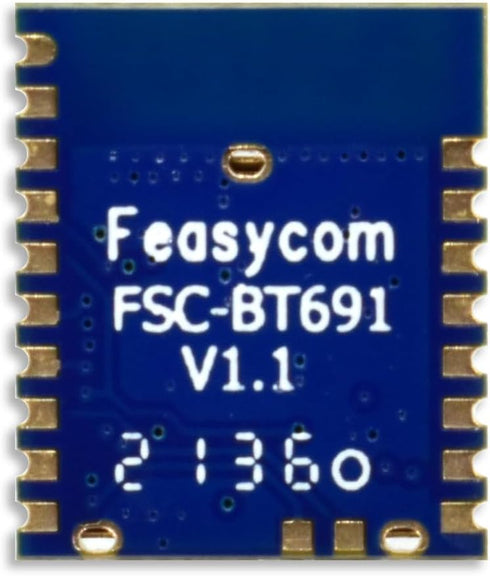

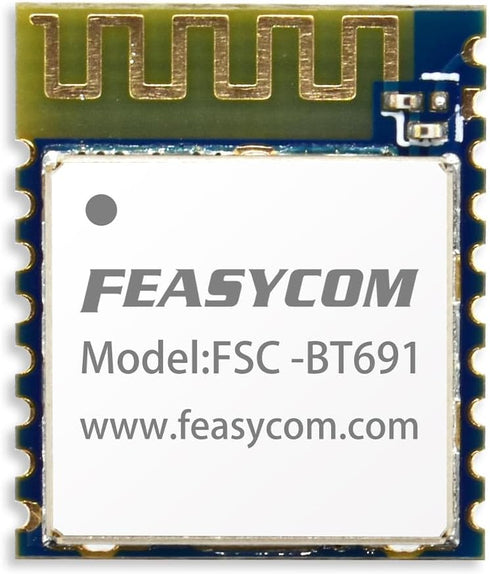

FSC-BT691is an ultra-low-power Bluetooth module that uses the Dialog BLE 5.1 chip DA14531, supports UART/I2C/SPI interfaces. FSC-BT691is an ultra small size Bluetooth 5.1 module with onboard antenna. Its ultra-small size is only 10mm * 11.9mm * 2mm, which provides users with ultra-high flexibility and multiple possibilities. FSC-BT691 Ultra-small size BLE 5.1 module s technical parameters: Bluetooth module model: FSC-BT691 Bluetooth version BLE 5.1 Chipset DA14531 Dimension: 10mm x 11.9mm x 2mm Interfaces: UART, I2C, SPI Profiles: GATT Peripheral Frequency: 2.402-2.480 GHz Transmit power: -19.5dBm ~ 2.5dBm Power supply: 1.65V-3.6V Antenna: PCB onboard antenna, supports external antenna Power Consumption: 1.6uA (Sleep Mode) Storage Temperature: -50 to +150 Operating Temperature: -40 to +85 Applications Beacon Medical application Disposables Proximity Tags and Trackers Smart Watches HID Device (Human Interface Device) Industrial Applications

Key Features

• ✅ DA14531 chip, Bluetooth 5.1 low energy module, compatible with iOS and Android
• ✅ Coverage up to 65m(165ft),transmit Power: 2.5dBm, 10K Byte high transmit speed

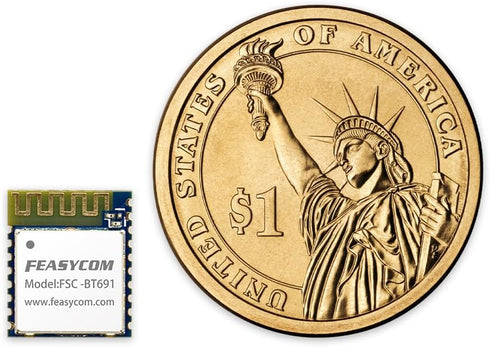

• ✅ Its ultra-small size is only 10mm * 11.9mm * 2mm, which provides users with ultra-high flexibility and multiple possibilities.
• ✅ Support communicating with the FeasyBlue app and many other Bluetooth apps

✅ Product Dimensions: 0.39 x 0.47 x 0.08 inches
