DEVMO MP3 WTV020-SD 2560 R3 U-Disk Audio Player TF Micro SD Card Voice Module Sound Compatible with Ar-duino PIC UNO

DEVMO U-Disk Audio Player TF Micro SD Card Voice Module MP3 Sound WTV020-SD Compatible with Ar-duino PIC 2560 UNO R3

DEVMO MP3 WTV020-SD 2560 R3 U-Disk Audio Player TF Micro SD Card Voice Module Sound Compatible with Ar-duino PIC UNO

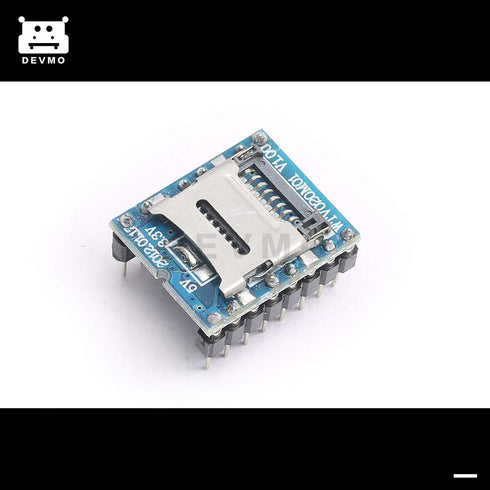

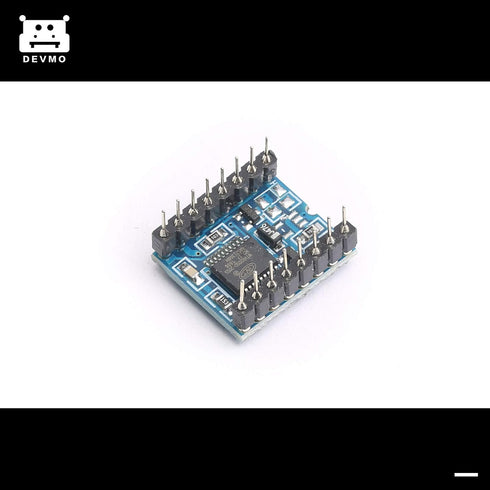

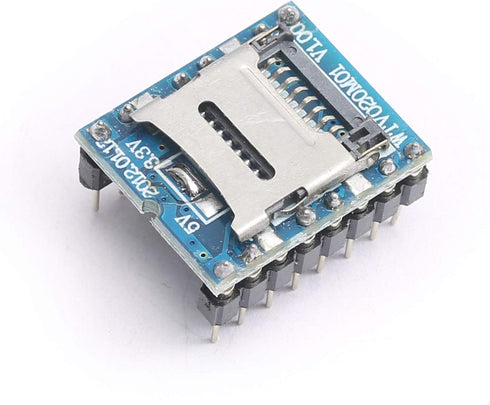

WTV020-SD voice module SD card voice module Game console voice module MP3 module 1. Product features The product is a WTV020 chip external SD card module, supporting 32M1GBit capacity cards; Support FAT file system, SD card as storage carrier; Support playing WAV and 4Bit ADCPM format files; Support automatic folder recognition and voice file playback; Can play background music and interstitial advertising slogans; Control methods include button control, two-wire control and UART232 serial port control; The WTV main control chip is available in WTV020-16SOP and WTV020-20SOP packages, both of which are compatible; It can play any segment of voice; Working voltage: DC2.63.6V; The storage contents are classified by folders for easy operation. 2. Product overview WTV020 external SD card voice module, the main control chip selects WTV020-16S and WTV020-20S packaged chips. The voice content update is directly replaced on the PC through the SD card reader. The control method is also changed in a TXT file stored in the SD card. The module supports FAT file system. Support WAV and ADPCM file playback. Support two-wire serial port control mode, button mode and UART232 serial port mode. Can automatically recognize the voice sampling rate and voice file format.

Brand: DEVMO

devmo, module mp3, sound wtv020, disk audio, mp3, 2560, pic, 2560 uno, module, pic 2560, devmo disk, electronics computers Electronics Computers & Accessories Computer Accessories & Peripherals Cables & Accessories Cables & Interconnects

Key Features

• ✓ The product is a WTV020 chip external SD card module, supporting 32M1GBit capacity cards;
• ✓ Support FAT file system, SD card as storage carrier;
• ✓ Support playing WAV and 4Bit ADCPM format files;
• ✓ Support automatic folder recognition and voice file playback;
• ✓ Can play background music and interstitial advertising slogans;

Product Details

• ✓ Item Weight: 0.02 Kilograms
• ✓ Color: Blue
