DC/DC 10-22V to 24V Voltage Converter - 24V15A 360W MAX Power Transformer Waterproof Boost Module for Automotive, LED

DC/DC 10-22V to 24V Voltage Converter with Fuse 24V15A 360W MAX Power Transformer Waterproof Boost Module for Automotive, LED Lights, Construction Sites Tools.

DC/DC 10-22V to 24V Voltage Converter - 24V15A 360W MAX Power Transformer Waterproof Boost Module for Automotive, LED

Environmental validation conditions. A. Unless otherwise specified, the tests in this specification should be conducted under the standard test atmospheric conditions. B.Temperature: 15 ~35 . C.Relative humidity: 45%~75%. D. The accuracy of the voltage measurement of the instrument shall not be less than 0.5 levels and the internal resistance shall not be less than 10 K /V. E. The accuracy of the current measurement instrument shall not be less than 0.5 levels. F. The accuracy of the temperature measuring instrument shall not be less than 1 . Product parameters. Input range: 10-22V Rated input voltage: 10V/12V/22V Transmission efficiency: 95 Input wire: 15-16CM (R+ B-) Output voltage: 24V Output: 15A MAX Maximum output: 360W MAX No-load adjustment rate: 2% Load regulation rate: 3% Static dissipation: 40MA Ripple: 300mVP-P Safety test. Do not use the unit near a heat source such as a fire or stove. Do not connect the input line to 220V power supply. Do not heat the product in fire. Do not short the positive and negative terminals of the product with wires or other metal objects. Disassembly and repair of the product by unskilled personnel is prohibited.

Key Features

• ✅ YABOANG 24 V DC Voltage Transformer Input range:10V to 22V; output voltage : 24V(fixed output) output current : 15A output power : 360W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.
• ✅ Heat Dissipation Performance The 24 V DC voltage boost regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance.

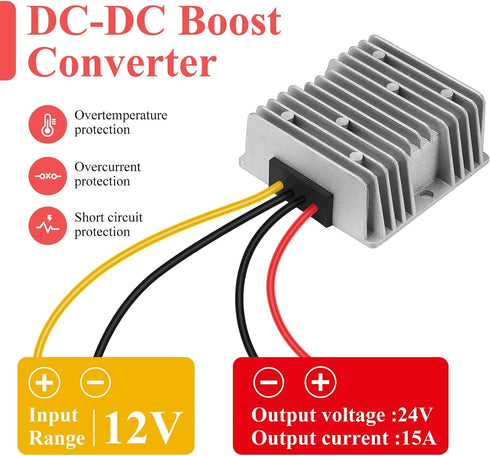

• ✅ Intelligent Protection Assembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the 24 V power transfomer voltage.
• ✅ Widely Application The 24 V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.

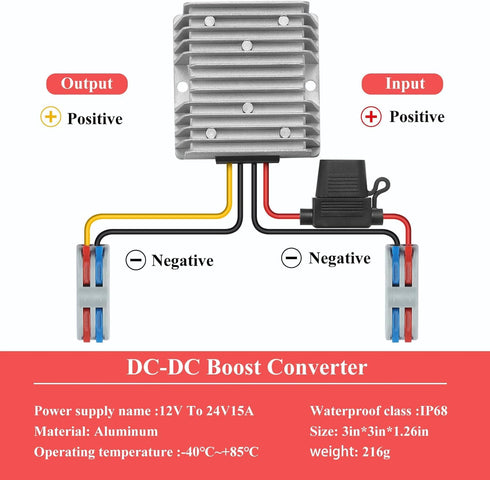

• ✅ Please Note The load connected to the transformer converter output should not exceed the specified maximum load. (Any greater load will damage the transform booster).The 24 V DC power converter adapter does NOT have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product.

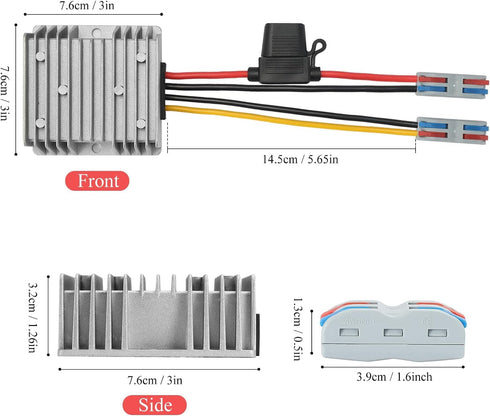

✅ Product Dimensions: 2.91 x 2.91 x 1.22 inches; 9.84 ounces
