DC 12V to 170V High Voltage DC Boost Converter Module for Nixie Tube, 10V-13VDC Input, 130V-190V Output

DC 12V to 170V High Voltage DC Boost Converter HV Power Supply Module for Nixie Tube/Magic Eye Tube IN-12/IN-14/IN-18, 10V-13VDC Input, 130V-190V DC Output & 5V DC Output

DC 12V to 170V High Voltage DC Boost Converter Module for Nixie Tube, 10V-13VDC Input, 130V-190V Output

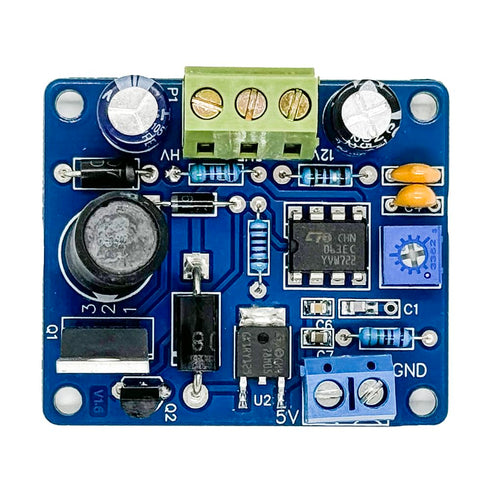

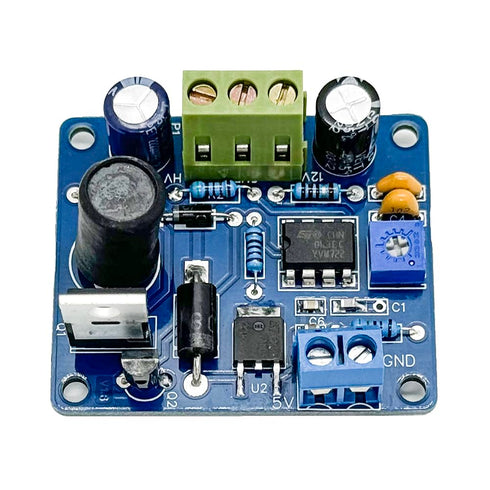

The high-voltage DC boost circuit adopts the MC34063 scheme and is a high-efficiency DC boost circuit board designed specifically for Nixie tubes. DC 12V1A input can drive 15pcs IN-12, IN-14 tubes, or 6pcs IN-18 large tubes. If driving 6pcs QS30 or IN-14, IN-12, DC 10V1A input can work. Equipped with DC 5V100mA output, convenient for supplying power to microcontrollers or digital circuits. Special attention: High voltage danger! Please pay attention to safety during use and installation, and beware of electric shock. Do not work in damp environments and keep out of reach of children during work. Working Parameters: Input voltage: DC 10V~13V Output voltage: DC 130V~190V (adjustable), DC 5V Operating current: 180V Do not exceed 30mA, 5V Do not exceed 100mA Dimensions: 1.89"x1.61"x0.78"(Length x Width x Height) Load test: Input voltage 12VDC, input current 0.63A, output voltage 180VDC, output current 33mA, efficiency approximately 75% -79%. Package Included: 1x DC High voltage Power Supply Module

Key Features

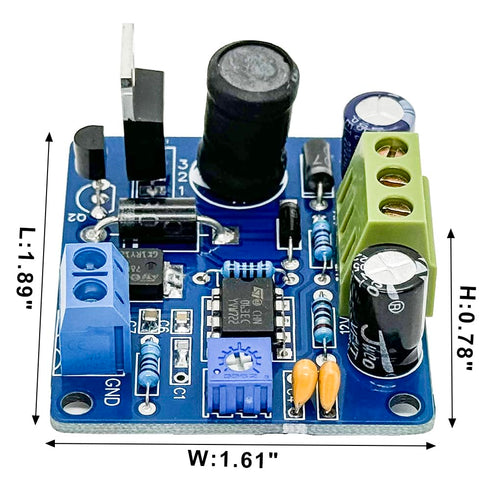

• ✅ The high-voltage DC-DC boost power supply module adopts the MC34063 scheme and is a high-efficiency DC boost circuit board designed specifically for Nixie tubes IN-12/ IN-14/ IN-18/ QS30. Module Size: 1.89"x1.61"x0.78"(Length x Width x Height).

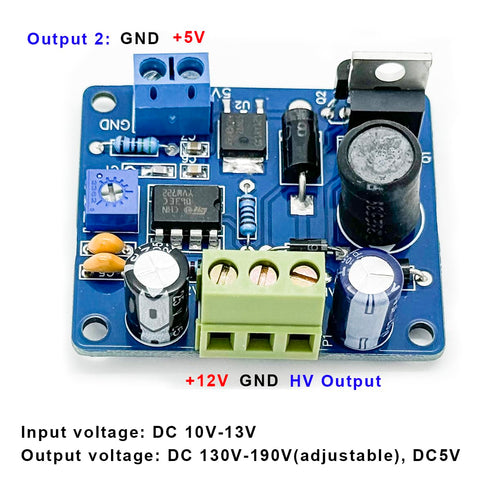

• ✅ Input voltage: DC 10V~13V; Output voltage: DC 130V~190V (adjustable), and DC 5V. Operate current: 180V Do not exceed 30mA, 5V Do not exceed 100mA. DC 12V1A input can drive 15pcs IN-12, IN-14 tubes, or 6pcs IN-18 large tubes. If driving 6pcs QS30 or IN-14, IN-12, DC 10V1A input can work.
• ✅ In addition to DC high-voltage output, It also equipped with DC 5V100mA output, convenient for supplying power to microcontrollers or digital circuits.
• ✅ Load test: Input voltage 12VDC, input current 0.63A, output voltage 180VDC, output current 33mA, efficiency approximately 75% -79%.
• ✅ Special attention: High voltage danger! Please pay attention to safety during use and installation, and beware of electric shock. Do not work in damp environments and keep out of reach of children during work.

✅ Product Dimensions: 1.89 x 1.61 x 0.78 inches; 0.96 ounces
