Current to Voltage Module, 0-20mA to 0-5V Conversion (Current-to-Voltage)

Current to Voltage Module Current 0-20mA Converted to Voltage 0-5V(Current-to-Voltage)

Current to Voltage Module, 0-20mA to 0-5V Conversion (Current-to-Voltage)

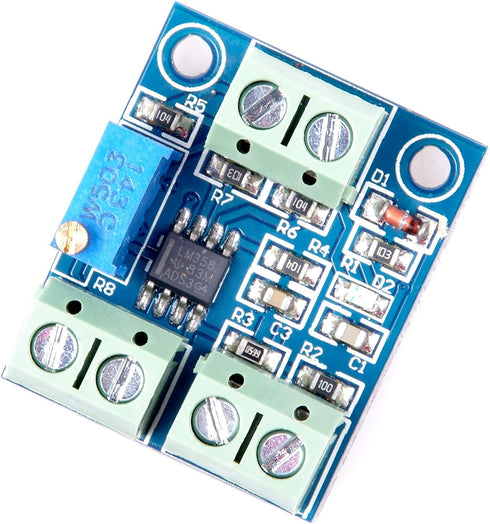

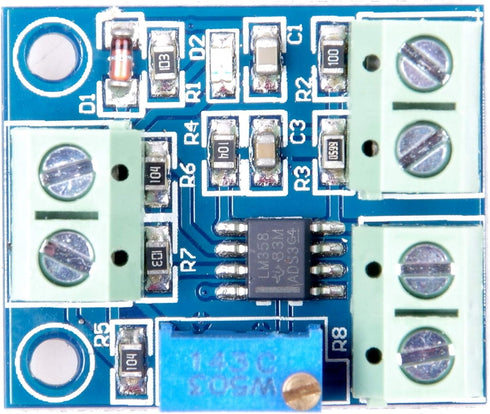

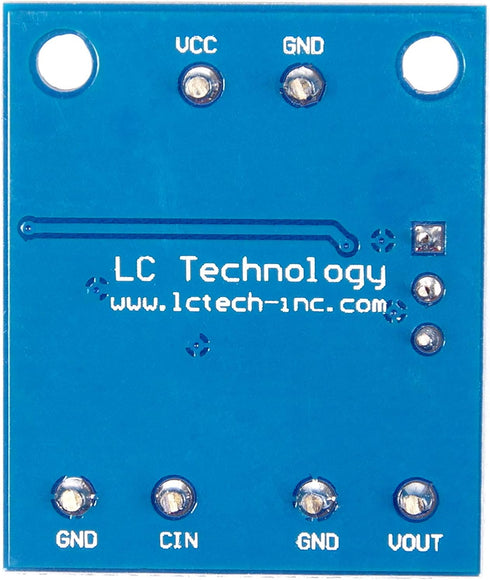

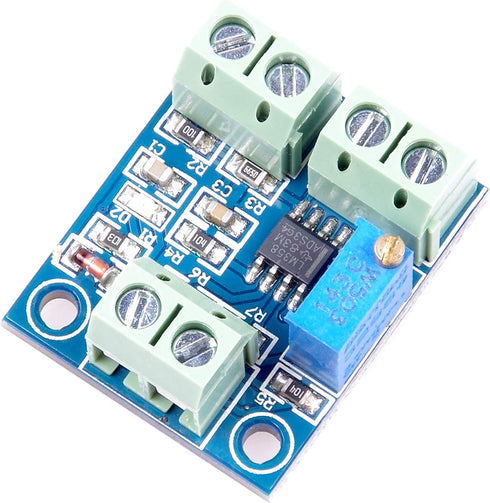

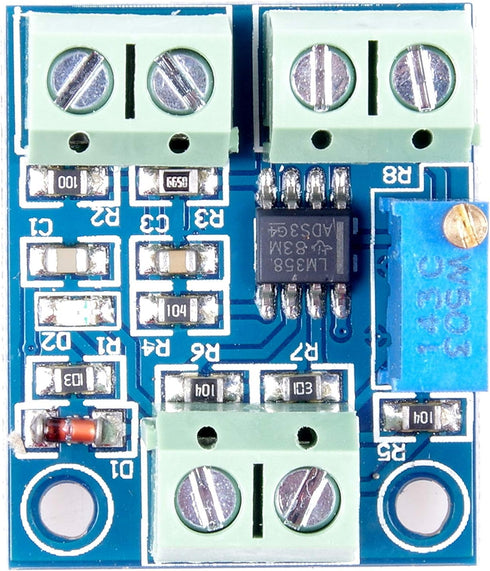

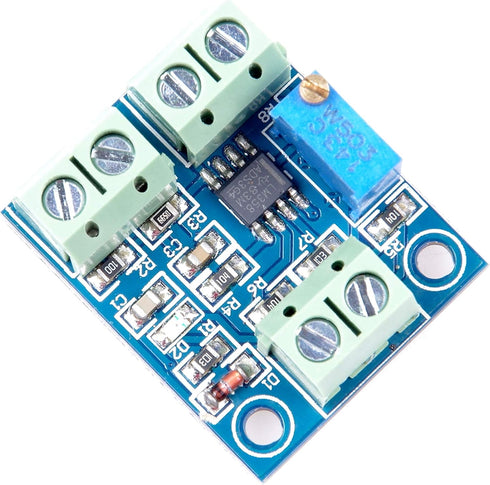

A current-to-voltage module capable LC-A2V 5 stream signal (0-20mA) is converted to a voltage signal (0-5V) output. Small module size 29 * 24 * 16mm (L * W * H), easy to use in different places. Embedded microcontroller technology, the current (0 ~ 20mA) on industry standard converted to a voltage on the industry standard (0 ~ 5V). Drive capability MAX 15mA, linear output. The output signal can be directly connected to the AD converter. It can be connected to the microcontroller with AD function. Module voltage: DC10V ~ 30V. Conversion range: 0 ~ 20mA current into 0 ~ 5V voltage. Module size: 29 * 24 * 16mm (L * W * H). Weight:11g. Module voltage: DC10V ~ 30V. Conversion range: 0 ~ 20mA current into 0 ~ 5V voltage. Connection: VCC: Power supply 10V-30V. GND: Power supply ground. CIN: Input Current 0 ~ 20mA. GND: negative power supply input terminal. VOUT: Input voltage 0 ~ 5V. GND: output power ground. Instructions: The operating voltage is connected to VCC and GND, can not be reversed, so as not to damage the device. In CIN end access controlled current at the output there is a corresponding voltage output. If the correspondence between the current and voltage deviations can be calibrated by adjusting potentiometer.

Key Features

• ✅ A current-to-voltage module capable LC-A2V 5 stream signal (0-20mA) is converted to a voltage signal (0-5V) output.
• ✅ Small module size 29 * 24 * 16mm (L * W * H), easy to use in different places.
• ✅ Embedded microcontroller technology, the current (0 ~ 20mA) on industry standard converted to a voltage on the industry standard (0 ~ 5V).
• ✅ Drive capability MAX 15mA, linear output. The output signal can be directly connected to the AD converter. It can be connected to the microcontroller with AD function.
• ✅ Module voltage: DC10V ~ 30V. Conversion range: 0 ~ 20mA current into 0 ~ 5V voltage.
