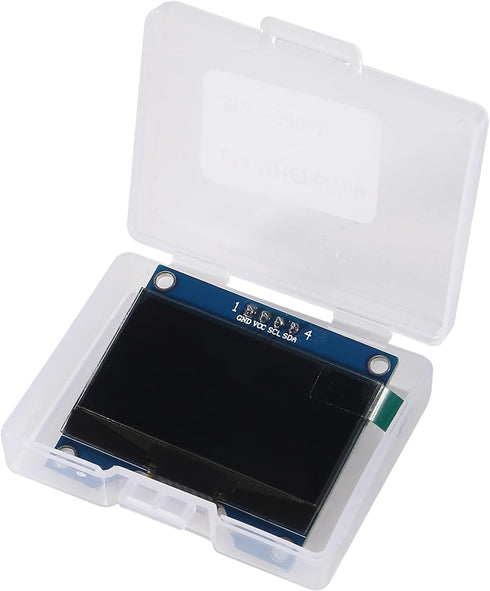

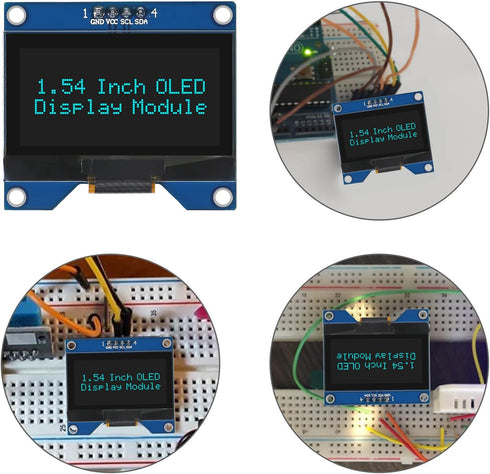

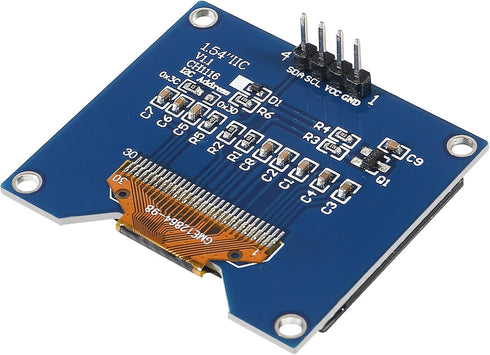

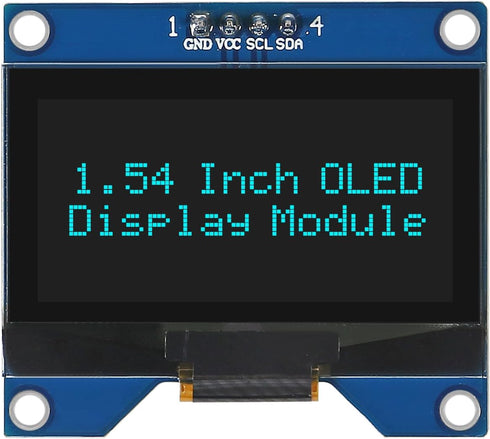

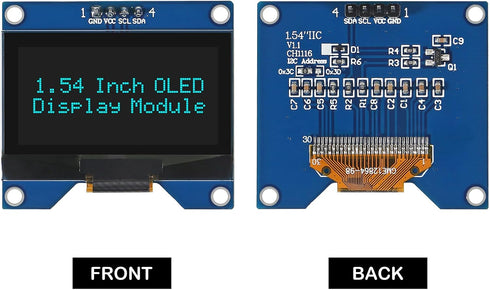

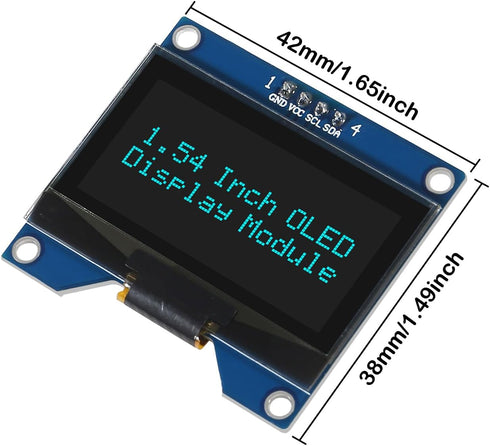

Coliao 1.54 Inch 12864 128x64 SSD1309 I2C 4 OLED Module Driver IIC Serial Interface Self-Luminous Display Board

1.54 Inch OLED Module 12864 128x64 SSD1309 Driver IIC I2C Serial Interface Self-Luminous Display Board for Raspberry Pi 4 Pin Blue

Coliao 1.54 Inch 12864 128x64 SSD1309 I2C 4 OLED Module Driver IIC Serial Interface Self-Luminous Display Board

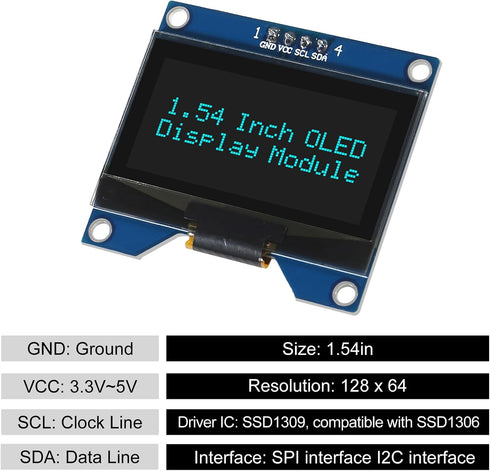

Specification: Item Type: 1.54 Inch OLED I2C IIC Display Module Resolution: 128 x 64(Pixel) Driver IIC: SSD1309, compatible with SSD1306 Interface: SPI interface I2C interface Drive Voltage: 3.3V-5V Display Color: Blue/White Features: OLED self-luminous, no backlight High resolution: 128x64 (same resolution as 12864, high PPI) Large viewing angle: greater than 160 (a screen with the largest viewing angle in the display) Ultra-low power consumption: normal display 0.06w (far lower than TFT display) Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips The IIC interface only needs 2 IOs to light up easily Applications: MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices! Package Included: 1pcs 1.54 Inch OLED I2C IIC Display Module(with protective box)

Brand: Coliao

raspberry pin, 128x64 ssd1309, 12864, oled, driver iic, 128x64, module 12864, ssd1309 driver, computer components, iic i2c, self luminous, board raspberry Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ 1.54inch OLED Display: Resolution: 128 x 64 Pixel, View angle: > 160, Support voltage: DC 3.3V-5V Power consumption: 0.04W during normal operation, full screen lit 0.08W.
• ✅ Embedded Driver IC: SSD1309, Communication: I2C/IIC Interface, only need 2 I/O ports.
• ✅ Self-luminous Design: No backlight is required, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable.
• ✅ There are no fonts embedded in the OLED controller, users can create fonts through the font generation software.
• ✅ Application:1.54 inch OLED module supports many chips: compatible with R3 board and Mega, for Raspberry pi, 51 MCU, STIM 32, etc.
