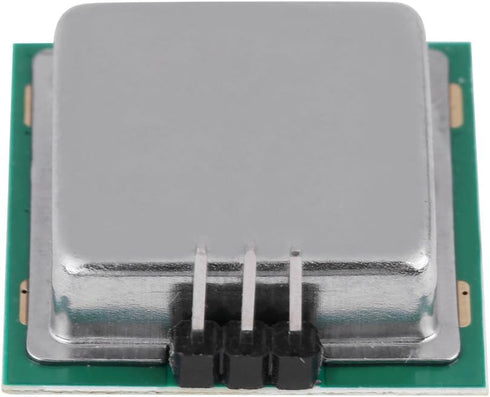

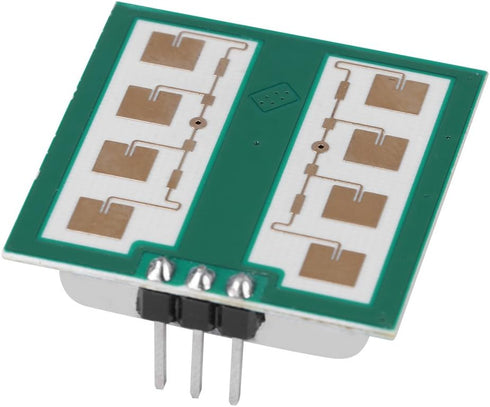

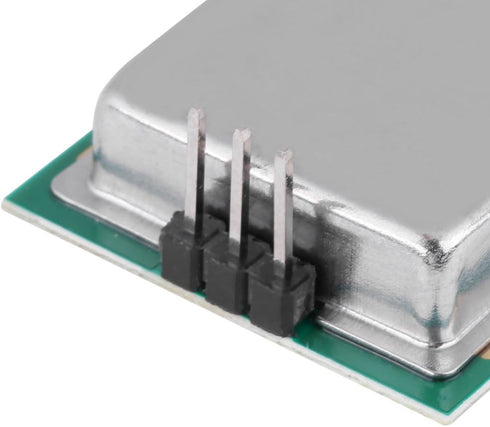

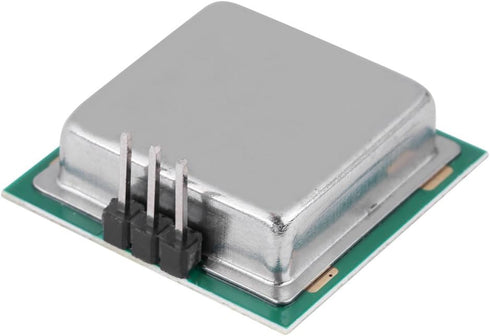

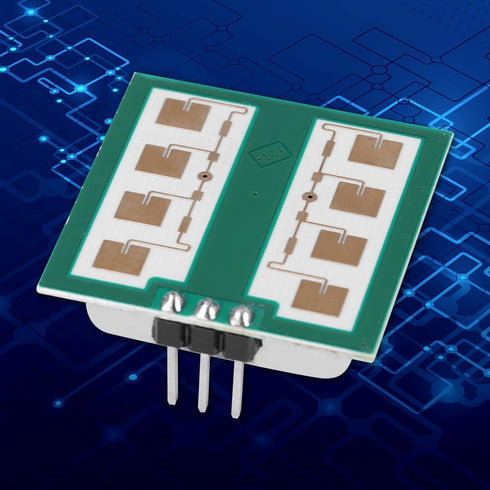

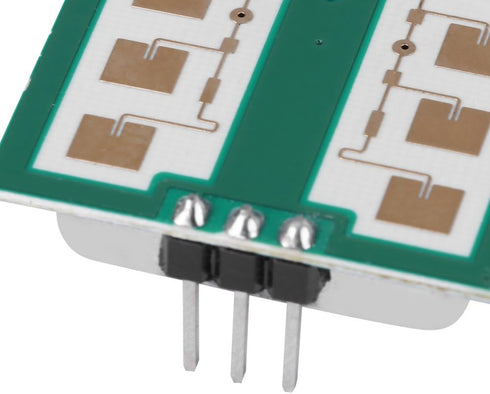

CDM324 Doppler Radar Microwave Module, 24GHz 15m Smart Microwave Body Induction Module

CDM324 Doppler Radar Microwave Module, 24GHz 15m Doppler Radar Smart Microwave Body Induction Module Single Channel Switch Intelligent Sensor Module

CDM324 Doppler Radar Microwave Module, 24GHz 15m Smart Microwave Body Induction Module

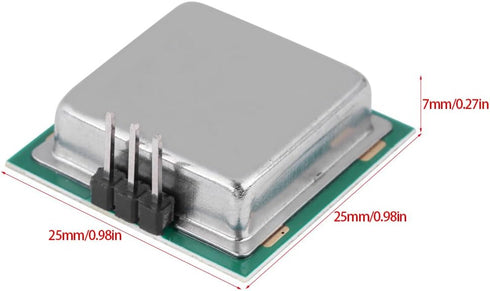

Specification: Transmitting Frequency: min:24GHz typ:24.125GHz max:24.25GHz Output Power:16dbm (typ) Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32 Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB Operating Temperature:-20~60 Operating Current: typ:30MA, max:40MA Operating Voltage: typ:5.5V Pulse Width: typ:10US IF Output:-300~300MV Size: 25 x 25 x 7mm/0.98 x 0.98 x 0.27inch Weight: 5g Package Included: 1 x Microwave Body Induction Module

Key Features

• ✅ Contactless Non-contact detection, moving object detecting. Using Doppler radar technology, Compared with the traditional infrared feeling PIR, with the penetrating detection capability.
• ✅ Wide application This doppler radar frequency sensors module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc.This is a microwave sensor module for detecting moving objects and human body. Widely used in human body sensing lighting system, anti-theft alarm system.
• ✅ Parameter Advanced low consumption PHEMT oscillator, Provide various frequency range standards: -UK,-F,Operating Temperature:-20~60 .
• ✅ Independence Independent transmitting and receiving route, can get the big gain. The module has many advantages such as high sensitivity, long sensing distance, wide sensing angle, high reliability, wide range of operating voltage.
• ✅ High performance Single channel operation. High sensibility, high flexibility, low cost, operating distance is 15m. Not influenced by temperature, humidity, noise, air flow, dust, ray etc, adaptive to terrible environment
