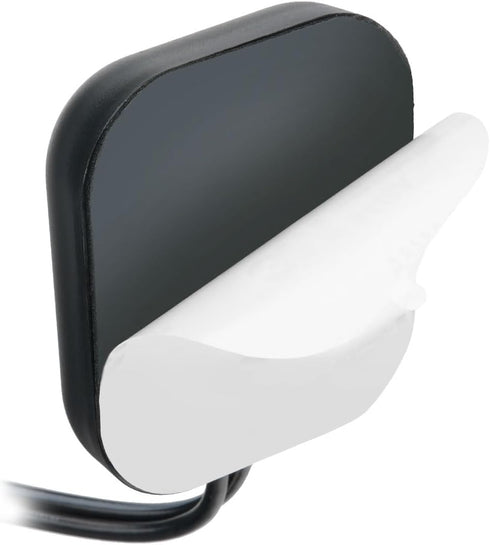

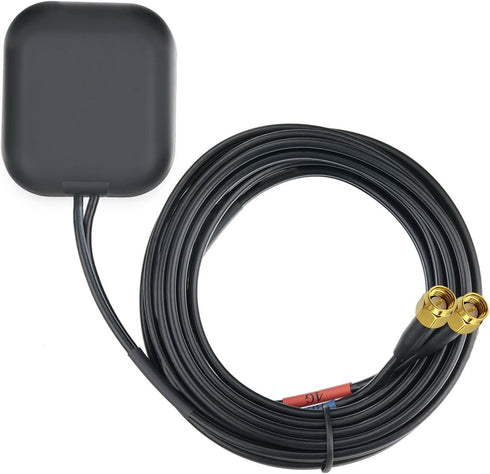

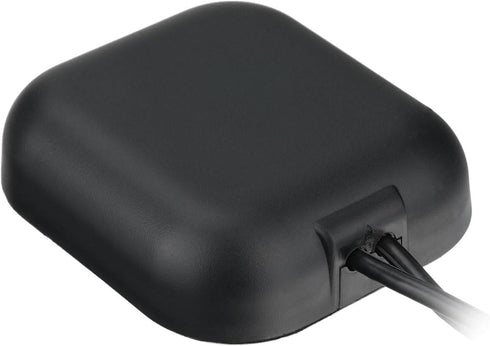

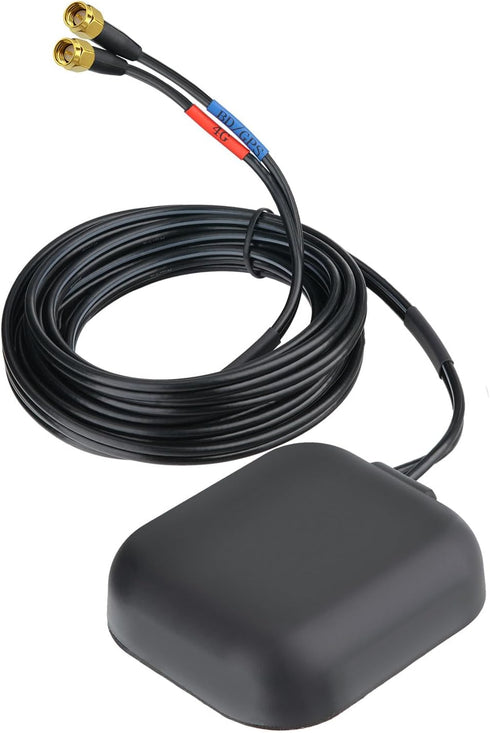

BINGFU 4G IP65 Dual-Band GPS/BeiDou + High-Gain Antenna with SMA Male Connector Waterproof for IoT/Telematics

Bingfu Dual-Band GPS/BeiDou + 4G High-Gain Antenna with SMA Male Connector IP65 Waterproof for IoT/Telematics, Automotive, Outdoor Navigation

BINGFU 4G IP65 Dual-Band GPS/BeiDou + High-Gain Antenna with SMA Male Connector Waterproof for IoT/Telematics

Specifications: GPS/BeiDou Module: Frequency: 1575.422.5MHz (GPS L1), 15612.5MHz (BeiDou B1) Bandwidth: >10MHz Gain: 3.0Bi (70x70mm patch) VSWR: 2.0 Polarization: Right-Hand Circular (RHCP) 4G LTE Module: Frequency Range: 800-960MHz & 1710-2700MHz Impedance: 505 VSWR: 3.0 Power Handling: 50W LNA Specifications: Gain: 282dB Noise Figure: 2.0dB Operating Voltage: 3.0-3.6V DC Current Consumption: 83mA RoHS/REACH compliant Environmental Resilience: Operating Temperature: -40C to +85C Storage Temperature: -40C to +90C Humidity: 0% to 95% (non-condensing) Applications: Fleet management and vehicle tracking systems Industrial IoT sensors and remote monitoring Agricultural machinery and construction equipment Marine and aviation navigation

Brand: BINGFU

beidou high, accessories gps, waterproof, sma, iot telematics, dual, antenna, ip65, automotive outdoor, electronics gps, system, gps Electronics GPS, Finders & Accessories GPS System Accessories Antennas

Key Features

• ✅ Dual-Band GPS/BeiDou + 4G Connectivity Solution: Supports GPS (1575.42 MHz) and BeiDou (1561 MHz) with RHCP polarization for accurate positioning; Integrated 4G module covers 800-960 MHz/1710-2700 MHz bands to enable global IoT and telematics applications
• ✅ 28dB High-Gain LNA for Stable Connectivity: Equipped with a low-noise amplifier (2.0dB NF) and 2.0 VSWR to minimize signal loss, ideal for weak-signal environments like dense urban or industrial sites

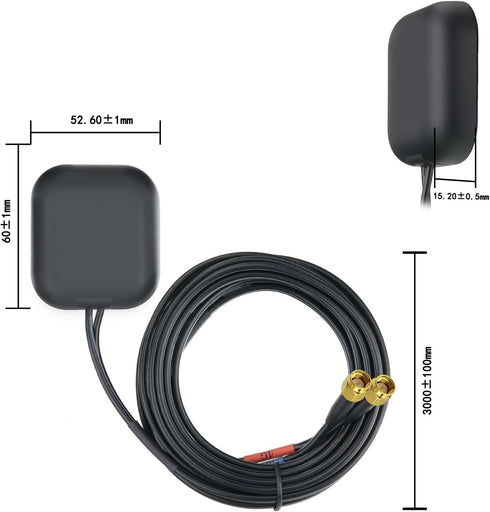

• ✅ Industrial-Grade Durability for Harsh Environments: Compact 60 x 52.6 x 16.5 mm design with IP65-rated housing; Operates in -40C to +85C temperatures and 95% humidity for automotive and outdoor use

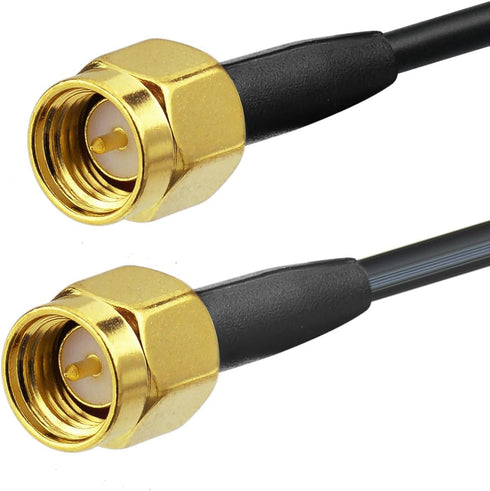

• ✅ Dual SMA Male Connectors & Flexible Installation With 9.84ft/3m RG174 cable for seamless integration with IoT devices, telematics systems, and vehicles
• ✅ Global 4G Band Coverage: Operates on 800-960MHz (LTE Band 13/14) and 1710-2700MHz (4G LTE/5G) for worldwide compatibility in public safety, transportation, and industrial IoT

Product Details

• ✅ Model Number: BFUSAN0542
• ✅ Color: Black
