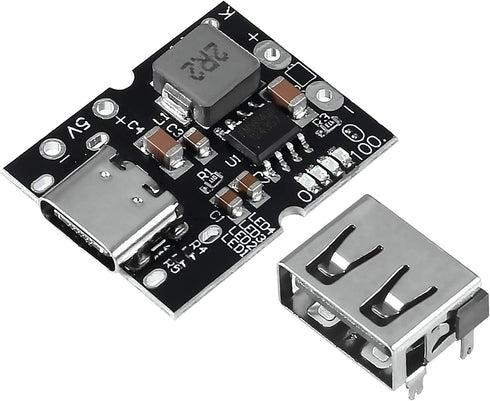

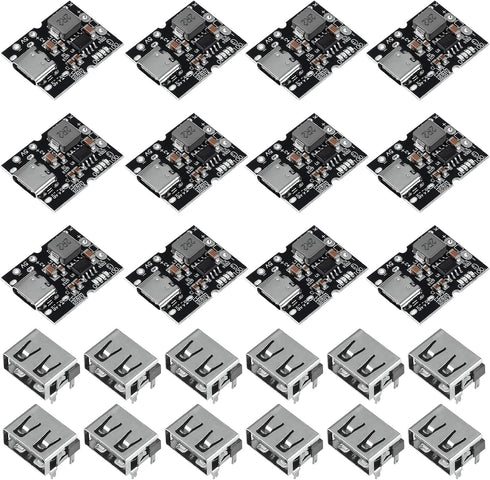

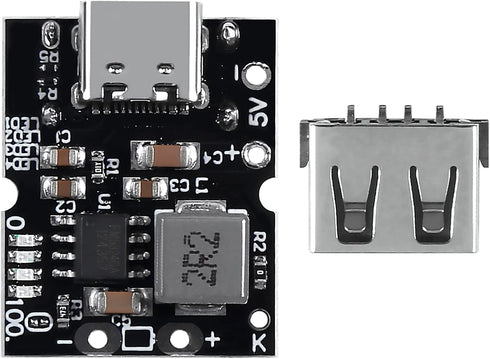

ATNSINC 12PCS 5V 2A Type-C USB Boost Converter Step-Up Power Module Mobile Power Bank Accessories with Protection LED

12PCS Type-C USB 5V 2A Boost Converter Step-Up Power Module Mobile Power Bank Accessories with Protection LED Indicator (Type-C No Welding)

ATNSINC 12PCS 5V 2A Type-C USB Boost Converter Step-Up Power Module Mobile Power Bank Accessories with Protection LED

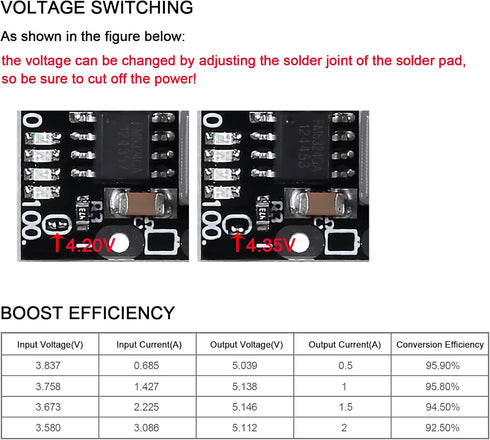

1.Charging and discharging inducation. 2.Built-in charging and discharging power MOS. 3.Preset 4.2V charging voltage, precision 1% 4. Max 8uA standby current 5. Integration charging management and discharging management 6.Intelligent temperature control and overtemperature protection 7.Interation output overvoltage protection, short circuit protection, overload protection 8.Integration overcharging and overdischarging protection 9.Support trickle mode and zero voltage charging 12pcs 5V 1A Micro USB Step Up Power Module. Specification: Input voltage range: 5 ~ 5.5V Charging cut-off voltage: (4.2v/4.35v) 0.5% Charging current: 2.4a 5% Boost output voltage: 5V ~ 5.15v (line loss compensation) Boost output voltage ripple: 100mV Boost output current: 2A Boost conversion efficiency: 92.5% (3.6V input, 5v2a output) 3.1A boost output 3A battery terminal charging super small and super energy carefully designed small and full Type-C +USB dual port design is practical and easy to use selected good materials are small and strong to ensure limited heat dissipation volume 3.1A fast and stable output. Features: 1. 3.1A synchronous boost conversion output 2. 3A battery terminal synchronization switch charging 3. Support filling while placing 4. Boost efficiency up to 93% 5. 4 LED power display 6. Automatically detect phone insertion and removal 7. Double click the key to close the output, and click to open the output 8. TYPE-C supports single port input and output 9. Mobile phone charging current intelligent recognition DCP 10. Intelligent load identification automatic standby 11. Output overcurrent, overvoltage and short circuit protection 12. Input overvoltage, overcharge, overdischarge and overcurrent discharge protection

Brand: ATNSINC

bank accessories, module mobile, type usb, step, converters, converter, power bank, protection led, led indicator, welding, atnsinc, indicator Electronics Power Accessories Power Converters

Key Features

• ✓ Input voltage range: 5 ~ 5.5V; Charging cut-off voltage: (4.2v/4.35v) 0.5%; Charging current: 2.4A 5%; Boost output voltage: 5V ~ 5.15v (line loss compensation); Boost output voltage ripple: 100mV; Boost output current: 2A.
• ✓ When the load current is less than 50mA continuously, the output will be turned off.

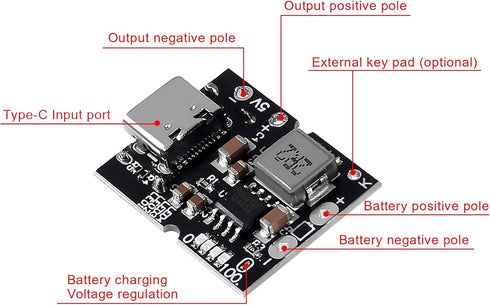

• ✓ It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.

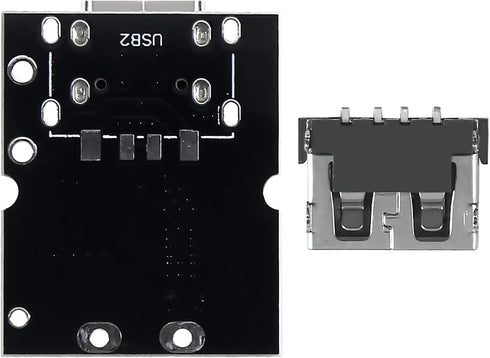

• ✓ It supports discharging while charging. The usb-a base weldingposition is provided on the back of the product, which can be installed manually.
• ✓ When the battery voltage drops below 4.1V, the charging cycle starts again.

Product Details

• ✓ Model Number: 02018083-f0c6-4f0f-b4f1-6a33845333b7
• ✓ Color: Type-C No welding
• ✓ Power Source: Battery Powered
