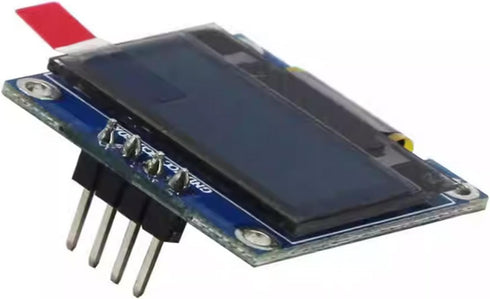

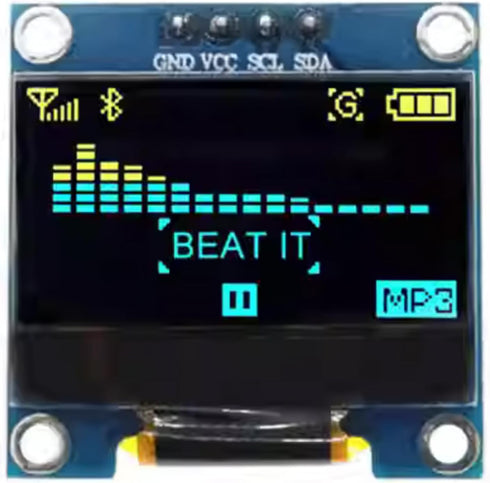

artcavs 0.96 Inch I2C SSD1306 128x64 OLED Display Module Display Screen Module Driver

0.96 Inch OLED Display I2C Module Display Screen Module SSD1306 Driver 128x64

artcavs 0.96 Inch I2C SSD1306 128x64 OLED Display Module Display Screen Module Driver

Product Adjustable ultra-high brightness Adjustable ultra-high contrast Embedded driver, controller Drive load: 1/64 load Pixel: 128x64 Size: 26.70x19.26x1.85mm Effective area: 21.74x11.2mm Pixel size: 0.15x 0.15mm This OLED part number is UG-2864HSWEG01 No backlight required, the display unit can self illuminate High resolution: 128x64 Perspective:>160 Ultra low power consumption: Full screen illumination 0.08W Voltage: DC 3-5V Temperature: -30-70 Size: 27x27x4.1mm Driver IC: SD1306 I2C/IC interface, only 2 IO required

Brand: artcavs

driver 128x64, display screen, inch, i2c, display, ssd1306, module display, module, i2c module, screen, inch oled, ssd1306 driver Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ OLED display: 0.96-inch SSD1306 128X64 OLED with I2C IIC SPI serial
• ✅ SSD1306 driver, 128x64 resolution

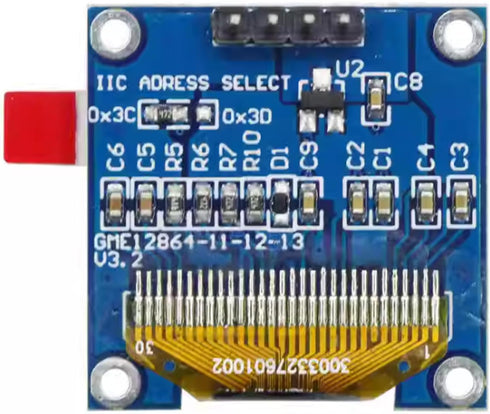

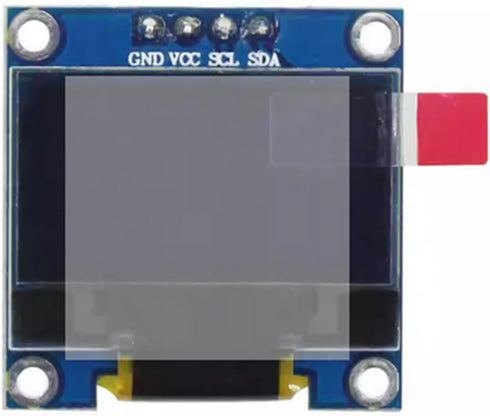

• ✅ Fixed address 0X3C I2C/IC interface, simple 4-wire I2C interface GND, VCC, SCL, SDA
• ✅ Logic level: 3.3V 5V
• ✅ Drive load: 1/64 load
