Arducam 800 VGA Global Shutter USB Camera Module, FPS@QQVGA High Speed Camera, Monochrome Wide Angle UVC Webcam

Arducam VGA Global Shutter USB Camera Module, 800 FPS@QQVGA High Speed Camera, Monochrome Wide Angle UVC Webcam for Windows, Linux OS

Arducam 800 VGA Global Shutter USB Camera Module, FPS@QQVGA High Speed Camera, Monochrome Wide Angle UVC Webcam

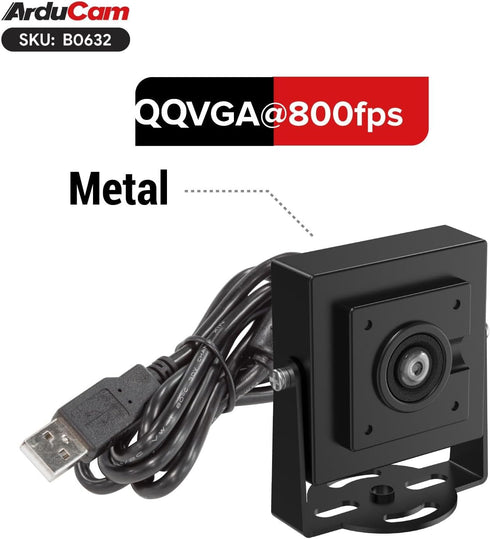

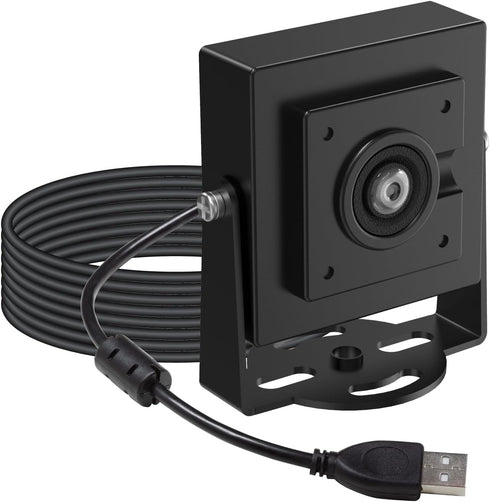

The Arducam ezBOX GS B0632 is a compact monochrome global shutter USB camera optimized for precision high-speed imaging. Supporting frame rates up to 800 FPS at QQVGA resolution, it enables detailed capture of fast motion while maintaining consistent exposure across the frame. With a standard field-of-view lens, integrated onboard ISP, UVC plug-and-play support, and external trigger capability, B0632 is ideal for measurement, inspection, and controlled machine vision applications. Up to 800 FPS enables motion analysis beyond standard USB cameras. Pixel-level simultaneous exposure ensures distortion-free imaging of fast-moving objects. No drivers requiredworks instantly across major operating systems. Capture more of the scene with fewer cameras. Frame Rate(MJPG): 640x480@200fps, 320x240@400fps; 160x120@800fps Frame Rate(YUV): 640x480@60fps, 320x320@160fps; 160x120@400fps Product Series: ezBOX-VGA GS Max Still Resolution: VGA Color Filter Type: Monochrome Shutter Type: Global Shutter Optical Size: 1/7.5 Output Format: MJPG/YUV FOV: 166(D)x130(H)x100(H) Minimum Exposure Time: 100s* External Trigger Mode: Support Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store

Brand: Arducam

wide, speed, 800 fps, computers accessories, accessories computer, qqvga, high, webcam, vga global, angle, vga, arducam Electronics Computers & Accessories Computer Accessories & Peripherals Audio & Video Accessories Webcams & VoIP Equipment

Key Features

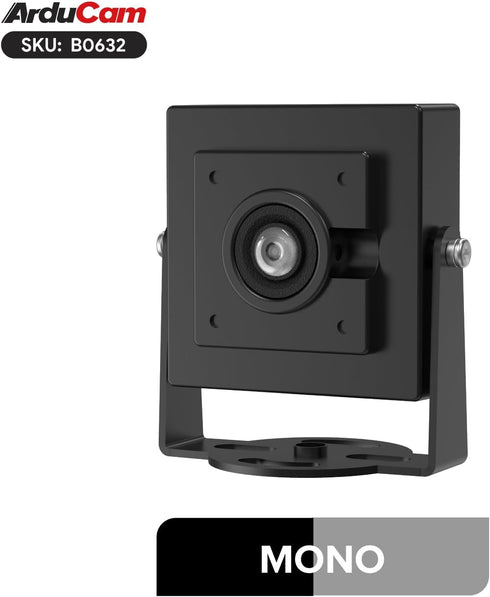

• ✓ Global Shutter Mono: Uses a VGA monochrome global shutter sensor that that exposes all pixels simultaneously, making this UVC camera module ideal for precision measurement, motion analysis, and other industrial PC camera applications
• ✓ Ultra High FPS: Supports frame rates of up to 800 FPS at QQVGA resolution, enabling capture of rapid events not observable with conventional USB Webcam solutions, such as high-speed inspection and motion tracking Note: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 800fps(the actual frame rate can be seen during preview)

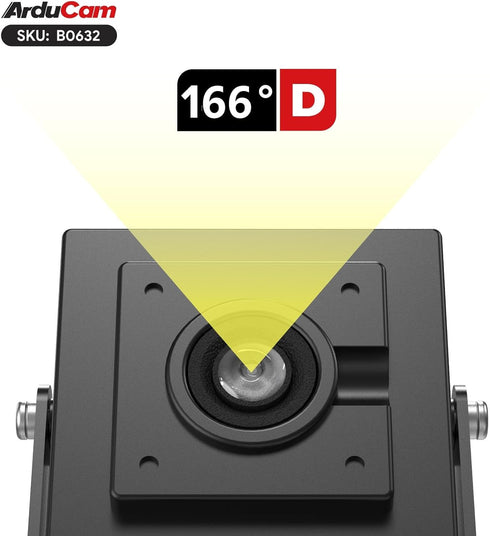

• ✓ Wide Angle Optics: This tiny camera uses a standard 166(D) lens to provide a larger field of view, well-suited for metrology, inspection, and controlled imaging setups including 3D printer monitor, conference camera, and lab environments
• ✓ Onboard ISP: Incorporates an onboard ISP to process image data in real time, delivering stable output while reducing system integration complexity for raspberry pi camera projects and embedded vision systems

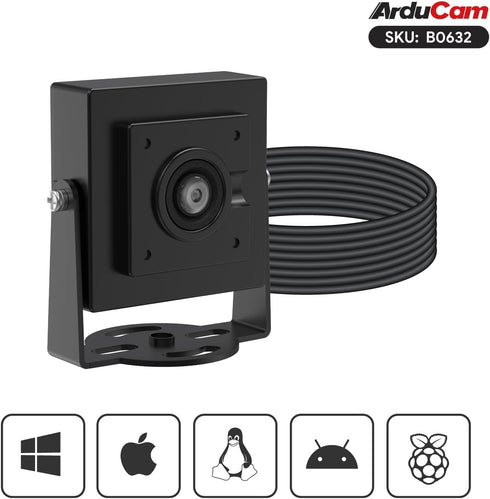

• ✓ Plug & Play UVC: Designed around the USB2 UVC standard, allowing immediate use as a USB Security Camera or home security camera across Windows, Linux, and macOS platforms without additional drivers

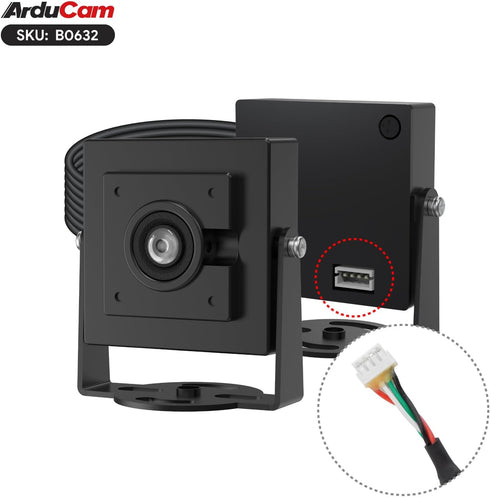

• ✓ Industrial Control: Built with a compact metal enclosure and supports external triggering and ROI configuration, enabling precise timing control and flexible deployment in industrial automation and professional USB Webcam / PC camera scenarios

Product Details

• ✓ Item Weight: 0.07 Kilograms
• ✓ Model Number: B0632
• ✓ Color: black
