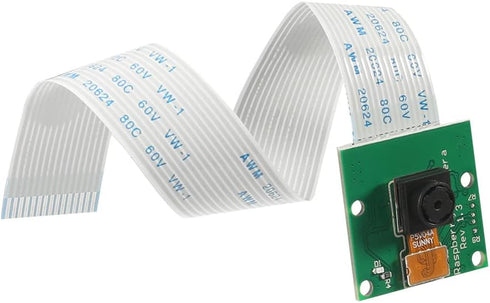

Aokin 5MP 1080P OV5647 A/B/B+/2/3/3B+/4 15cm for Raspberry Pi Camera Module, with Sensor Video Camera Module

Aokin for Raspberry Pi Camera Module, 5MP 1080P with OV5647 Sensor Video Camera Module for Raspberry Pi A/B/B+/2/3/3B+/4 with 15cm Flex Cable

Aokin 5MP 1080P OV5647 A/B/B+/2/3/3B+/4 15cm for Raspberry Pi Camera Module, with Sensor Video Camera Module

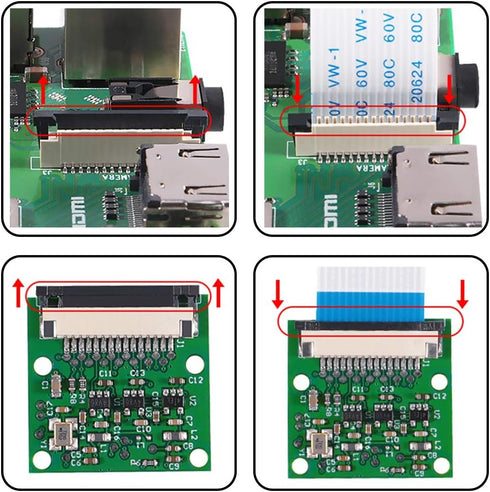

Aokin mini camera module for the Raspberry Pi series board, which is fully compatible with the official. Specifications: Module Weight: 3g Max frame rate: 30fps Focus Mode: fixed-focus Angle of View: 65 degree Working voltage: 1.7V~3.0V Field of View: 2.0 x 1.33m at 2 m Module Size: 25mm 24mm 9mm Working temperature: -20 C ~ 70 C Sensor type: OmniVision OV5647 5MP Maximum Photo Resolution: 2592 x 1944 pixel Supported Video Resolution: 1080p@30fps, 720p@60fps, 480p@90fps. Interface: 15-pin MIPI camera serial interface - plugs directly into for the Raspberry Pi board. Package including: 1 x 5MP Camera Module for Raspberry Pi 1 x 15cm white ribbon flex cable for Raspberry Pi Model A/B/B+, Pi 2B, and Raspberry Pi 3B 3B+, Pi 4B Application: Cellular phones, PDAs, Toys Other battery-powered products Can be used on for all Raspberry Pi platforms Reference: You can find more detailed instructions for the Raspberry Pi camera: raspberrypi.org/camera raspberrypi.org/downloads raspberrypi.org/documentation/usage/camera Must make sure for your Raspberry Pi board is turned off, find the camera module port, then gently pull up on the edges of the ports plastic clip. Please refer to the picture. Insert the camera module ribbon cable correctly, then gently push the plastic clip back into place. Please refer to the picture. Find the camera module, then gently pull up on the edges of the ports plastic clip. Please refer to the picture. Insert the camera module ribbon cable correctly, then gently push the plastic clip back into place. Please refer to the picture.

Brand: Aokin

cable electronics, computers accessories, accessories computer, aokin, sensor, 1080p, ov5647, camera module, computer, raspberry 15cm, module 5mp, 5mp 1080p Electronics Computers & Accessories Computer Accessories & Peripherals Audio & Video Accessories Webcams & VoIP Equipment

Key Features

• ✓ Compatible: camera module fit for Raspberry Pi Model A/B/B+, Pi 2B and Pi 3B 3B+, Pi 4B. Used on OctoPi, Raspbian, MotionEye for monitor 3D Printer, surveillance camera, and other Pi camera projects

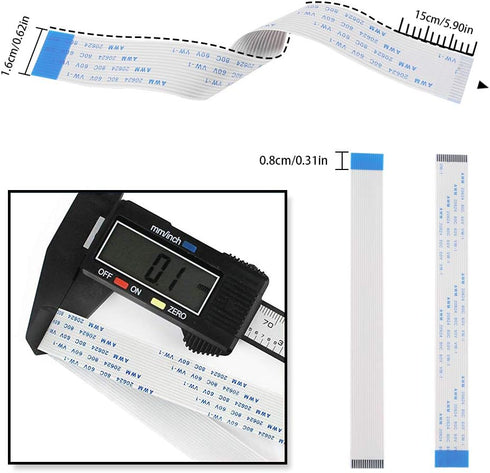

• ✓ Ribbon flex cable: 15 cm/5.90 in white camera cable for Raspberry Pi Model A/B/B+, Pi 2B and Raspberry Pi 3B 3B+, Pi 4B, camera module and display, long enough for use the camera

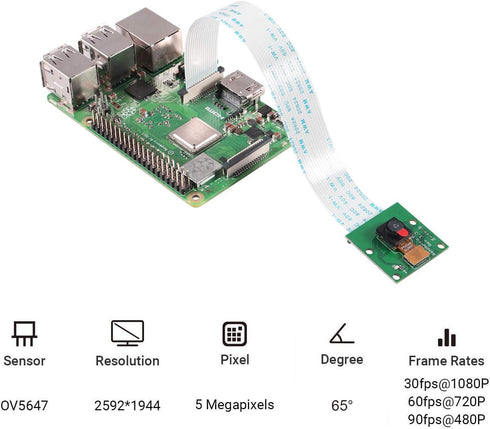

• ✓ Specification: 5 Megapixels sensor with OV5647 webcam sensor in a fixed-focus lens; the high-definition video camera is capable of 2592 x 1944 pixel static images and supports video resolution 1080p 30fps, 720p 60fps and 640 x 480p 60/90 video recording

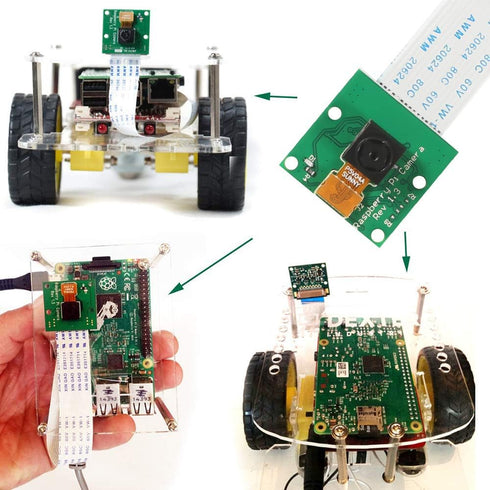

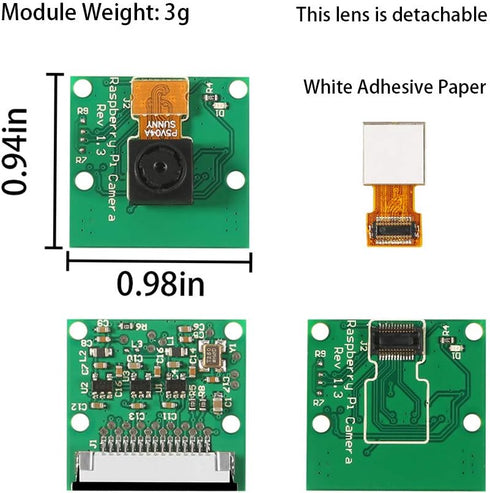

• ✓ Endless creativity: 15-pin MIPI camera serial interface - plugs directly into for the Raspberry Pi board; The camera module size: 25 mm 24 mm 9 mm and weight only 3 g, making it perfect for mobile, you can be applied to image recognition and image tracking, etc
• ✓ If you have any issues for raspberry pi version 1.3 camera module, please contact us by Amazon message, we will do our best for you

Product Details

• ✓ Model Number: B09VZHBZRT
• ✓ Color: 1 Pcs Camera with 15cm Cable
