AITIAO 30W MP3 9-24V 9 8 32G Voice Playback Module Music Player DC Voice Broadcast Device Trigger Interfaces I/O

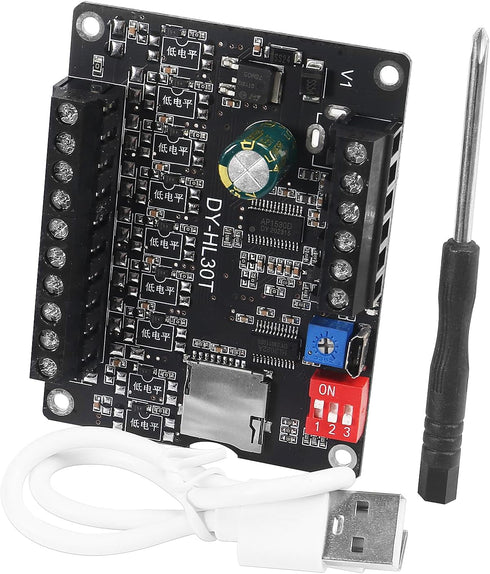

30W Voice Playback Module MP3 Music Player DC 9-24V Voice Broadcast Device 9 Trigger Interfaces 8 I/O Trigger Modes with Two Indicators Support TF Card 32G Max DIY Electronic Kits

AITIAO 30W MP3 9-24V 9 8 32G Voice Playback Module Music Player DC Voice Broadcast Device Trigger Interfaces I/O

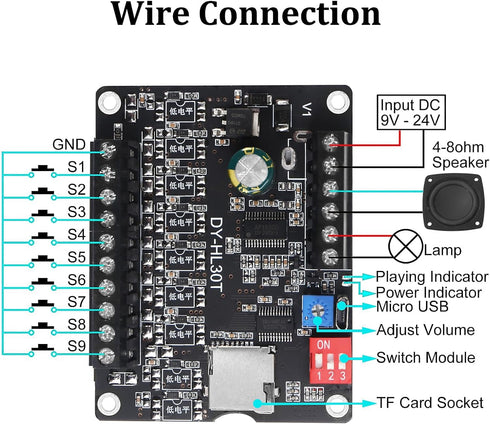

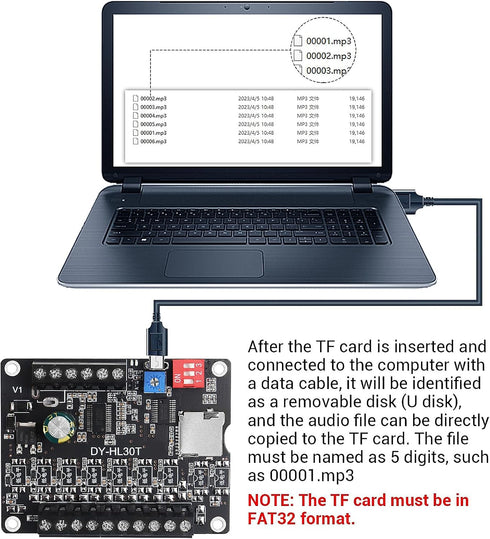

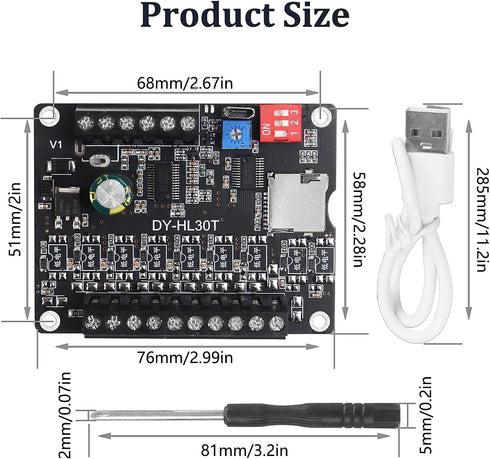

Features: 1>. DC 9-24V wide voltage power supply 2>. 9-Channel one-on-one trigger interface, triggering up to 9 music 3>. Low level trigger version and directly using GND as a trigger signal 4>. Supports MP3 and WAV decoding formats, and audio file sampling rates up to 48KHz 5>. Supports TF card (up to 32G) storage and must be in FAT32 format(not NTFS) 6>. Micro USB Socket: Connect to PC and download music files. 7>. Equipped with a 30W Class D power amplifier, it can directly drive 4-8ohm, 10-30W speakers 8>. External warning lights can be connected and voltage is same to input voltage 9>. DIP switch is set with 8 trigger working modes 10>. Potentiometer and volume button adjusts volume 11>. Module Size:76*58mm 12>. 3Bit Red Toggle Switch:Set 8 different triggering modes, which must be powered on again after changing the mode. 13>. Light/Alarm Output: Output voltage is the same to input work voltage. It can connect alarm/warning lights. 14>. Two Indicator: Green after power ON and red when playing. (For Power supply and Playback) Please Note: 1>. Inter-CutTriggermodeapplication, where background music is stored in the root directory, and insert music must be placed in the "CHABO" folder. No need "CHABO" folder in others play mode. 2>. The music file name must be a 5-digit number, for example: 00001.mp3 ~ 00009.mp3 3>. Each input port can only control one music file such as S3 just can control music file 00003.mp3. Application: 1>. Modified/repair/replace speaker 2>. Amplifier equipmentfor training/activity siteand so on 3>. Car Bluetooth device 4>. DIY Bluetooth Speakers

Brand: AITIAO

electronic, card 32g, player, portable, video digital, 30w, module mp3, voice, music, trigger, electronics portable, modes two Electronics Portable Audio & Video Digital Voice Recorders

Key Features

• ✓ 30W Voice Playback Module: DY-HL30T is a DC 12V 24V 30W Mono Voice Playback Module. Supports MP3 and WAV decoding formats; 9 tracks can be triggered in sections.

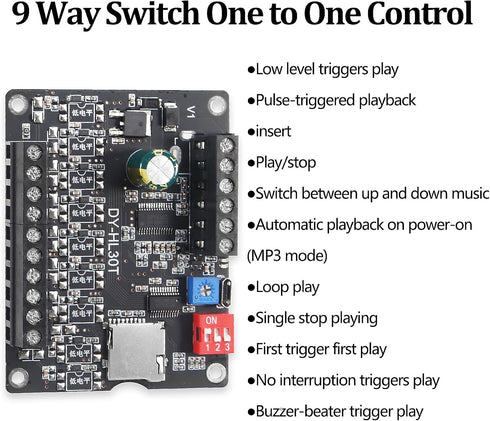

• ✓ 9 Way Trigger Port: Voice playing module is designed with 9 way high pressure and high temperature resistant trigger ports. Without programming, you can directly connect the trigger button to realize a variety of playing modes, such as single cycle, sequential play, etc.
• ✓ 9-24VDC wide voltage power supply, direct drive 4-8 horn, maximum output power 30W; Support TF card (memory card up to 32G), U disk (up to 32G), and connect the computer through USB data cable to replace audio files.
• ✓ Warning Device: AITIAO Voice Broadcast Device can be connected with external buzzer or light alarm. It can be used as the alarm device for families, supermarkets and warehouses. You can freely change the alarm effect or sound you want.

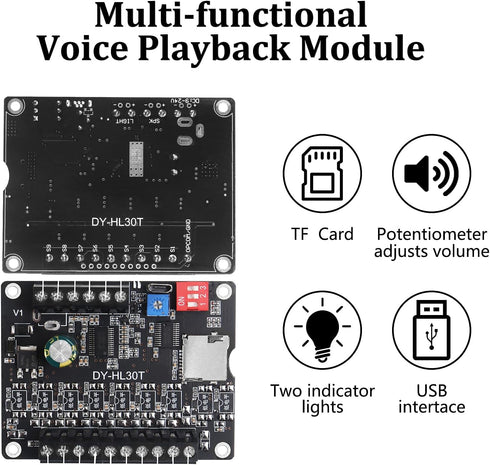

• ✓ Two Indicator Lights: The mp3 voice module has two indicator lights, respectively pointing to the state of power supply and playback. This will be very helpful for you to observe the working status of the voice module, convenient operation.
