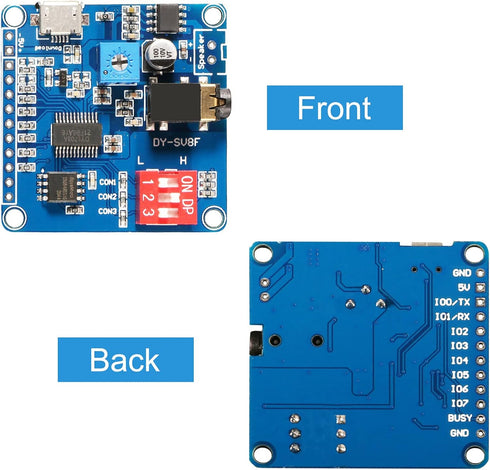

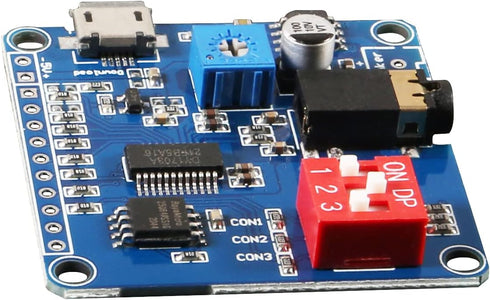

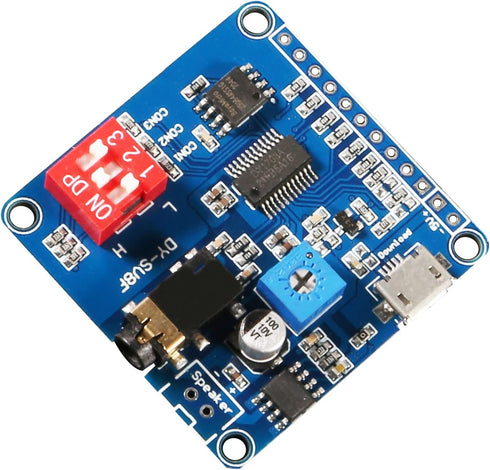

AITIAO 2Pcs MP3 5W 64MBit Voice Playback Module Board Player Music Voice Board, Flash Serial Control SD/TF Card

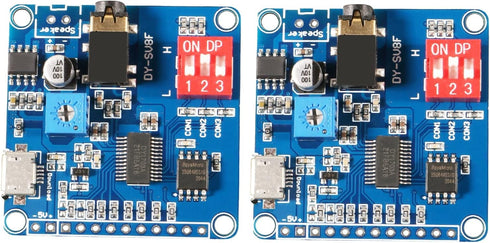

2Pcs Voice Playback Module Board MP3 Player Music Voice Board, 5W 64MBit Flash Serial Control SD/TF Card

AITIAO 2Pcs MP3 5W 64MBit Voice Playback Module Board Player Music Voice Board, Flash Serial Control SD/TF Card

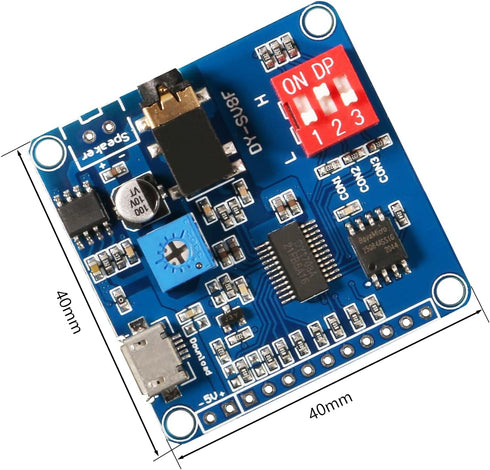

AITIAO 2Pcs Voice Playback Module MP3 Trigger Music Player Voice Broadcast Amplifier Board Class D 5W 64MBit Flash Micro USB UART I/O Serial Adapter Parameters: 1. Product Name:DY-SV8F Voice Playback Module 3. Work Voltage:DC 5V 4. Working Temperature range:-20~85 5. Working Humidity range:0%-95%RH 6. Size:40*40mm 7. Package:2pcs DY-SV8F MP3 Voice Playback Module Features: 1. Support MP3 and WAV decoding format. 2.Support 64Bbit(8Mbyte) Flash memory. 3. Support sampling frequency (KHz) : 8/11.025/12/16/22.05/24/32/44.1/48. 4. 24-bit DAC output, dynamic range support 90dB, SNR support 85dB. 5. Built-in 5W Class D amplifier circuit and can directly drive 4ohm 3~5W speaker. 6. Support UART serial port control voice broadcast function. It can control playback, pause, selections, turn up and down volume and other functions, the largest selection of 65535 songs. The baud rate is 9600 bit/s. 7. Support I/O trigger function, 8bit I/O ports can trigger 8 musics or 8 I/O combinations to trigger 255 songs. 8. Support One_line single bus serial port control, which can control playback, pause, selection, turn up and down volume and other functions. 9. Support 3 configuration I/O for mode selection to make 7 work modes. The number on the corresponding DIP switch:

Brand: AITIAO

player music, module board, music voice, music, board 64mbit, card electronics, 2pcs voice, flash serial, computer components, 64mbit, serial control, mp3 Electronics Computers & Accessories Computer Components Single Board Computers

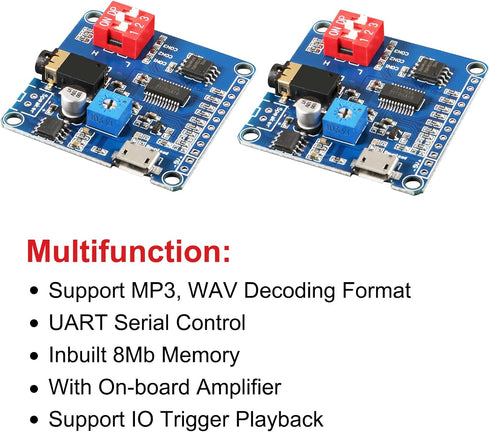

Key Features

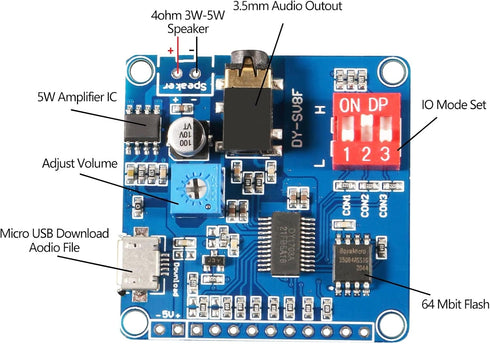

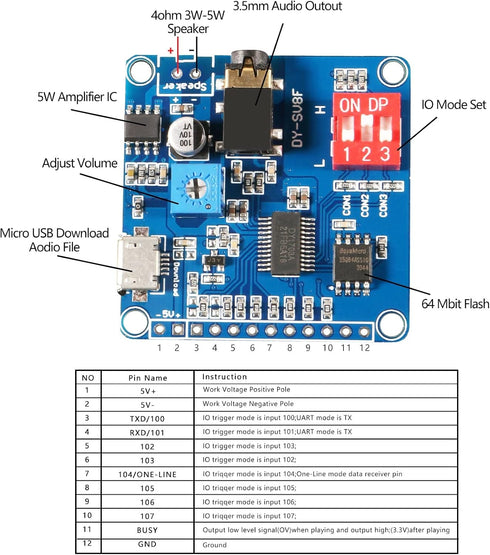

• ✓ DY-SV8F intelligent voice module integrates IO segment trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 and other 7 working modes, dial switch settings are simple.
• ✓ UART serial port control voice broadcast function, with control playback, pause, song selection, volume addition and subtraction functions. Up to 65535 tracks can be selected, and the baud rate is 9600 bit/s
• ✓ Built in 5W Class D amplifier circuit and can directly drive 4ohm 3~5W speakers.
• ✓ Support MP3,WAV decoding format.Support 64Bbit(8Mbyte) Flash memory. It can connect the computer to update audio files via USB cable.Fully support FAT16/FAT32 file system, maximum support for 32G TF card.
• ✓ 24-bit DAC output, dynamic range support 90dB, signal-to-noise ratio support 85dB.

Product Details

• ✓ Package Dimensions: 3.78 x 2.8 x 0.47 inches
• ✓ Item Weight: 0.634 ounces
