Aideepen 5PCS Mp3 MP3 DFPlayer Mini Player Board Module Voice Decode Board Support TF Micro SD Card U Disk WAV WMA

5PCS DFPlayer Mini Mp3 Player Board Module Voice Decode Board Support TF Micro SD Card U Disk MP3 WAV WMA Audio Music Compatible with for Arduino

Aideepen 5PCS Mp3 MP3 DFPlayer Mini Player Board Module Voice Decode Board Support TF Micro SD Card U Disk WAV WMA

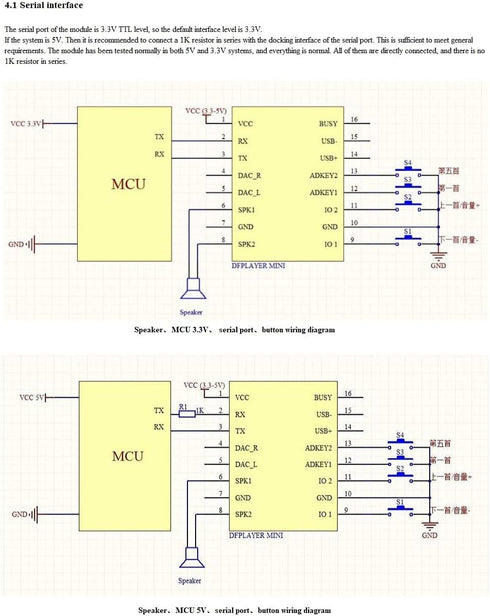

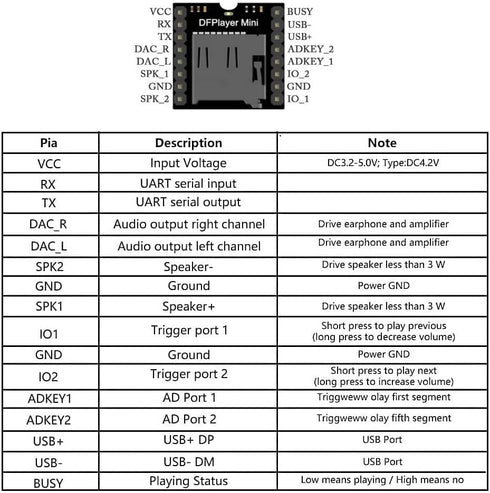

Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Package Included: 5 * DFPlay Mini Mp3 Player Boards VCC: DC 3.2~5.0V (Suggested 5V, don't over 5.2V); GND: Ground RX: UART serial input; TX: UART serial output DAC_R: Right Channel; DAC_L: Left Channel---(Drive earphone and amplifier) SPK_1: Speaker+; SPK_2: Speaker- (Drive speaker less than 3W) IO_1: Trigger port 1---Short press to play previous(long press to decrease volume) IO_2: Trigger port 2---Short press to play next(long press to increase volume) ADKEY_1: AD Port 1 (Trigger play first segment); ADKEY_2: AD Port 2 (Trigger play fifth segment) BUSY: Playing Status (Low means playing/ High means no)

Brand: Aideepen

wav wma, accessories computer, accessories, computers accessories, arduino electronics, wma, 5pcs dfplayer, mp3 player, decode board, support micro, wma audio, arduino Electronics Computers & Accessories Computer Components Internal Components I/O Port Cards

Key Features

• ✓ UpgradeThis is a DFPlayer Mini Mp3 Audio Voice Module, can be connected directly to the speaker.TD5580A chip replacement old YX5200 (Compatibility upgrade
• ✓ Supported Sampling Rates (kHz):8/11.025/12/16/22.05/24/32/44.1/48;24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB.
• ✓ The DFPlayer Mini perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. Besides, it also supports TF card with FAT16, FAT32 file system.

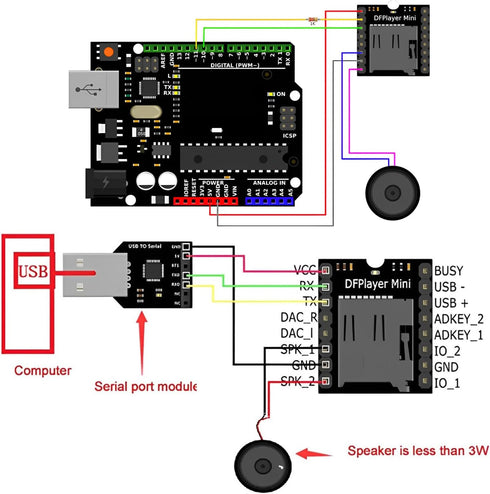

• ✓ This mini mp3 player Module support battery power supply, speaker, keypad can be used alone, or through the serial port control, as the Arduino UNO or any microcontroller with a serial port module.
• ✓ Supports up to 32GB TF card, 32GB USB flash drive, 64MB NORFLASH, and supports up to 100 folders for audio data, with 255 tracks allocated to each folder. 30 levels of volume adjustable, 6 levels of EQ adjustable.

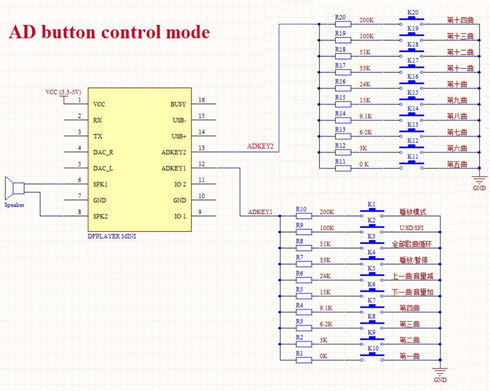

• ✓ A variety of control modes, I/O control mode, serial mode, AD button control mode.-->If you need any questions, please feel free to contact us.

Product Details

• ✓ Item Weight: 0.03 Kilograms
• ✓ Model Number: 70109375
• ✓ Color: Silver
