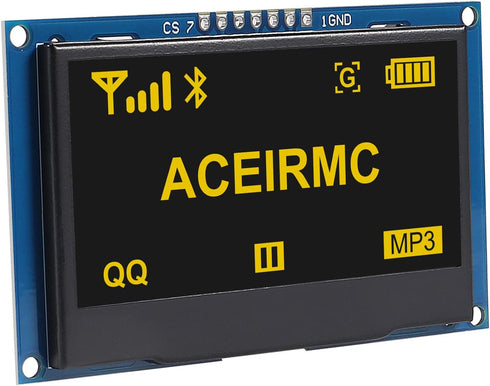

ACEIRMC 2.42 inch 128x64 SSD1309 7 I2C R3 OLED LCD Display Module Pin SPI/IIC Serial Interface for Arduino UNO (Yellow)

ACEIRMC 2.42 inch 128x64 OLED LCD Display Module SSD1309 7 Pin SPI/IIC I2C Serial Interface for Arduino UNO R3 (Yellow)

ACEIRMC 2.42 inch 128x64 SSD1309 7 I2C R3 OLED LCD Display Module Pin SPI/IIC Serial Interface for Arduino UNO (Yellow)

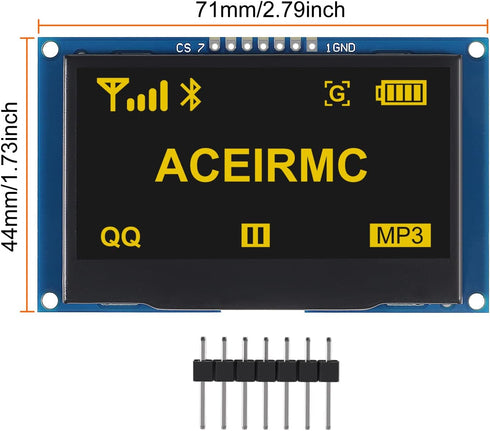

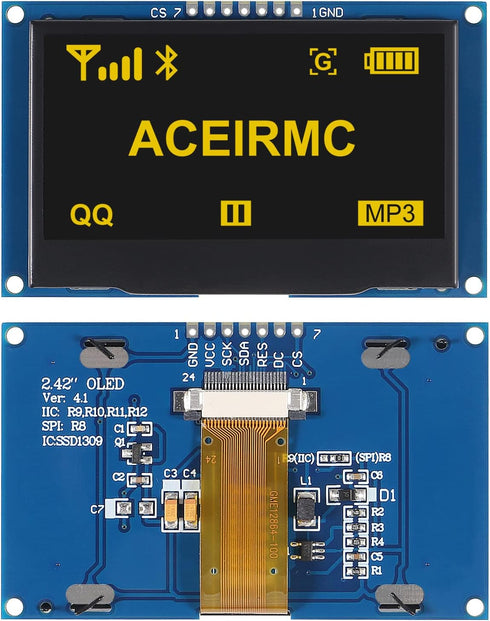

Driver chip SSD1309 Support interface IIC/SPI Resolution 12864 Display size 2.42 inches Display color: white/blue/yellow/green Module size 7143.5 (mm) Glass size 60.537.00 (mm) Display area 55.0227.49 (mm) Drive voltage 3.3-5V Number of pins 7PIN Viewing angle >160 Working temperature -40~70 Storage temperature -40~80 SPI Interface Definition: 1 GND - Power Ground 2 VDD - Power Supply Positive (2.8-5.5V) 3 SCK - Clock Line 4 SDA - Data Line 5 RES - Reset Line 6 DC - Data/Command 7 CS - Chip Select Package Contents: 1 x Display Module

Brand: ACEIRMC

uno yellow, oled, 128x64, lcd, computer components, iic i2c, lcd display, oled lcd, display, iic, serial, pin spi Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ 2.4" 2.42 inch 128x64 OLED LCD Display Module SSD1309 12864 7 Pin SPI/IIC I2C Serial Interface for Arduino UNO R3 C51
• ✅ Driver IC: SSD1309
• ✅ Diagonal Screen Size: 2.42 inch

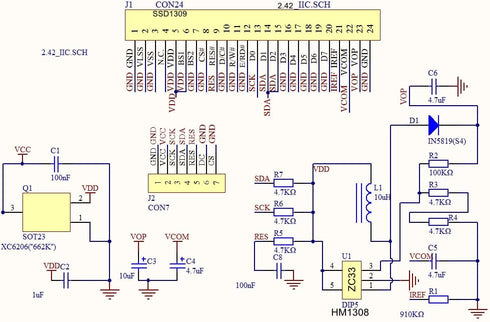

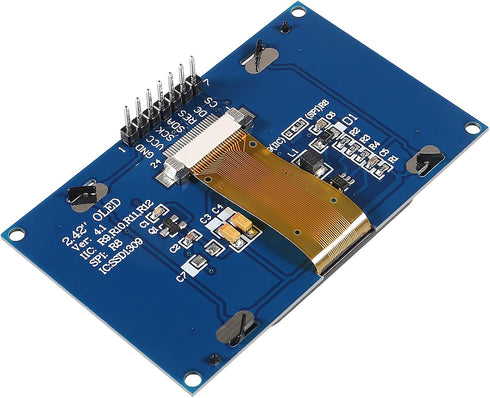

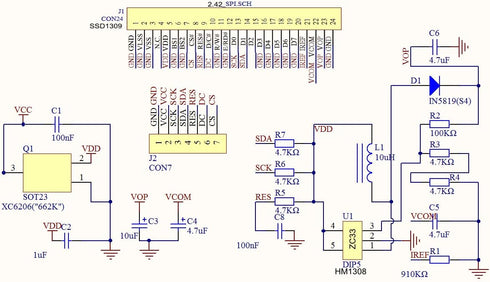

• ✅ SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5
• ✅ For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
