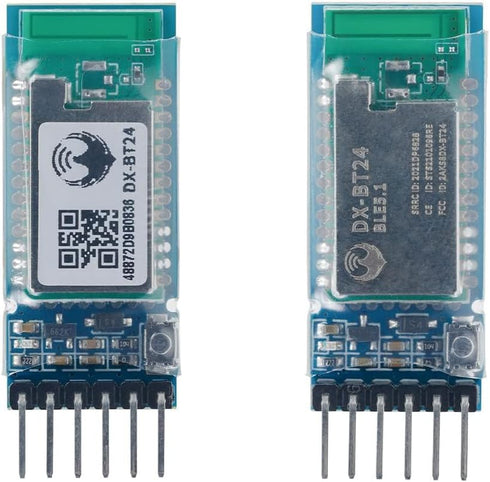

A Pair of DX-BT24-A Bluetooth Module BLE 5.1 for Arduino, Wireless Bluetooth RF Transceiver Serial Communication Module

A Pair of DX-BT24-A Bluetooth Module BLE 5.1 for Arduino Master and Slave Wireless Bluetooth RF Transceiver Serial Communication Bluetooth Pass Through Module Compatible with Android/iOS

A Pair of DX-BT24-A Bluetooth Module BLE 5.1 for Arduino, Wireless Bluetooth RF Transceiver Serial Communication Module

You can find out all resources related to DX-BT27-A bluetooth module from our offical website. Including testing software, drivers, software reference source code, technical manuals, AT Command documents. Step 1: Connect DX-BT24-A Slave module to the device through the TTL interface; Step 2: Install our Android testing app onto the Android phone, open the transmission interface for searching and connecting; Or download "LightBlue" or our company's "DX-SMART" app from the Apple Store and use it for data transmission testing Step 3: After searching for the Bluetooth name, click on the name to connect; Or scanning the device QR code by "ScanConnect", a "drop" sound indicates successful connection; Step 4: After connecting, data exchange can be carried out.

Key Features

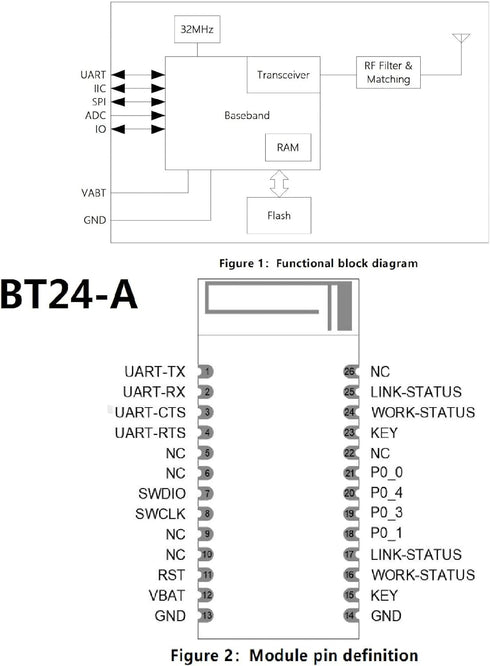

• ✅ Feature: DX-BT24-A Bluetooth module uses the DIALOG 14531 chip. Bluetooth BLE 5.1. Support AT commands, users can change the serial port baud rate, bluetooth name and other parameters. The module is mainly used for short-range(about 15m in open area) data wireless transmission.If you need Long range module,please purchase DX-BT27-A bluetooth module.

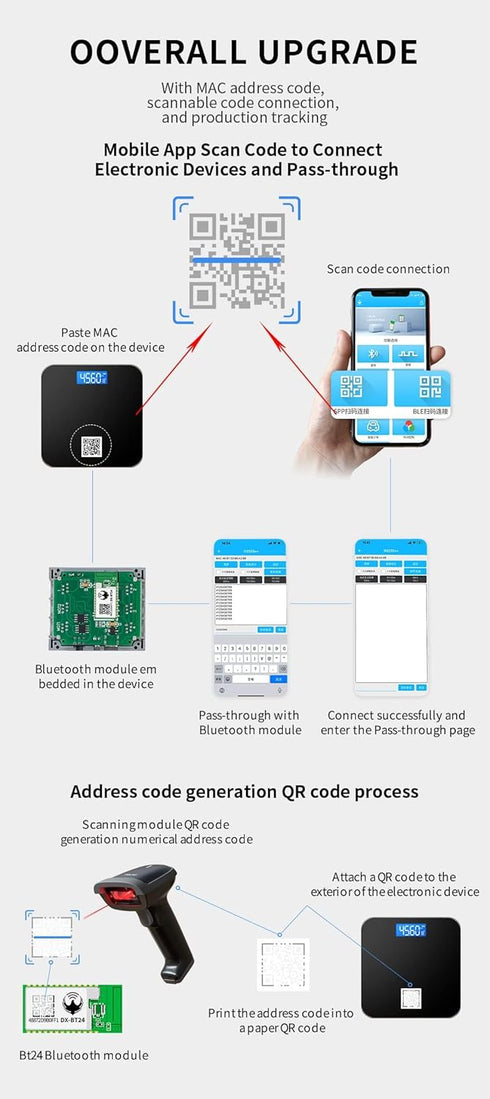

• ✅ Multiple Connection Methods: 1. Can search connection Manually; 2. With MAC address code, it can scan QR code for connection. Compatible with Android/iOS(iPhone). You can quickly add the Bluetooth feature to your Arduino project and then you can use your Android phone or iPhone to control some devices.

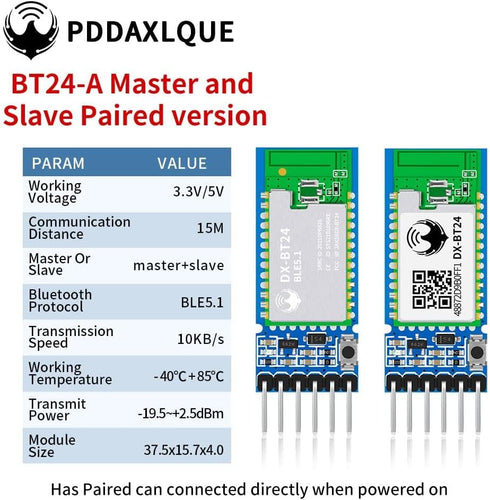

• ✅ Note: The master module can only be connected with the slave modules sold in our store, and cannot be connected with any other model Bluetooth module.Working Voltage 3.3V to 5V. Module serial port default parameters: 9600bps/8/n/1 (baud rate/data bits/no parity/1)

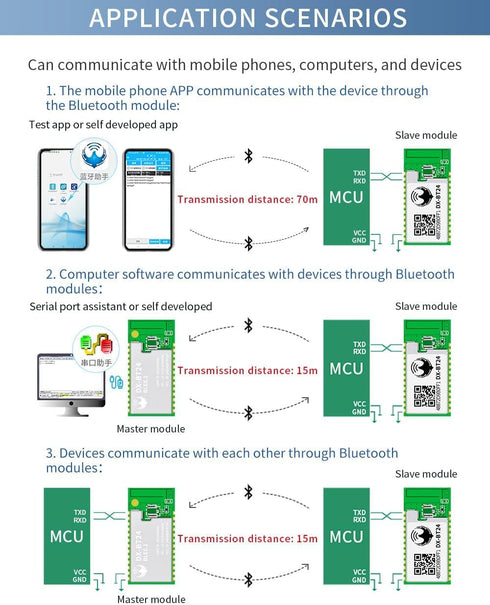

• ✅ Notice: Because this module is BLE 5.1 protocol module, so the PC side cannot use the built-in bluetooth or bluetooth adapter for communication.If you need to communicate with slave module by computer, it requires the master module to connect to the computer and use the computer serial port assistant to communicate.You can find out them on our offcial website
• ✅ Technical Support: Out of the box, plug and play. You can find out testing softwares,user's manuals,devlopment documents,and all resources related to this bluetooth module on our offical website. If you encounter any issues, please contact us by Amazon email, and we will resolve your issues within 24 hours
