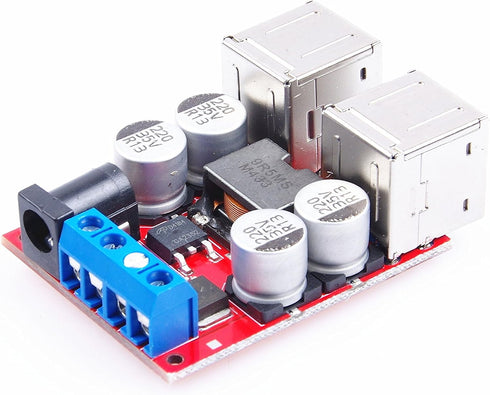

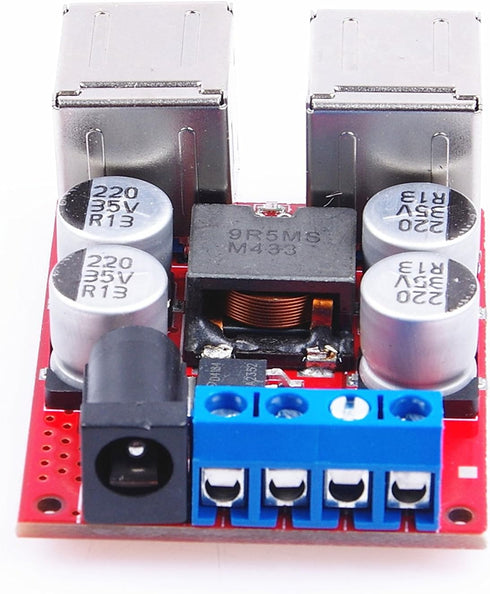

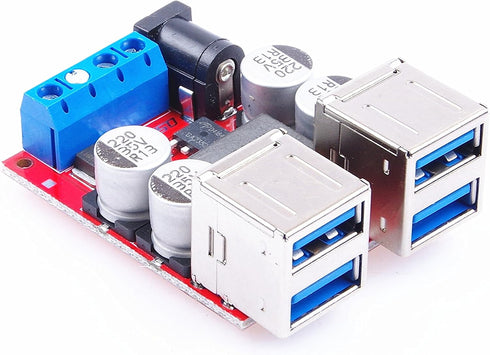

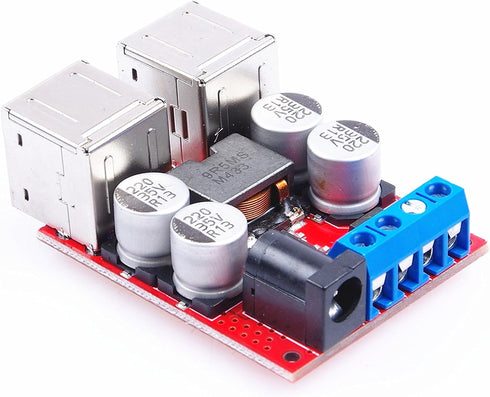

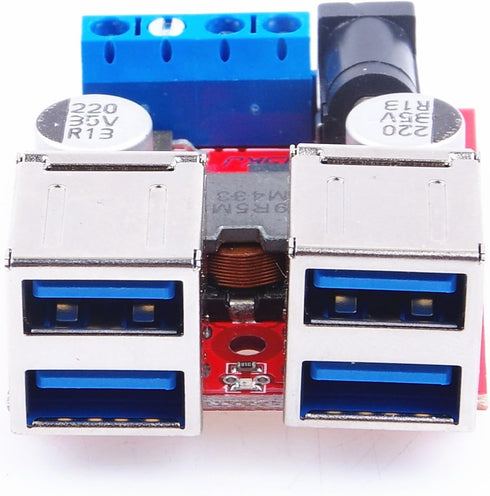

9V 12V 24V (8V-35v) 5V 5A 8A 4-USB DC-DC USB Charging Module to Port at The Same time Output for Mobile Phones, Digital

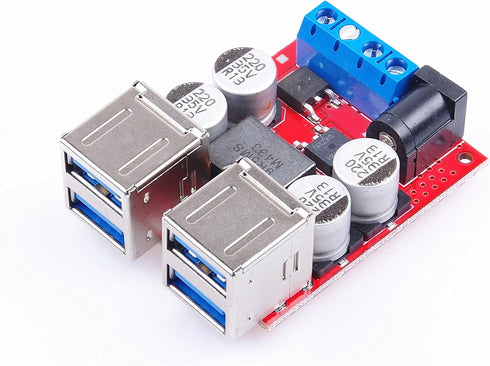

DC-DC USB Charging Module 9V 12V 24V (8V-35v) to 5V 5A 8A 4-USB Port at The Same time Output for Mobile Phones, Digital Cameras, Navigators, Driving Recorder, etc.

9V 12V 24V (8V-35v) 5V 5A 8A 4-USB DC-DC USB Charging Module to Port at The Same time Output for Mobile Phones, Digital

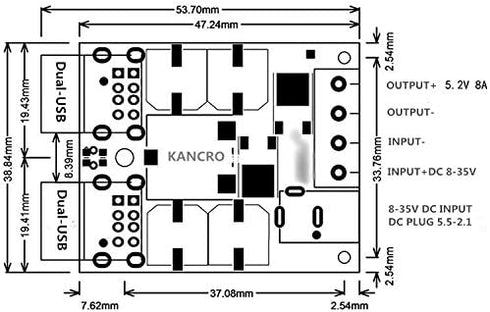

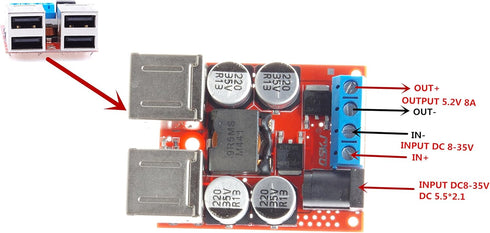

Input voltage: DC 8-35V; Input current: 5.5A; Output voltage: 5.2V; Output current: 8A (4xUSB output, maximum 8A, a single USB output maximum 2A); Dynamic response speed: 300us (load flow changes 5%); Conversion efficiency: 95% (12V to 5.2V3.5A measured efficiency with the pressure and load size.); Load regulation: 0.2-0.3% (10% -50% load 12V input measured); Ripple & Noise: 120mVP-P (20MHz bandwidth of 12V to 5.2V3A measured); Switching frequency: 100KHz; No-load current: 18mA (12V car 5V measured); Wiring: IN input, OUT input, terminals, DC outlet; Fixing method: M3 * 1 M2 * 2; Net weight: 36 g; Support Device : A variety of input and output, support for terminal input, DC input, output support 4 * USB output, the output terminal 5V. Package Included: 1x8A DC-DC Buck Power Module

Brand: KNACRO

navigators, 24v 35v, charging module, 12v 24v, port same, usb port, digital cameras, 12v, etc electronics, driving, 24v, time output Electronics Power Accessories

Key Features

• ✓ Non-isolated synchronous rectification step-down power supply module, 4-Channel independent dedicated charge management IC, can effectively support a variety of mobile phones for maximum charge compatible with Apple / Andrews products
• ✓ Support 4-Channel USB at the same time 2A current charging, fast charging current, the total output current up to 8A.
• ✓ DC8-35V wide input voltage, the input with reverse polarity protection to maximize the conversion efficiency and reduce losses. Output with overvoltage protection.
• ✓ With 4 high-quality chip capacitors, a large capacity MLCC capacitor, the output ripple is lower.
• ✓ High-quality double-plated gold USB port, life is 2 times the normal USB.<

Product Details

• ✓ Package Dimensions: 6.06 x 4.21 x 0.83 inches
• ✓ Item Weight: 1.27 ounces
