6PCS AM312 Mini Human Sensor Module, HC-SR312 PIR Motion Detector, DC 2.7 to 12V with 10pin Wire

6PCS AM312 Mini Human Sensor Module, HC-SR312 Pyroelectric Infrared PIR Motion Automatic Detector DC 2.7 to 12V with 10pin Wire for Arduino

6PCS AM312 Mini Human Sensor Module, HC-SR312 PIR Motion Detector, DC 2.7 to 12V with 10pin Wire

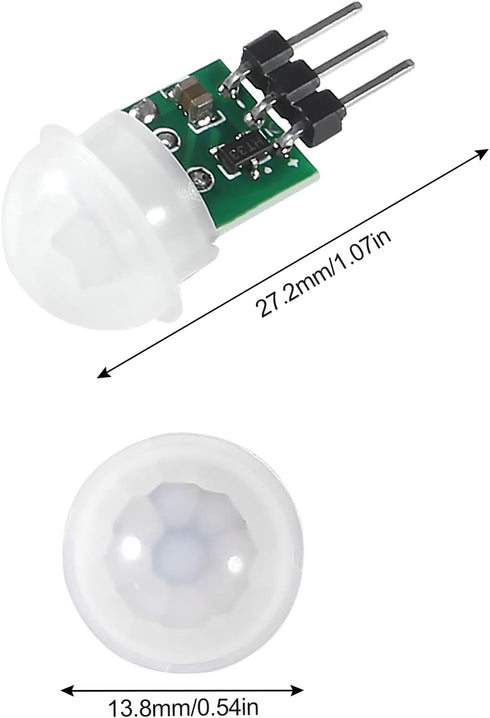

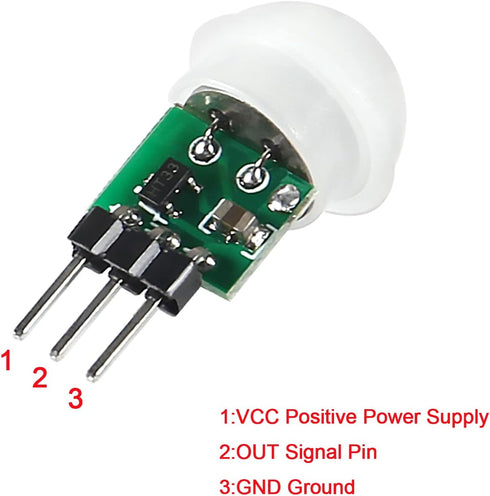

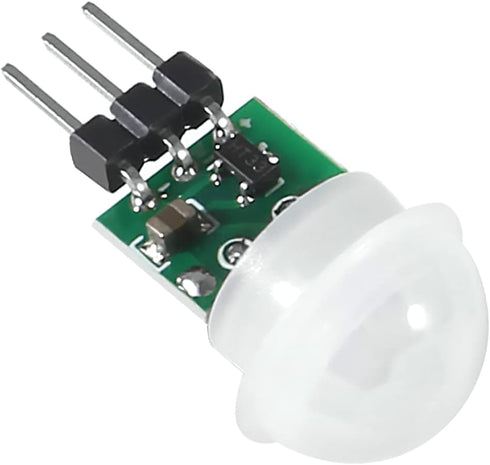

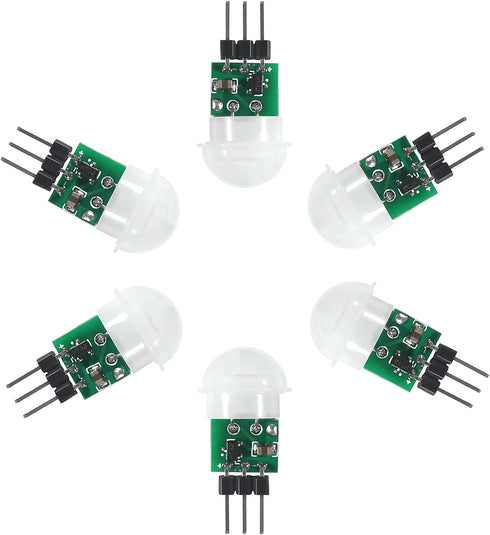

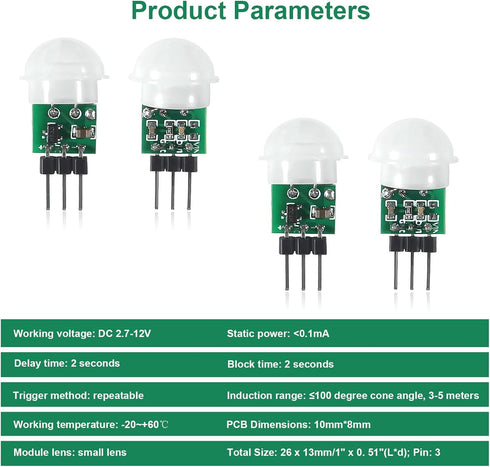

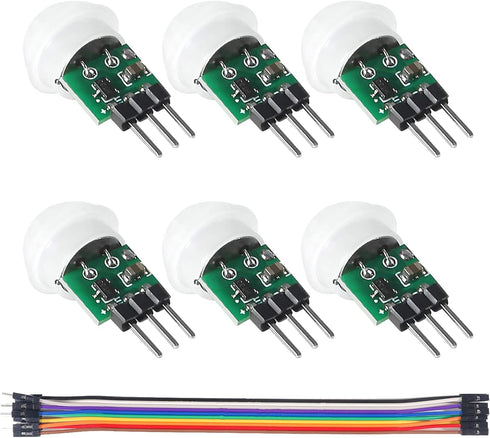

Features: AM312 body sensors module. Immunity enhancement, internal use of digital signal processing, direct high-low output. A passive body based on the digital intelligent infrared technology. Specification: 1. Working voltage: DC 2.7-12V 2. Static power consumption: less than 0.1mA 3. Delay time: 2 seconds 4. The blocking time: 2 seconds 5. Sensing range: 100 degree cone angle, 3-5 m;(required depending on the lens) PCB Dimensions: 10mm x 8mm Total size: Approx. 12mm x 25 mm Module Lens: Small lens Package Included: 6 x Mini Human Sensor Module 1 x 10Pin Wire Female to Male

Key Features

• ✅ Working Voltage:DC 2.7V-12V;Max Static current:1mA;delay time: 2S;Blockade time: 2S;Sensor angle:100 Degree;Sensor distance: 3-5m.
• ✅ Repeatable Trigger Mode:When people enters the sensing range, the sensor can detect, so the automatic output high level. The sensor will continue to output a high level if the person does not leave the sensing range;After the person leaves, the switch automatically closes the load after a delay.
• ✅ Small and Useful:Small and powerful motion sensor that can be mounted on ESP8266 or 32 boards for home automation, works well together.
• ✅ Easy to Use:The AM312 Mini motion detector module takes up less space and is easily incorporated into projects.
• ✅ Wide Application:With high sensitivity and reliability,it is widely used in auto-sensing electrical equipment. Suitable for human body sensors toys,human body sensor lighting, industrial automation and control.

✅ Product Dimensions: 0.2 x 0.2 x 0.2 inches
