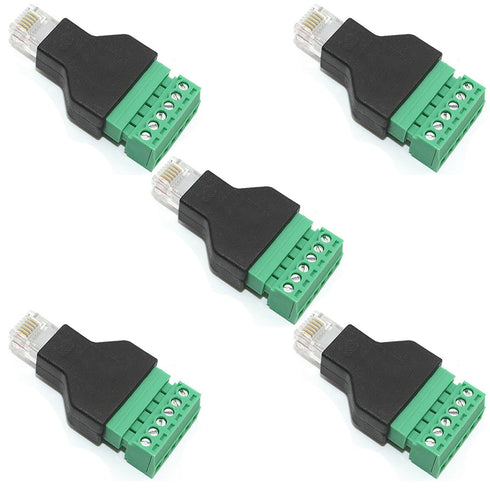

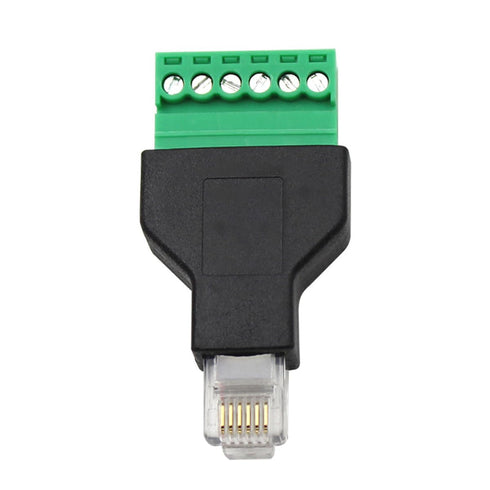

5Pcs RJ11 Male to 6 Pins Screw Terminal Block Adapter for Cat3 Telephone Handset Cords Extender, RJ12 6P6C Modular

5Pcs RJ11 Male to 6 Pins Screw Terminal Block Adapter for Cat3 Telephone Handset Cords Extender, RJ12 6P6C Modular Connector

5Pcs RJ11 Male to 6 Pins Screw Terminal Block Adapter for Cat3 Telephone Handset Cords Extender, RJ12 6P6C Modular

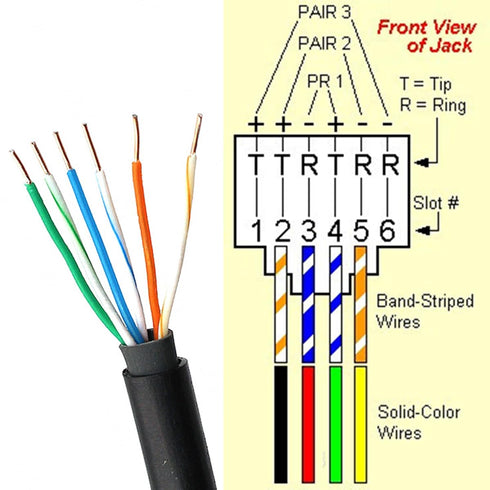

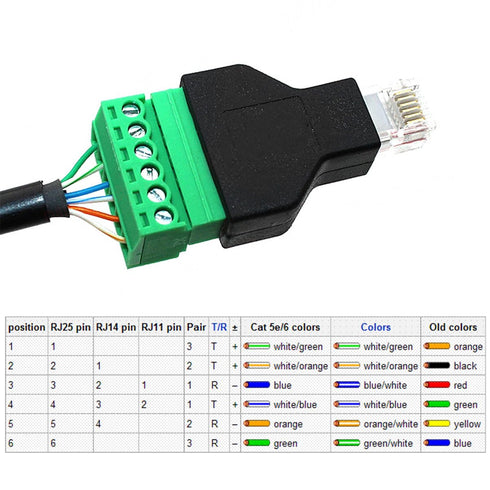

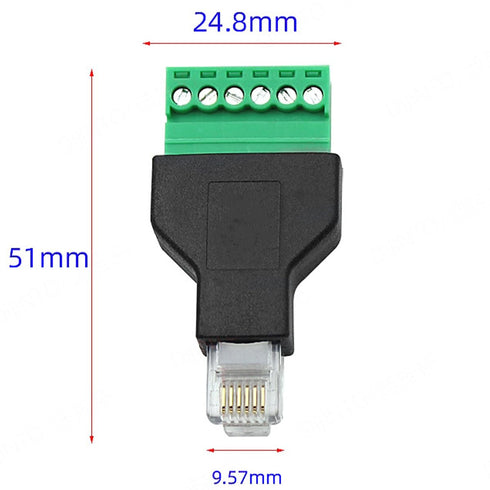

Strictly, Registered Jack refers to both the female physical connector (modular connector) and specific wiring patterns, but the term is often used loosely to refer to modular connectors regardless of wiring, gender, or use, commonly for telephone line connections, but also for Ethernet over twisted pair, resulting in confusion over the various connection standards and applications. For example, the six-position physical connector, plug and jack, is identically dimensioned and inter-connectable, whether it is wired for one, two, or three lines. RJ11, RJ14, and RJ25 all use the same six-position modular connector, thus are physically identical except for the different number of contacts (two, four and six respectively) allowing connections for one, two, or three telephone lines respectively. Specifications: Material: Plastic & Metal Connectors 1: RJ11 6P6C Male Plug Connectors 2: 6Pin Screw Terminals Wire range: AWG26 18 Pin: 6way/pin Size 51mm*24.8mm*10.2mm Color: Black+Green Rated voltage: 100V. Rated current: 0.5A / per pin. Operating Temperature: -20 C to 50 C Terminal block specifications: Pitch:2.54mm Wire range: 26 ~ 18AWG. Strip length: 5mm. Screws: M2, steel, Cr3+ Zn plated. Pin header and Cage: Brass. Package Includes: 5 x RJ11 6P6C to 6Pins Screw Terminal Adapter

Key Features

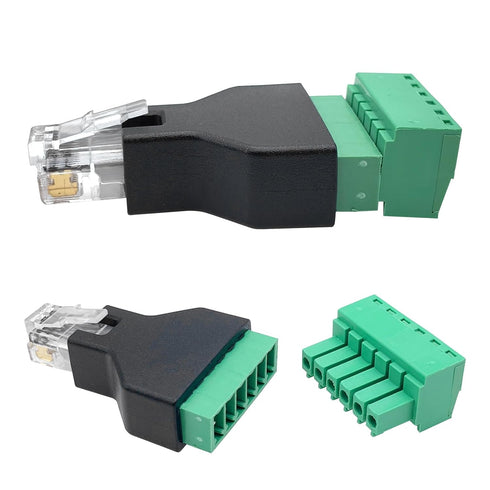

• ✅ Connectors 1:RJ11 6P6C Male plug , Connectors 2: 6 Pin/Way Female Bolt Screw Shield terminals Pluggable Type jack.

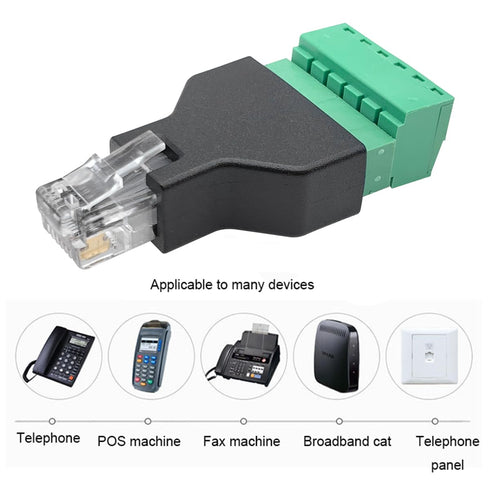

• ✅ Stability: Reliable connection, strong signal stability and reliability. It's most typically installed on telephone handsets and their cordage. Establishes a bridged connection for one telephone line with key telephone system control ahead of line circuit.
• ✅ This is a 6P6C connector (six-position six-conductor), most typically installed on telephone handsets and their cordage. 6P indicates a six-position modular plug or jack. A six-position modular plug with conductors in only the middle two positions is designated 6P2C; 6P4C has four conductors in the middle positions, and 6P6C has all six equipped.
• ✅ RJ11 is generally used as a generic term for this 9.5mm series, using RJ11-6P2C, RJ11-6P4C and RJ11-6P6C respectively to distinguish the number of contacts.

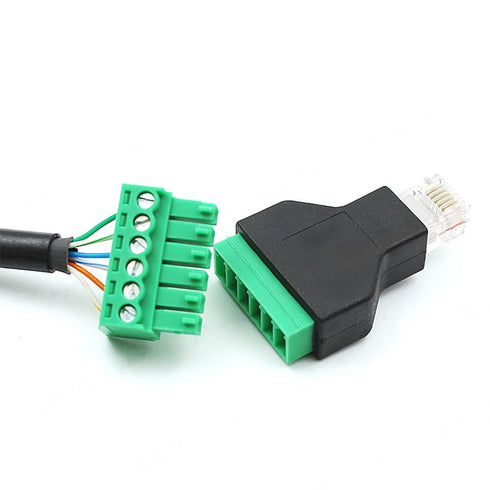

• ✅ Easy to use: No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.

✅ Product Dimensions: 2.01 x 2.01 x 4.02 inches; 3.2 ounces
