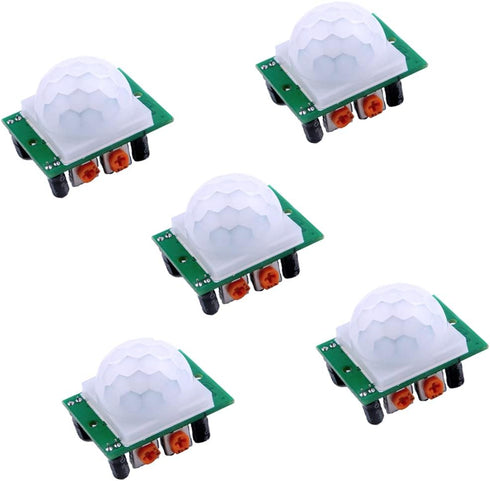

5 Pack HC-SR501 Pir Motion IR Sensor Body Module | Infrared for Arduino

5 Pack HC-SR501 Pir Motion IR Sensor Body Module Infrared for Arduino

5 Pack HC-SR501 Pir Motion IR Sensor Body Module | Infrared for Arduino

Parameter: Condition:100% brand new with good quality Product Type: HC--SR501 Body Sensor Module Operating voltage range: DC 4.5-20V Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger) Delay time: 5-18S(adjustable) the range is (0.xx second to tens of second) Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds Board Dimensions: 32mm*24mm Angle Sensor: <100 cone angle Lens size Sensor Diameter:23mm(Default) Applications: * Security Products * the human body sensors toys * the human body sensor lighting industrial automation and control, etc Use: It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans,automatic washing machine and dryer Machines and other devices,is a hightech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems. Package Included: 5 X HC-SR501 PIR Infared Sensor NOTE: On this retrigger jumper is a solder jumper, and you need solder it by yourself. There are two potentiometers onboard. One is to adjust the sensitivity, and the other is to adjust delay time. Also there are two trigger mode. One is Single trigger mode, which means that delay is started immediately upton detecting motion, and continued detection is blocked. The other is Repeatable trigger mode, timely delay is re-started every time motion is detected. Founded in 2014, DIYmall. Specializes in providing comprehensive solutions for LoRa, IOT/IIOT, Audio, Automation, Smart Home, etc.

Key Features

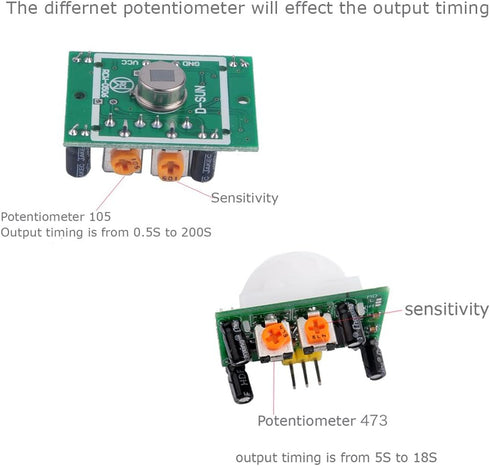

• ✅ Using Potentiometer 105, output timing is from 0.5S to 200S
• ✅ Widely used in:Security Products,human body sensors toys,human body sensor lighting industrial automation and control, etc

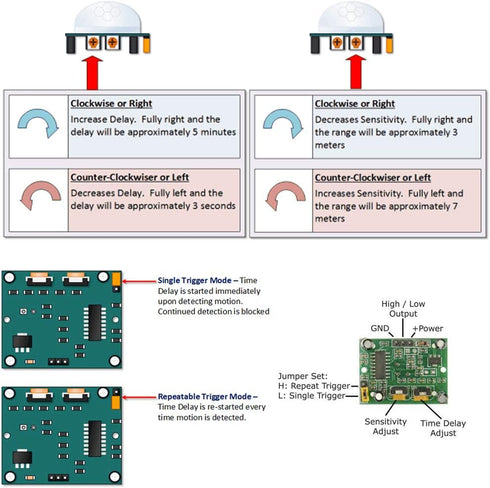

• ✅ NOTE: On this retrigger jumper is a solder jumper, and you need solder it by yourself
• ✅ Pls note that there is no IR emitter in this module, the principle of PIR sensor is to detect the infrared radiation emitted by the human body, it only have a IR sensor (cell)
• ✅ Package Included: 5 X HC-SR501 PIR Infared Sensor

✅ Product Dimensions: 1.18 x 0.98 x 0.79 inches

✅ Color: HC-SR501
