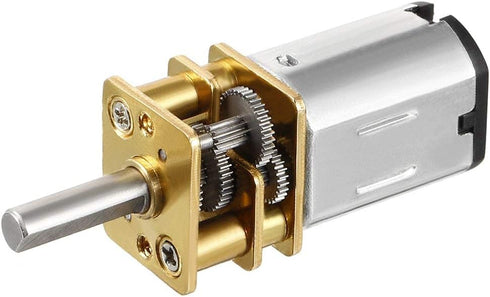

3V 750RPM N20 DC High Torque Speed Reduction Motor with Metal Gearbox Motor for DIY RC Toys

DC 3V 750RPM N20 High Torque Speed Reduction Motor with Metal Gearbox Motor for DIY RC Toys

3V 750RPM N20 DC High Torque Speed Reduction Motor with Metal Gearbox Motor for DIY RC Toys

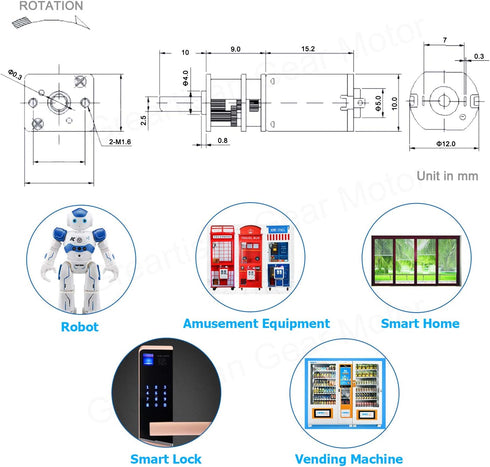

Product Advantage: Small size dc gear motor with low speed and big torgue! 12mm gear motor provide 0.1Nm torque and more reliable! DC gear motors can match encoder, 3ppr! 8 kinds of Reduction ratio: 10,30,50,100,150,200,298,380! Specifications: Rated Voltage: DC 3V Reduction Ratio: 1:10 No-Load Speed: 750RPM Rated Torque: 0.02Kg.cm Rated Current: 80mA D Shaped Output Shaft Size: 2.5*9.2mm (0.098" x 0.36") (D*L) Gearbox Size: 9 x 12 x 10mm (0.35 x 0.47 x 0.39inch) (L*W*H) Motor Size: 15.2 x 12 x 10mm (0.598 x 0.47 x 0.39) (L*W*H) Net weight: 9g Application: Electronic door lock, intelligent switch, steam hair straightener (water jet straight hair outlet), label stripper, intelligent wear, intelligent machine 3D printing equipment products, curling device, safe, electric screwdriver, display frame, etc. Packages: 1 x Mini DC Geared Motor PLEASE NOTE: 1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline. 2.Handling motors: Gently, as far as possible the use of motor shell part. 3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction. 4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out. 5.Motor storage: -- Storage temperature: 0 - 40; -- Storage humidity: 15% -90% RH; -- Avoid placing in high temperature, high humidity and corrosive gases. 6.Motor use temperature: 0 - 70

Brand: Greartisan

plant driveline, systems, systems electric, controlled vehicle, electric motors, reduction, motors, motor metal, vehicle parts, n20 high, toys, diy toys Remote & App Controlled Vehicle Parts Power Plant & Driveline Systems Electric Motors & Parts Complete Motors

Key Features

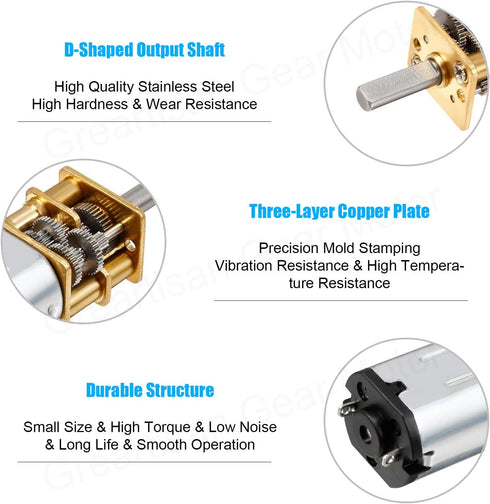

• ✓ Imported Steel PlateAfter precision machining of 7 kinds of lathes, complete with four secondary auxiliary processes, high precision and customizable.
• ✓ Three-layer Copper PlateIt has good wear resistance, high temperature resistance and vibration resistance through continuous stamping with precision molds.
• ✓ Processing TechnologyM0.15 micro module gear, clock gear technology, after six processing, high precision, good reliability, can guarantee stability under high life.
• ✓ High Temperature ResistanceHigh quality black plastic material, double-riveted riveting to prevent falling off at high speed.
• ✓ Greartisan Gurantee We only offer high quality motors! Any quality issues, please feel free to contact our customer service!

Product Details

• ✓ Item Weight: 9 Grams
• ✓ Material Type: Metal
