2PCS HC-05 Bluetooth Module, RF Wireless Transceiver for Integrated Serial Port Communication

2PCS HC-05 HC 05 Bluetooth Module RF Wireless Bluetooth Transceiver Master Slave Integrated Serial Port Communication BT Module

2PCS HC-05 Bluetooth Module, RF Wireless Transceiver for Integrated Serial Port Communication

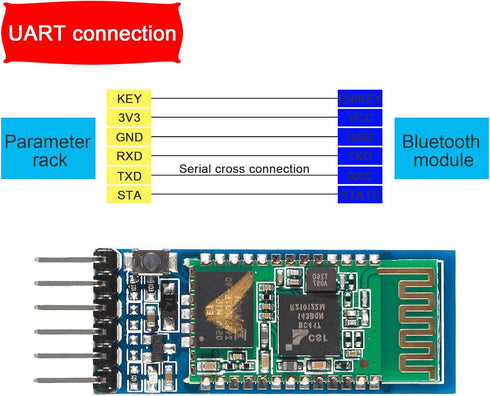

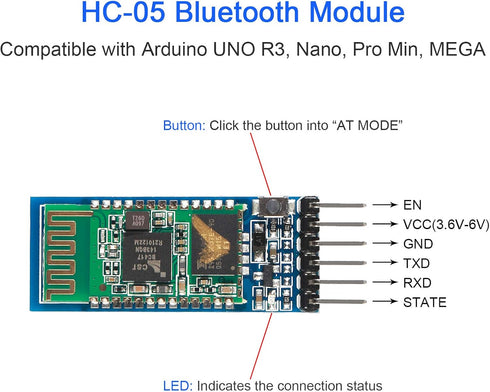

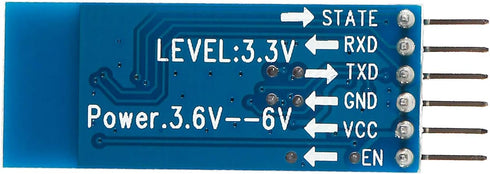

The HC-05 Bluetooth module is Slaveand master two in one module. Module parameters: 1.Input voltage: 3.6V-6V 2.Working voltage: 3.3V 3.The module default baud rate is 4800, the default pairing password is 1234, the default name is HC-05 4.Leads 6 feet: EN/VCC/GND/RXD/TXD/STATE (Bluetooth state leads, not connected output low level, the output high level after connection) 5.With the connection status indicator, LED flash indicates no Bluetooth connection; Led slow flash indicates enter at command mode 6.On-board 3.3V voltage regulator chip, input voltage DC 3.6V-6V; When not paired, current about 30mA (due to LED lights flashing, current in the state of change); After the pairing succeeds, the current is about 10mA 7.Keep pressing the reset button and power on the Bluetooth module to enter AT mode. Wiring method: VCC: Connect the power supply positive GND: Connecting the cathode RXD: The receiver, the Bluetooth module receives data from other devices, and the sending end TXD of the other devices normally TXD: Send end, Bluetooth module sends data to other equipment; the receiving end RXD of the other equipments normally En: To enable the end, need to enter the at mode when 3.3V Note: 1.this item doesn't works with iOS. 2.Input power supply 3.3~6V, Prohibit more than 7V 3.If the circuit is reversed, the module will not work. Application: HC 05 Bluetooth module can use for Bluetooth feature project.With 6 Pin dopunt cable of HC-05 Wireless BT Module, you can easily connect this HC-05 Bluetooth module Package included: 2* HC-05 Bluetooth Module

Key Features

• ✅ Master-slave integration 2-IN-1 HC-05 Module: the original chip corresponds to the master-slave integration function. Master-slave integration can switch between master and slave modes. Through AT command setting, you can select master mode or slave mode.
• ✅ AT Setting: Press the button and power on the module to enter the AT mode. AT commands are executed only in AT mode, which is easy to use. Default baud rate:4800,Default pin:1234, the default name is HC-05.
• ✅ On-board 3.3V voltage regulator chip, input voltage DC 3.6V-6V; When not paired, current about 30mA (due to LED lights flashing, current in the state of change); After the pairing succeeds, the current is about 10mA
• ✅ Working status indicator: Fast flashing LED means no Bluetooth connection, slow flashing means entering AT mode, double flashing means Bluetooth is connected and the port is opened.
• ✅ Tips:Do not connect the power supply to the signal pin, otherwise the module will be directly damaged. The input voltage must not exceed 7V. (Note: this item doesn't works with iOS.)
